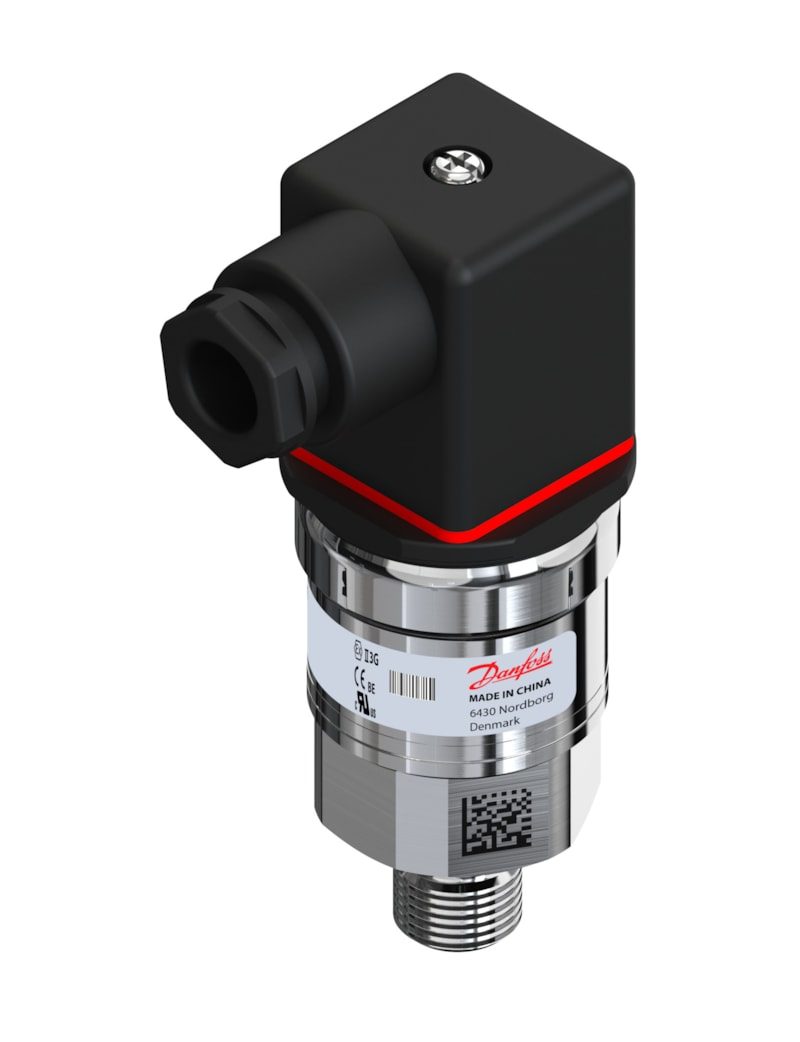

Danfoss MBS 1750 Pressure Transmitter 0-400 bar 4-20mA G1/4 (060G6111)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 1750 general-purpose pressure transmitter with integrated pulse snubber, range 0-400 bar, 4-20 mA output, G1/4 (DIN 3852-E) pressure connection, Pg9 plug (DIN 43650-A / EN 175301-803-A). Enclosure and wetted parts AISI 316L stainless steel. Code no. 060G6111; specification key MBS 1750-3611-1GB04. Supply 9-32 V DC. The pulse snubber protects against cavitation, liquid hammer and pressure peaks in hydraulic and industrial systems.
Specifications
- Part number
- 060G6111
- HS code
- 9026.20
- Material
- AISI 316L stainless steel (enclosure and wetted parts)
- Pressure rating
- 0-400 bar
- Temperature range
- -40 to +85 degC
- IP rating
- IP65
Standards
- EN 61326
- DIN 3852-E
- EN 175301-803-A
Approvals
