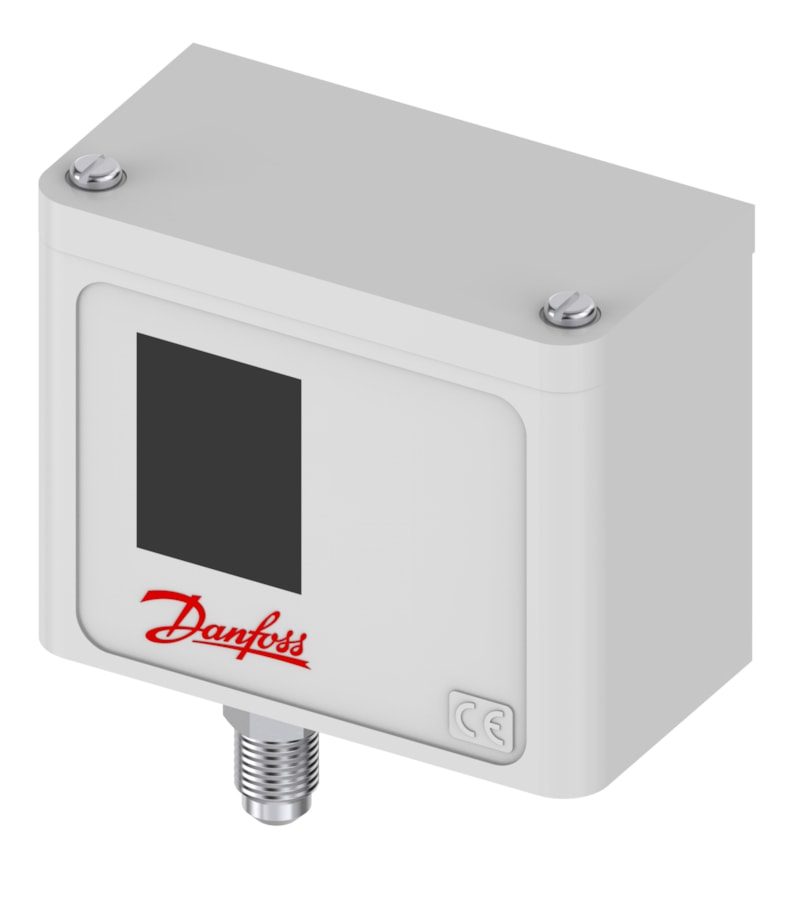

Danfoss KP7W pressure switch, 8 to 32 bar, 4-10 bar differential, auto reset, SPDT, 1/4 in flare
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP7W single (high) pressure switch, code 060-119066. Regulating range 8 to 32 bar, wide differential range 4 to 10 bar, automatic reset, SPDT snap-action contact. 1/4 in flare (male) connection, IP44 enclosure. Used for high-pressure-controlled condenser-fan cycling and HP protection in refrigeration and air-conditioning. Bellows pressure element. Supplied in a multi-pack of 36.
Technical Specifications
- Type
- KP7W single pressure switch
- Code number
- 060-119066
- Regulating range
- 8 to 32 bar
- Differential range
- 4 to 10 bar
- Reset
- automatic
- Contact system
- SPDT (single-pole double-throw)
- Contact load
- AC-1 16 A/400 V; AC-15 10 A/400 V; AC-3 16 A/400 V; DC-13 12 W/220 V; LR 112 A/400 V
- Connection
- 1/4 in flare (male), DIN 8906
- Max working pressure
- 35 bar
- Enclosure
- IP44
- Ambient temperature
- -25 to +65 °C (80 °C max 120 min)
- Net weight
- 0.319 kg (gross 0.354 kg)
- EAN
- 5702422048367
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -25 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -13 °F
- Application note
- Not applicable for liquid line
- Approval
- BV
- Burst pressure [bar]
- 140 bar
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 V
- Differential [bar] [max]
- 10 bar
- Differential [bar] [min]
- 4 bar
- Differential [psi] [max]
- 145 psi
- Differential [psi] [min]
- 58 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP44
- Enclosure rating Nema (~)
- 2
- EU RoHS compliance
- Yes
- Fluid Group
- 1
- Identical product
- 060-004166
- In scope of WEEE
- Yes
- Lubricants compatibility
- Oilfree applications
- Max. test pressure [bar] Pe
- 35 bar
- Max. test pressure [psig]
- 510 psig
- Max. Working Pressure [bar]
- 35 bar
- Max. Working Pressure [psig]
- 510 psig
- Oil free refrigerants
- R134a
- PED category
- IV
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 8906
- Pressure connection type
- Flare
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R113
- Regulation range [bar] Pe [max]
- 32 bar
- Regulation range [bar] Pe [min]
- 8 bar
- Regulation range [psig] Pe [max]
- 464 psig
- Regulation range [psig] Pe [min]
- 116 psig
- Reset function
- Auto
- UL approval file name
- E31024
- UL approved refrigerants
- R113
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- 1/4 in flare (SAE 45°) connection, DIN 8906
- Pressure Rating
- max working pressure 35 bar
- Temperature Range
- -25 to +65 °C (80 °C max 120 min)
- IP Rating
- IP44
- HS Code
- 9026.20
Compatibility & Fitment
Refrigeration/AC condenser-fan cycling and high-pressure control; wide 4-10 bar differential, automatic reset. Distinct from the narrow-differential KP5. Verify range and differential before ordering.
