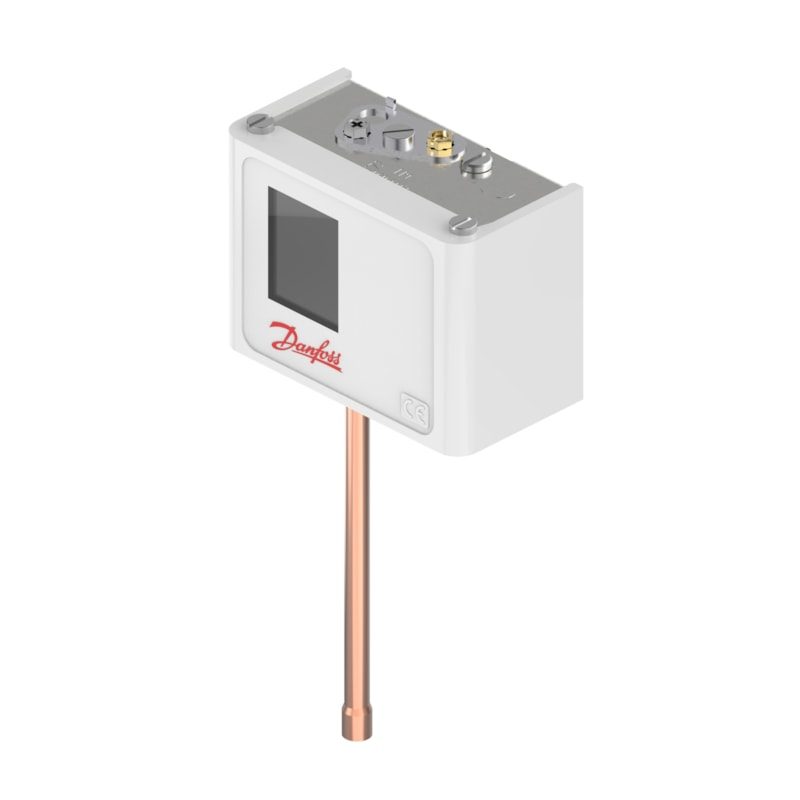

Danfoss KP1 pressure switch, -0.9 to 7 bar, manual minimum reset, SPDT, 6 mm solder ODF

Danfoss KP1 low-pressure switch, code 060-110966. Regulating range -0.9 to 7 bar, fixed differential 0.7 bar, manual minimum reset, single SPDT contact. 6 mm solder ODF (female, EN 1254-1) connection, IP30 enclosure. Low-pressure protection for refrigeration and air-conditioning systems; bellows sensing element. Not for liquid line.

Type

KP1 low-pressure switch Code number: 060-110966 Regulating range: -0.9 to 7 bar (27 inHg to 101 psig) Differential: 0.7 bar (fixed) Reset: manual minimum Contact system: SPDT Connection: 6 mm solder ODF (female), EN 1254-1 Max working pressure: 17 bar (245 psig) Enclosure: IP30 Sensing element: bellows Ambient temperature: -50 to +100 °C Net weight: 0.329 kg (gross 0.37 kg) EAN: 5702428015899 Product group: Switches and thermostats Amb. Temp. Note: 80 °C/176 °F for max 120 min Ambient temperature range [°C] [max]: 65 °C Ambient temperature range [°C] [min]: -25 °C Ambient temperature range [°F] [max]: 149 °F Ambient temperature range [°F] [min]: -13 °F Application note: Not applicable for liquid line Approval: BV CE mark: Yes China RoHS compliance: Yes Contact function: SPDT Contact rating: AC15=10 A, 400 V Differential [bar]: 0.7 bar Differential [psi]: 10 psi EEE category: 5 small equipment (any external dimension < 50 cm) Electrical connection: Rubber cable gland Electrical connection size: 6-14 mm EN 60947 electrical properties: Insulation: 400V EN 60947 wiring properties: Flex, ferrules: 0.5-1.5 mm2 Enclosure rating IP: IP30 Enclosure rating Nema (~): 1 EU RoHS compliance: Yes Fluid Group: 1 In scope of WEEE: Yes Lubricants compatibility: Oilfree applications Max. test pressure [bar] Pe: 20 bar Max. test pressure [psig]: 290 psig Max. Working Pressure [bar]: 17 bar Max. Working Pressure [psig]: 245 psig Oil free refrigerants: R134a PED category: IV Pressure connection size: 6 mm Pressure connection standard: EN 1254-1 Pressure connection type: Solder, ODF Pressure Male/Female: Female Pressure sensing element: Bellows REACH Candidate List substances: Lead (CAS no. 7439-92-1) Refrigerants: R113 Regulation range: 27 inHg - 101 psig Regulation range [bar] Pe [max]: 7 bar Regulation range [bar] Pe [min]: -0.9 bar Reset function: Manual Min UL approval file name: E31024 UL approved refrigerants: R113 UL mark: Yes

Material

Steel/zinc-plated housing; bellows pressure element

Thread Standard

6 mm solder ODF (female), EN 1254-1

Pressure Rating

max working pressure 17 bar (245 psig)

Temperature Range

-50 to +100 °C (ambient)

IP Rating

IP30

HS Code

9026.20
