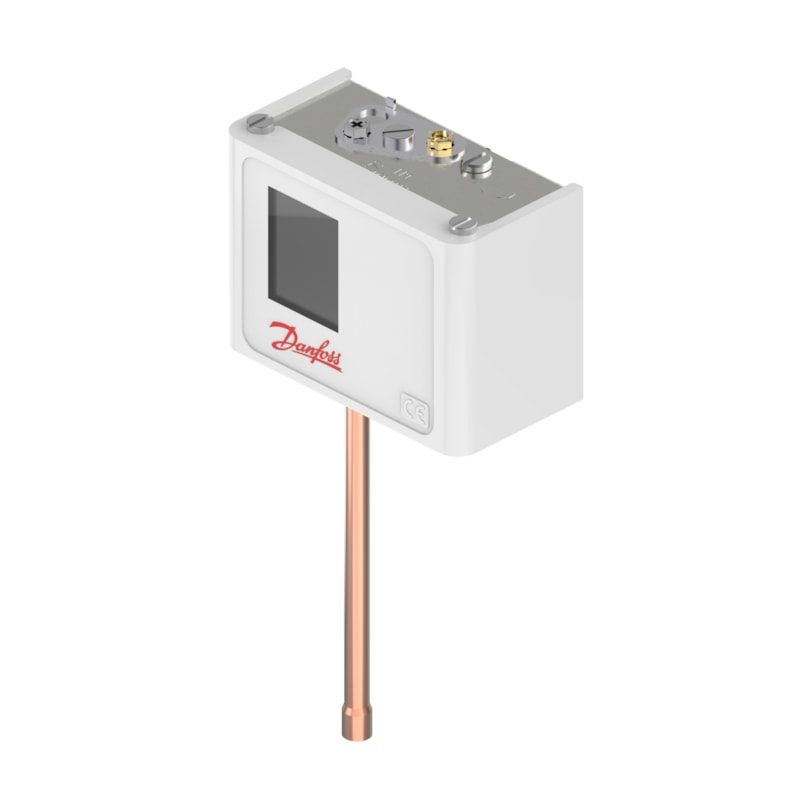

Danfoss KP2 pressure switch, -0.2 to 5 bar, auto reset, SPDT, 6 mm solder ODF
Danfoss · Sensors & Instrumentation · Pressure Switches
Danfoss KP2 single (low) pressure switch, code 060-112366. Regulating range -0.2 to 5 bar, differential range 0.4 to 1.5 bar, automatic reset, SPDT snap-action contact. 6 mm solder ODF (female) connection, IP44 enclosure. Used for low-suction-pressure protection and compressor/condenser-fan start-stop in refrigeration and air-conditioning. Bellows pressure element. Supplied in a multi-pack of 32.
Specifications
- Part number
- 060-112366
- HS code
- 9026.20
- Material
- Steel/zinc-plated housing; bellows pressure element
- Pressure rating
- max working pressure 17 bar
- Temperature range
- -25 to +65 °C (80 °C max 120 min)
- IP rating
- IP44
- Thread standard
- 6 mm solder ODF (female), EN 1254-1
Compatibility
Refrigeration/AC low-pressure (LP) protection and compressor/condenser-fan start-stop; automatic reset. Solder ODF female connection. Distinct from flare-connection KP2 060-112066 — verify connection before ordering.
Standards
- IEC 60529 (enclosure IP rating)
- EU RoHS
Approvals
