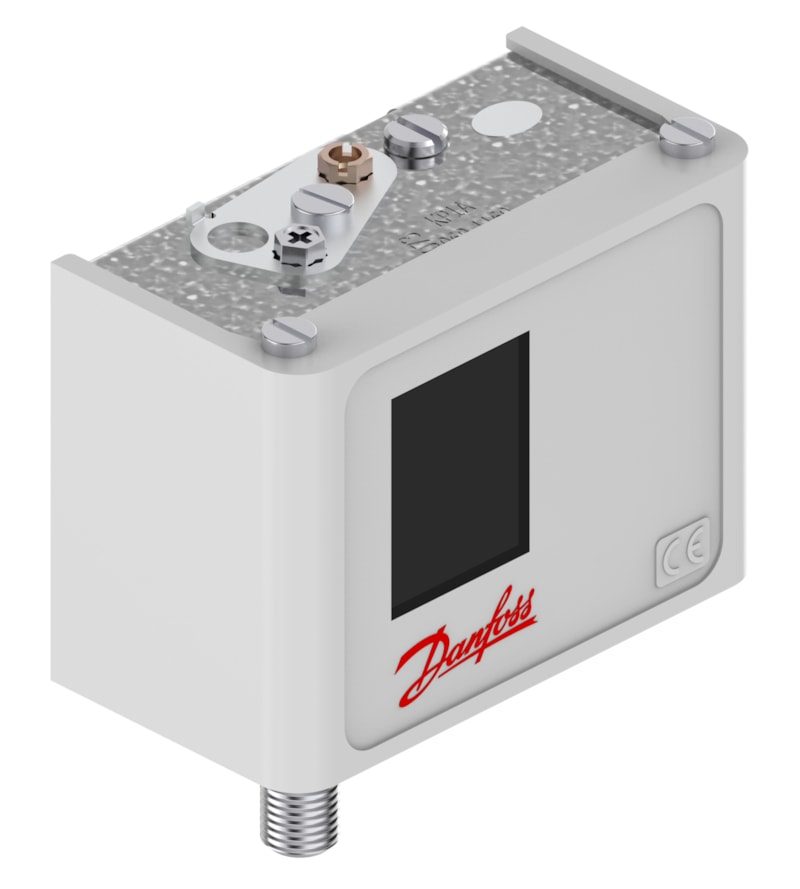

Danfoss KP1A pressure switch, -0.2 to 7.5 bar, auto reset, SPDT, 10 x 0.75 mm connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP1A single (low) pressure switch, code 060-116066. Regulating range -0.2 to 7.5 bar, differential range 0.7 to 4 bar, automatic reset, SPDT snap-action contact. 10 x 0.75 mm (male, ISO 261) connection, IP44 enclosure, PED category IV. The KP1A capillary/connection variant of the KP1 for low-suction-pressure protection and compressor/condenser-fan start-stop in refrigeration and air-conditioning. Bellows pressure element.
Technical Specifications
- Type
- KP1A single pressure switch
- Code number
- 060-116066
- Regulating range
- -0.2 to 7.5 bar
- Differential range
- 0.7 to 4 bar
- Reset
- automatic
- Contact system
- SPDT (single-pole double-throw)
- Contact load
- AC-1 16 A/400 V; AC-15 10 A/400 V; AC-3 16 A/400 V; DC-13 12 W/220 V; LR 112 A/400 V
- Connection
- 10 x 0.75 mm (male), ISO 261
- Max working pressure
- 17 bar
- Enclosure
- IP44
- Ambient temperature
- -25 to +65 °C (80 °C max 120 min)
- Net weight
- 0.431 kg (gross 0.475 kg)
- EAN
- 5702428011808
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -25 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -13 °F
- Application note
- Not applicable for liquid line
- Approval
- BV
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 V
- Differential [bar] [max]
- 4 bar
- Differential [bar] [min]
- 0.7 bar
- Differential [psi] [max]
- 58 psi
- Differential [psi] [min]
- 10 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP44
- Enclosure rating Nema (~)
- 2
- EU RoHS compliance
- Yes
- Fluid Group
- 1
- In scope of WEEE
- Yes
- Lubricants compatibility
- Oilfree applications
- Max. test pressure [bar] Pe
- 20 bar
- Max. test pressure [psig]
- 290 psig
- Max. Working Pressure [bar]
- 17 bar
- Max. Working Pressure [psig]
- 245 psig
- Oil free refrigerants
- R134a
- PED category
- IV
- Pressure connection size
- 10 x 0.75
- Pressure connection standard
- ISO 261
- Pressure connection type
- M
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R113
- Regulation range
- 6 inHg - 108 psig
- Regulation range [bar] Pe [max]
- 7.5 bar
- Regulation range [bar] Pe [min]
- -0.2 bar
- Reset function
- Auto
- UL approval file name
- E31024
- UL approved refrigerants
- R113
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- 10 x 0.75 mm (male), ISO 261
- Pressure Rating
- max working pressure 17 bar
- Temperature Range
- -25 to +65 °C (80 °C max 120 min)
- IP Rating
- IP44
- HS Code
- 9026.20
Compatibility & Fitment
Refrigeration/AC low-pressure (LP) protection and compressor/condenser-fan start-stop; automatic reset. KP1A connection variant (10 x 0.75 mm ISO 261). Verify connection thread before ordering.
