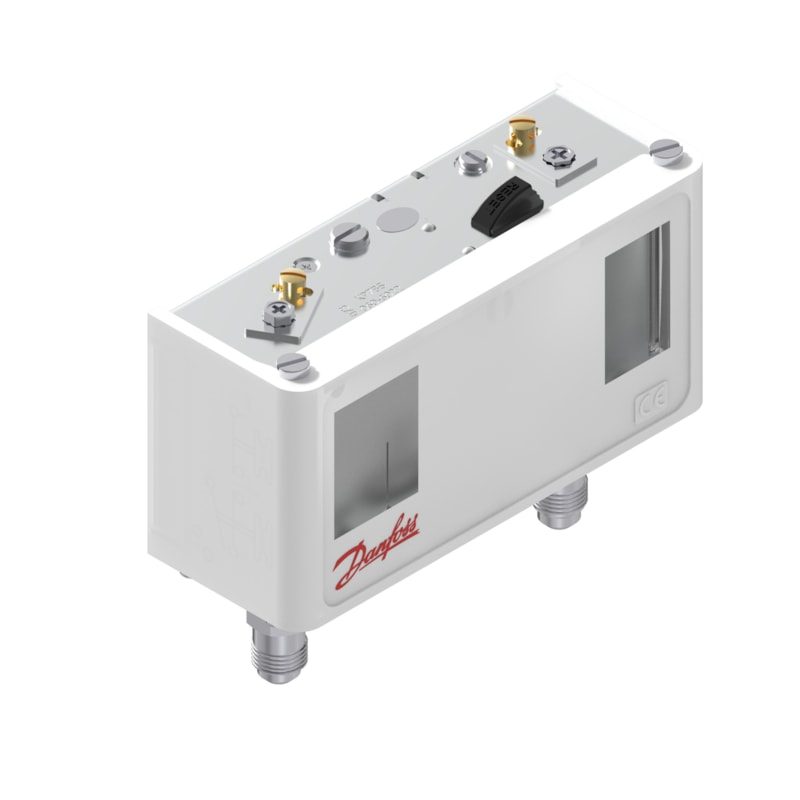

Danfoss KP7ABS Dual Pressure Switch, 8–32 bar, Manual Reset, 2× SPST-NC

Danfoss KP7ABS dual high-pressure safety switch for refrigeration and air-conditioning plants. Both sides adjustable 8–32 bar with a fixed 4 bar differential, contact system 2 × SPST-NC, manual (max) reset on both sides. Maximum working pressure 35 bar, burst pressure 140 bar, bellows sensing element, pressure connection 12 × 1.5 ISO 8434-1 male for 6 mm cutting-ring tube, rubber cable gland 6–14 mm, enclosure IP30, ambient −25 to 65 °C. Approved to CE, PED, LVD, UL873 and marine classification DNV, RINA and RMRS. Suitable for common HFC/HFO refrigerants and R717; not for liquid-line duty.

Type

KP7ABS

Regulation range (both sides)

8–32 bar

Differential (fixed, both sides)

4 bar

Contact system

2 × SPST-NC

Reset

Manual (max), both sides

Max working pressure

35 bar

Burst pressure

140 bar

Pressure connection

12 × 1.5 ISO 8434-1 male (6 mm cutting ring)

Electrical connection

Rubber cable gland 6–14 mm

Enclosure

IP30

Ambient temperature

−25 to 65 °C

Approvals

CE, PED, LVD, UL873, DNV, RINA, RMRS, EAC, CCC

Net weight

0.65 kg

EAN

5702428187114

HS code

9032.20

Manufacturer part number (MPN)

060-508866

Temperature Range

−25 to 65 °C

IP Rating

IP30

HS Code

9032.20
