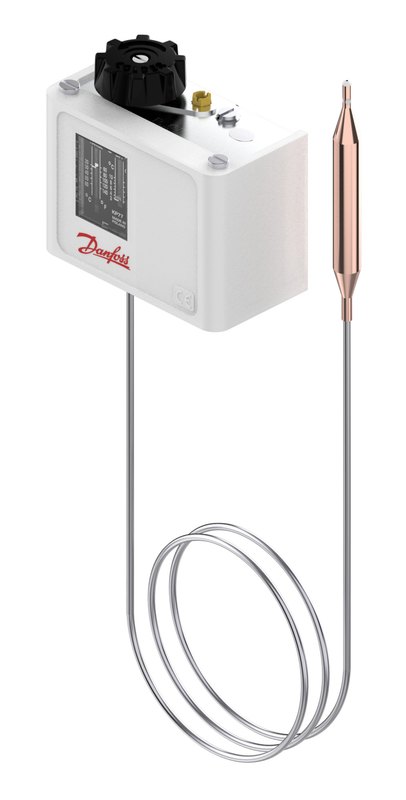

Danfoss KP77 thermostat, 20 to 60 °C, automatic reset, remote bulb (2000 mm capillary)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP77 thermostat, code 060L600066. Regulating range 20 to 60 °C (68 to 140 °F) via rigid (direct-mounted) sensor. Differential 5 K (fixed), adjustable; automatic reset; SPDT snap-action contact. Enclosure IP30; ambient -40 to +70 °C; maximum sensor temperature 130 °C (266 °F). For temperature monitoring, control and limit protection of non-aggressive media. EAN 5702428014830.
Technical Specifications
- Type
- KP77 thermostat
- Code number
- 060L600066
- Setting (regulating) range
- 20 to 60 °C (68 to 140 °F)
- Differential
- 5 K (fixed) (adjustable, min. range)
- Reset
- Automatic
- Contact system
- SPDT
- Sensor
- remote bulb
- Sensor size
- Ø9.5 × 85 mm
- Capillary tube length
- 2000 mm
- Max. sensor temperature
- 130 °C (266 °F)
- Enclosure
- IP30
- Ambient temperature
- -40 to +70 °C
- Electrical connection
- Rubber cable gland (6–14 mm)
- Connection for pocket
- M 18 × 1.5
- Contact rating
- AC15=10 A/400 V; AC1=16 A/400 V; AC3=16 A/400 V; DC13=12 W/220 V; LR=112 A/400 V
- Approvals
- CE, EAC, CCC, DNV, BV, GL, LR, RINA, RMRS, LVD, CMIM, UL
- EAN
- 5702428014830
- Net weight
- 0.349 Kilogram
- Product group
- Switches and thermostats
- Alarm Signal
- Rising
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- BV
- Cap. tube length fraction [in]
- 78 3/4 in
- Capillary tube length [mm]
- 2000 mm
- CE mark
- Yes
- Charge type
- Adsorption
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Differential (FS) [K]
- 5 K
- Differential type
- Fixed (max. value)
- Electrical connection size
- 6-14 mm
- Electrical spec. standard
- EN 60947-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- Factory setting (FS) [°C]
- 35 °C
- Factory setting type
- Dedicated
- Max. sensor temperature [°C]
- 130 °C
- Max. sensor temperature [°F]
- 266 °F
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Reset function
- Auto
- Sensor size (Ø x L) [in]
- 3/8 x 3 3/8 in
- Sensor size (Ø x L) [mm]
- 9.5 x 85 mm
- Sensor type
- Remote bulb
- Temperature range [°C] [max]
- 60 °C
- Temperature range [°C] [min]
- 20 °C
- Temperature range [°F] [max]
- 140 °F
- Temperature range [°F] [min]
- 68 °F
- UL approval file name
- E31024
- UL mark
- Yes
Standards & Compliance
- Material
- remote bulb sensor with enamelled die-cast aluminium housing and steel capillary
- Temperature Range
- -40 to +70 °C
- IP Rating
- IP30
- HS Code
- 9032.10
Compatibility & Fitment
KP77 temperature switch for HVAC-R temperature regulation and limit/overheat protection. Factory set 35 °C. Verify regulating range (20 to 60 °C) and differential against the set point before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss KPS79 thermostat, 50 to 100 °C, automatic reset, rigid sensor 060L312166
Danfoss

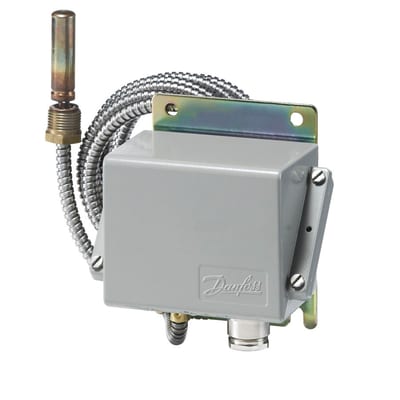

Danfoss KPS79 thermostat, 50 to 100 °C, automatic reset, remote bulb (5000 mm capillary)
060L312266
Danfoss
Danfoss KPS79 thermostat, 50 to 100 °C, automatic reset, remote bulb (8000 mm capillary)
060L312466
Danfoss
Danfoss KPS80 thermostat, 70 to 120 °C, automatic reset, rigid sensor 060L312666
Danfoss
Danfoss KPS80 thermostat, 70 to 120 °C, automatic reset, rigid sensor 060L312766
Danfoss
Danfoss KPS80 thermostat, 70 to 120 °C, automatic reset, remote bulb (2000 mm capillary)
060L312866
Danfoss
Danfoss KPS81 thermostat, 60 to 150 °C, automatic reset, remote bulb (5000 mm capillary)
060L313466
Danfoss

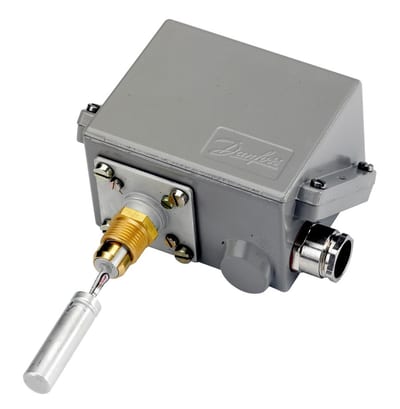

Danfoss KPS77 thermostat, 20 to 60 °C, automatic reset, rigid sensor 060L313666
