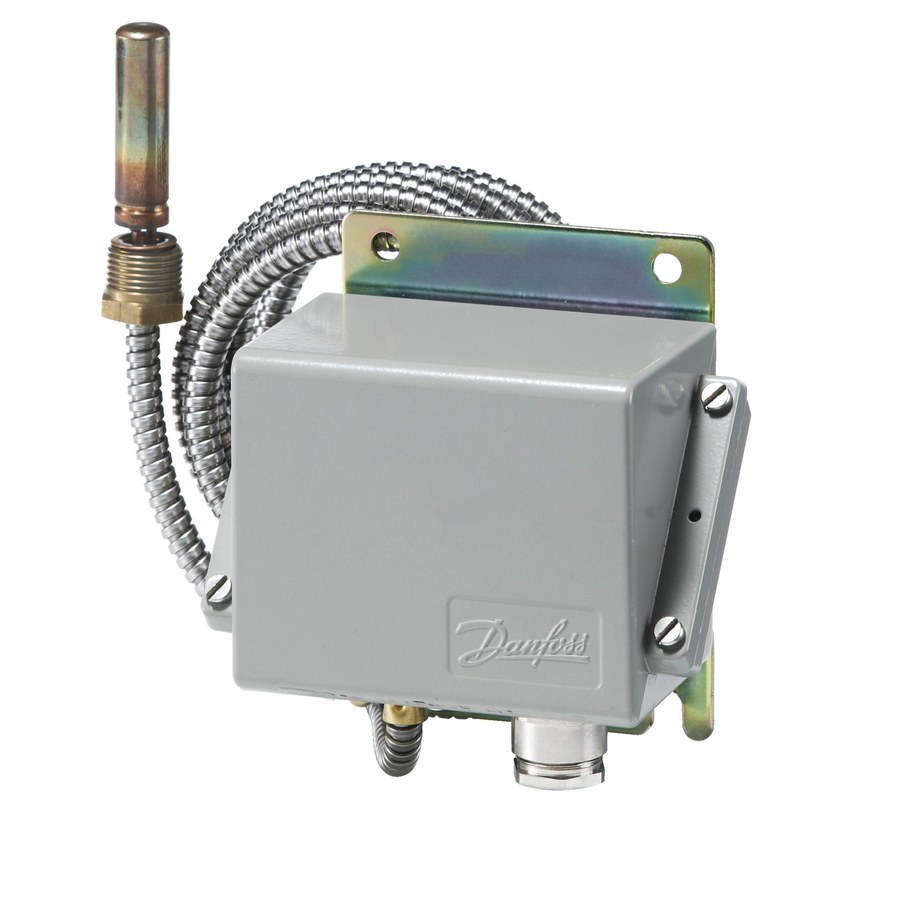

Danfoss KPS79 thermostat, 50 to 100 °C, automatic reset, remote bulb (8000 mm capillary)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KPS79 marine thermostat, code 060L312466. Regulating range 50 to 100 °C (122 to 212 °F) via remote bulb sensor (8000 mm capillary). Differential 4 to 16 K, adjustable; automatic reset; SPDT gold snap-action contact. Enclosure IP67; ambient -40 to +70 °C; maximum sensor temperature 200 °C (392 °F). Enamelled pressure die-cast aluminium (GD-AlSi 12) housing. For temperature monitoring, control and limit protection of non-aggressive media. Carries marine type approval (ABS/BV/DNV/GL/LR/NKK/RINA/RMRS). EAN 5702423147762.
Technical Specifications
- Type
- KPS79 thermostat
- Code number
- 060L312466
- Setting (regulating) range
- 50 to 100 °C (122 to 212 °F)
- Differential
- 4 to 16 K (adjustable, min. range)
- Reset
- Automatic
- Contact system
- SPDT gold
- Sensor
- remote bulb
- Sensor size
- Ø13 × 90 mm
- Capillary tube length
- 8000 mm
- Sensor pocket length (min.)
- 110 mm
- Max. sensor temperature
- 200 °C (392 °F)
- Enclosure
- IP67
- Ambient temperature
- -40 to +70 °C
- Electrical connection
- Screwed cable entry, Pg 13.5 (DIN 40430)
- Connection for pocket
- M 18 × 1.5
- Contact rating
- AC15=4 A/440 V; AC1=10 A/440 V; AC3=6 A/440 V; DC13=12 W/220 V; gold contacts 1–30 mA/5–30 V
- Approvals
- CE, EAC, CCC, CCS, UL, ABS, BV, DNV, GL, LR, NKK, RINA, RMRS, LVD
- EAN
- 5702423147762
- Net weight
- 1.767 Kilogram
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ABS
- Armoring
- Yes
- Cap. tube length fraction [in]
- 315 in
- Capillary tube length [mm]
- 8000 mm
- CE mark
- Yes
- Charge type
- Adsorption
- China RoHS compliance
- Yes
- Connection for pocket or hose
- M 18 x 1.5
- Contact function
- SPDT gold
- Diff. @ Min. range setting [K] [max]
- 16 K
- Diff. @ Min. range setting [K] [min]
- 4 K
- Diff. @ Min. range setting[°C] [max]
- 16 °C
- Diff. @ Min. range setting[°C] [min]
- 4 °C
- Differential type
- Adjustable
- Electrical conn. comments
- Metal cable gland
- Electrical conn. Male/Female
- Female
- Electrical connection size
- Pg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP67
- Equipment
- Armored cap. tube
- EU RoHS compliance
- Out of scope
- Max. sensor temperature [°C]
- 200 °C
- Max. sensor temperature [°F]
- 392 °F
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Reset function
- Auto
- Sensor pocket length min. [in]
- 4 3/8 in
- Sensor pocket length min. [mm]
- 110 mm
- Sensor size (Ø x L) [in]
- 1/2 x 3 1/2 in
- Sensor size (Ø x L) [mm]
- 13 x 90 mm
- Sensor type
- Remote bulb
- Temperature range [°C] [max]
- 100 °C
- Temperature range [°C] [min]
- 50 °C
- Temperature range [°F] [max]
- 212 °F
- Temperature range [°F] [min]
- 122 °F
- UL approval file name
- E73170
- UL mark
- Yes
Standards & Compliance
- Material
- remote bulb sensor with enamelled die-cast aluminium housing and steel capillary
- Temperature Range
- -40 to +70 °C
- IP Rating
- IP67
- HS Code
- 9032.10
Compatibility & Fitment
KPS79 marine temperature switch (IP67, remote bulb sensor) for temperature regulation and limit/overheat protection on ships, compressors and large machinery. Contact wired NO or NC. Verify regulating range (50 to 100 °C), sensor length and pocket before ordering.
