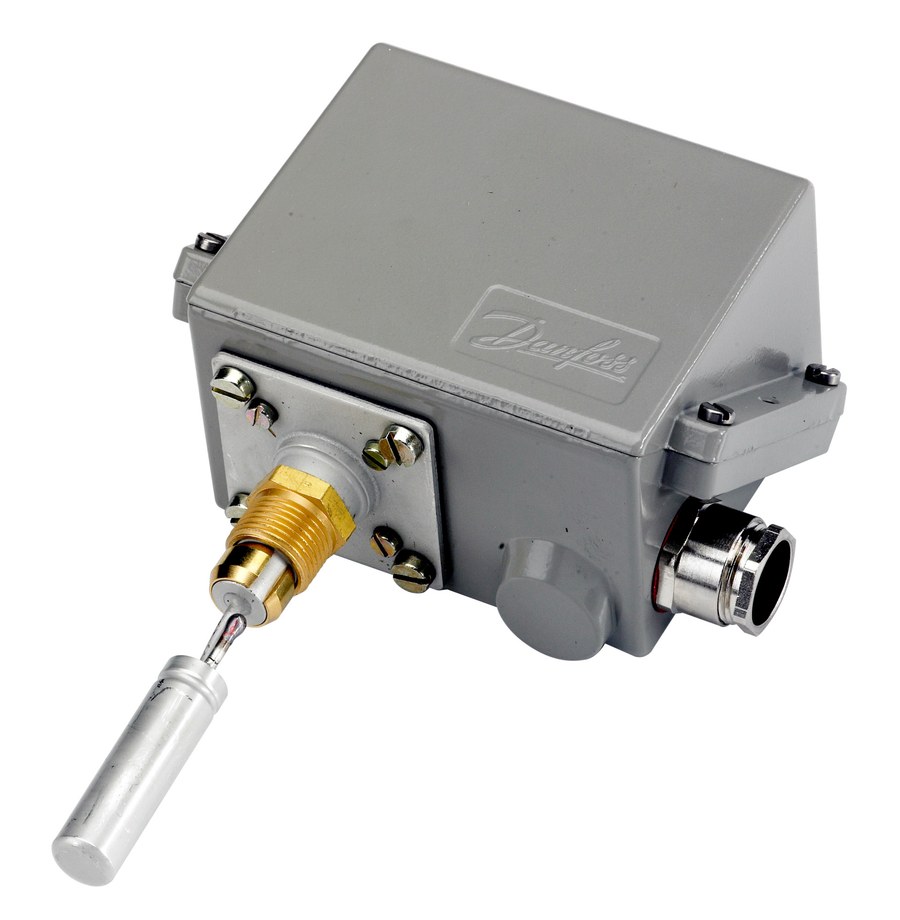

Danfoss KPS80 thermostat, 70 to 120 °C, automatic reset, rigid sensor
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss KPS80 marine thermostat, code 060L312666. Regulating range 70 to 120 °C (158 to 248 °F) via rigid (direct-mounted) sensor. Differential 4.5 to 18 K, adjustable; automatic reset; SPDT gold snap-action contact. Enclosure IP67; ambient -40 to +70 °C; maximum sensor temperature 220 °C (428 °F). Enamelled pressure die-cast aluminium (GD-AlSi 12) housing. For temperature monitoring, control and limit protection of non-aggressive media. Carries marine type approval (ABS/BV/DNV/GL/LR/NKK/RINA/RMRS). EAN 5702423147786.
Specifications
- Part number
- 060L312666
- HS code
- 9032.10
- Material
- rigid sensor with enamelled die-cast aluminium housing
- Temperature range
- -40 to +70 °C
- IP rating
- IP67
Compatibility
KPS80 marine temperature switch (IP67, rigid direct-mounted sensor) for temperature regulation and limit/overheat protection on ships, compressors and large machinery. Contact wired NO or NC. Verify regulating range (70 to 120 °C), sensor length and pocket before ordering.
Standards
Approvals
- CE
- EAC
- CCC
- CCS
- UL
- ABS
- BV
- DNV
- GL
- LR
- NKK
- RINA
- RMRS
- LVD
