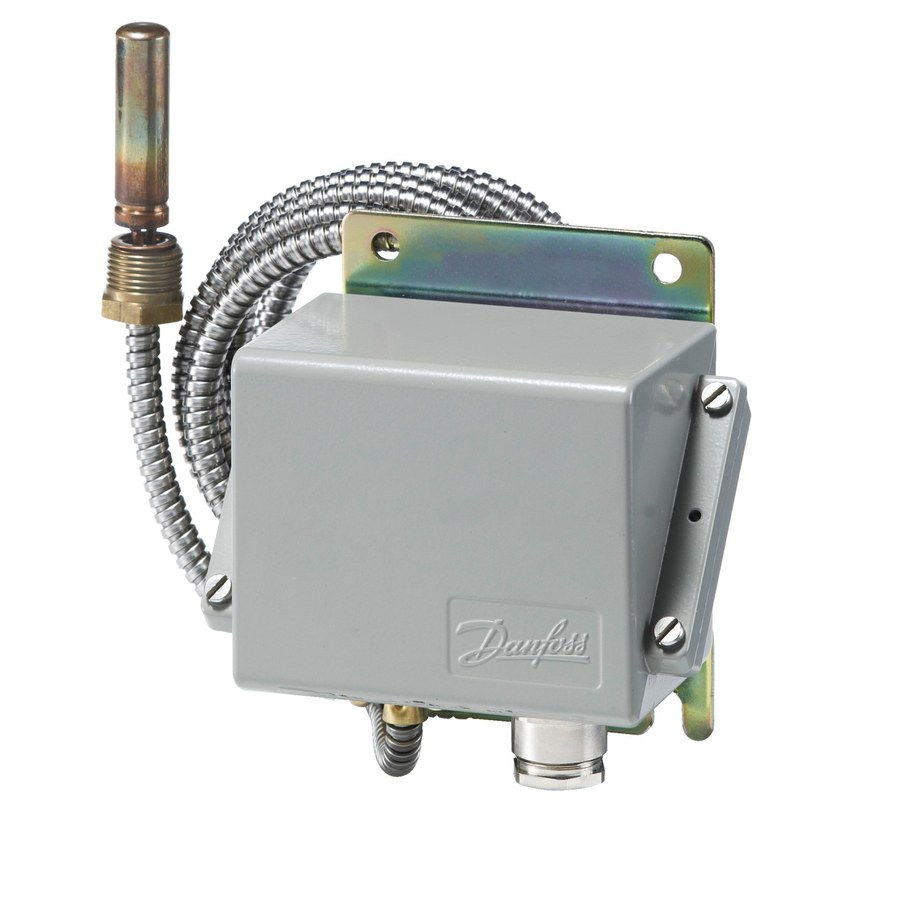

Danfoss KPS79 thermostat, 50 to 100 °C, automatic reset, remote bulb (3000 mm capillary)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss KPS79 marine thermostat, code 060L314366. Regulating range 50 to 100 °C (122 to 212 °F) via remote bulb sensor (3000 mm capillary). Differential 4 to 16 K, adjustable; automatic reset; SPDT gold snap-action contact. Enclosure IP67; ambient -40 to +70 °C; maximum sensor temperature 200 °C (392 °F). Enamelled pressure die-cast aluminium (GD-AlSi 12) housing. For temperature monitoring, control and limit protection of non-aggressive media. Carries marine type approval (ABS/BV/DNV/GL/LR/NKK/RINA/RMRS). EAN 5702423147946.
Specifications
- Part number
- 060L314366
- HS code
- 9032.10
- Material
- remote bulb sensor with enamelled die-cast aluminium housing and steel capillary
- Temperature range
- -40 to +70 °C
- IP rating
- IP67
Compatibility
KPS79 marine temperature switch (IP67, remote bulb sensor) for temperature regulation and limit/overheat protection on ships, compressors and large machinery. Contact wired NO or NC. Verify regulating range (50 to 100 °C), sensor length and pocket before ordering.
Standards
Approvals
- CE
- EAC
- CCC
- CCS
- UL
- ABS
- BV
- DNV
- GL
- LR
- NKK
- RINA
- RMRS
- LVD
