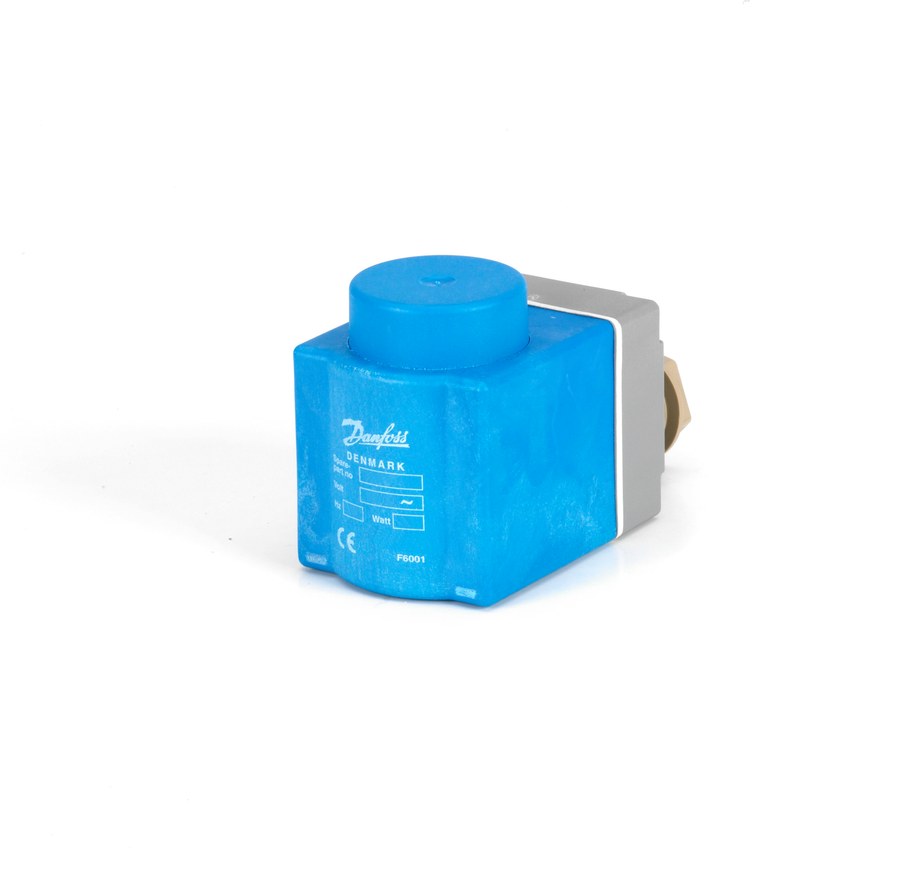

Danfoss BE115CS solenoid valve coil 115V AC 50/60Hz clip-on terminal box IP67
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss BE115CS clip-on solenoid coil, 115 V AC, 50/60 Hz, terminal box connection (screwed cable entry), IP67, Class H insulation. Encapsulated coil with 13.5 mm clip-on actuator for the EV-series valve range. OEM P/N 018F6710. Valve body ordered separately.
Technical Specifications
- Type
- BE115CS clip-on solenoid coil
- Supply
- 115 V AC, 50/60 Hz
- Power
- 19 VA / 11 W (50 Hz); 22 VA / 13 W (60 Hz)
- Connection
- Terminal box (screwed cable entry)
- Enclosure
- IP67
- Insulation
- Class H to IEC 60085
- Ambient
- -40 to +80 °C
- Actuator size
- 13.5 mm, clip-on
- Duty
- continuous
- Design standard
- VDE 0580
- Packing
- multi-pack
- EAN
- 5702428023078
- Fits EV210B / EV212B / EV220B / EV222B / EV224B / EV227B / EV250B / EV251B-series solenoid valve bodies — verify valve series on the datasheet
- Voltage
- 115 V
Standards & Compliance
- Material
- Encapsulated coil, Class H insulation
- Temperature Range
- -40 to +80 °C
- IP Rating
- IP67
- HS Code
- 8505.90
Compatibility & Fitment
Clip-on coil — mounts on the EV-series valve actuator (13.5 mm) without tools. Terminal box connection with screwed cable entry. Verify valve series, supply voltage and connection type before ordering. Valve body ordered separately.
