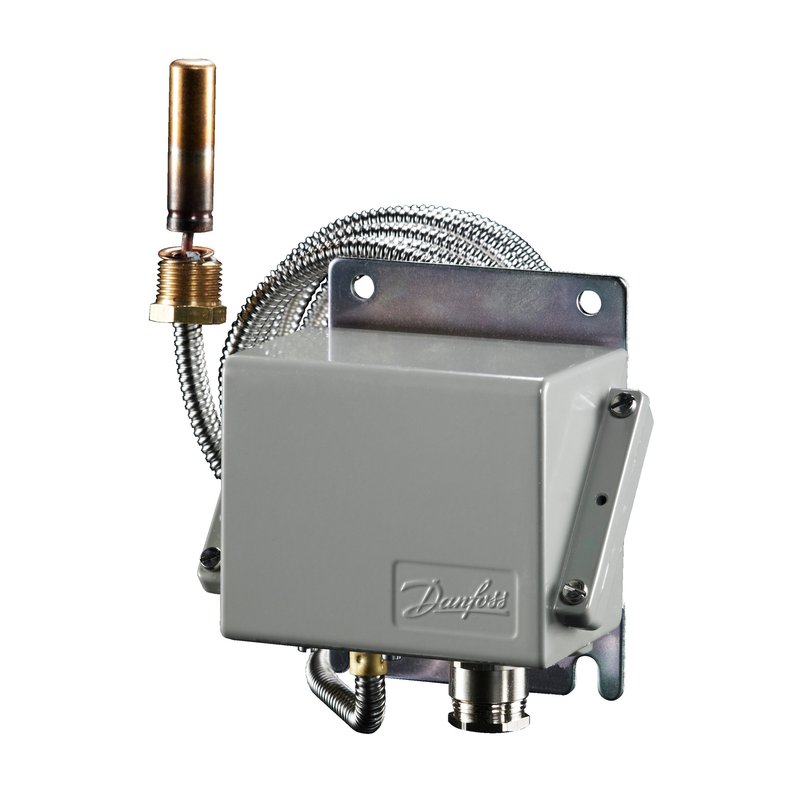

Danfoss CAS181 thermostat, 60 to 150 °C, automatic reset, remote bulb (2000 mm capillary)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss CAS181 marine thermostat, code 060L315566. Regulating range 60 to 150 °C (140 to 302 °F) via remote bulb sensor (2000 mm capillary). Differential 2.5 K (fixed), adjustable; automatic reset; SPDT (low-current) snap-action contact. Enclosure IP67; ambient -25 to +70 °C; maximum sensor temperature 250 °C (482 °F). Enamelled pressure die-cast aluminium (GD-AlSi 12) housing. For temperature monitoring, control and limit protection of non-aggressive media. Carries marine type approval (ABS/BV/DNV/GL/LR/NKK/RINA/RMRS). EAN 5702423148035.
Technical Specifications
- Type
- CAS181 thermostat
- Code number
- 060L315566
- Setting (regulating) range
- 60 to 150 °C (140 to 302 °F)
- Differential
- 2.5 K (fixed)
- Reset
- Automatic
- Contact system
- SPDT (low-current)
- Sensor
- remote bulb
- Sensor size
- Ø13 × 63 mm
- Capillary tube length
- 2000 mm
- Sensor pocket length (min.)
- 75 mm
- Max. sensor temperature
- 250 °C (482 °F)
- Enclosure
- IP67
- Ambient temperature
- -25 to +70 °C
- Electrical connection
- Screwed cable entry, Pg 13.5 (DIN 40430)
- Connection for pocket
- M 18 × 1.5
- Contact rating
- AC15=0.1 A/220 V; DC13=12 W/125 V (low-current gold SPDT)
- Approvals
- CE, EAC, CCC, ABS, BV, DNV, GL, LR, NKK, RINA, RMRS, LVD
- EAN
- 5702423148035
- Net weight
- 1.148 Kilogram
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -25 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -32 °F
- Approval
- ABS
- Armoring
- Yes
- Cap. tube length fraction [in]
- 78 3/4 in
- Capillary tube length [mm]
- 2000 mm
- CE mark
- Yes
- Charge type
- Adsorption
- China RoHS compliance
- Yes
- Connection for pocket or hose
- M 18 x 1.5
- Contact function
- SPDT
- Diff. @ Min. range setting [K]
- 2.5 K
- Diff. @ Min. range setting[°C]
- 2.5 °C
- Diff. @ Min. range setting[°F]
- 2.5 °F
- Differential (FS) [K]
- 2.5 K
- Differential type
- Fixed
- Electrical conn. comments
- Metal cable gland
- Electrical conn. Male/Female
- Female
- Electrical connection size
- Pg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Out of scope
- Max. sensor temperature [°C]
- 250 °C
- Max. sensor temperature [°F]
- 482 °F
- Parts included
- Gasket set
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Reset function
- Auto
- Sensor pocket length min. [in]
- 3 in
- Sensor pocket length min. [mm]
- 75 mm
- Sensor size (Ø x L) [in]
- 1/2 x 2 1/2 in
- Sensor size (Ø x L) [mm]
- 13 x 63 mm
- Sensor type
- Remote bulb
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- 60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- 140 °F
Standards & Compliance
- Material
- remote bulb sensor with enamelled die-cast aluminium housing and steel capillary
- Temperature Range
- -25 to +70 °C
- IP Rating
- IP67
- HS Code
- 9032.10
Compatibility & Fitment
CAS181 marine temperature switch (IP67, remote bulb sensor) for temperature regulation and limit/overheat protection on ships, compressors and large machinery. Contact wired NO or NC. Verify regulating range (60 to 150 °C), sensor length and pocket before ordering.
