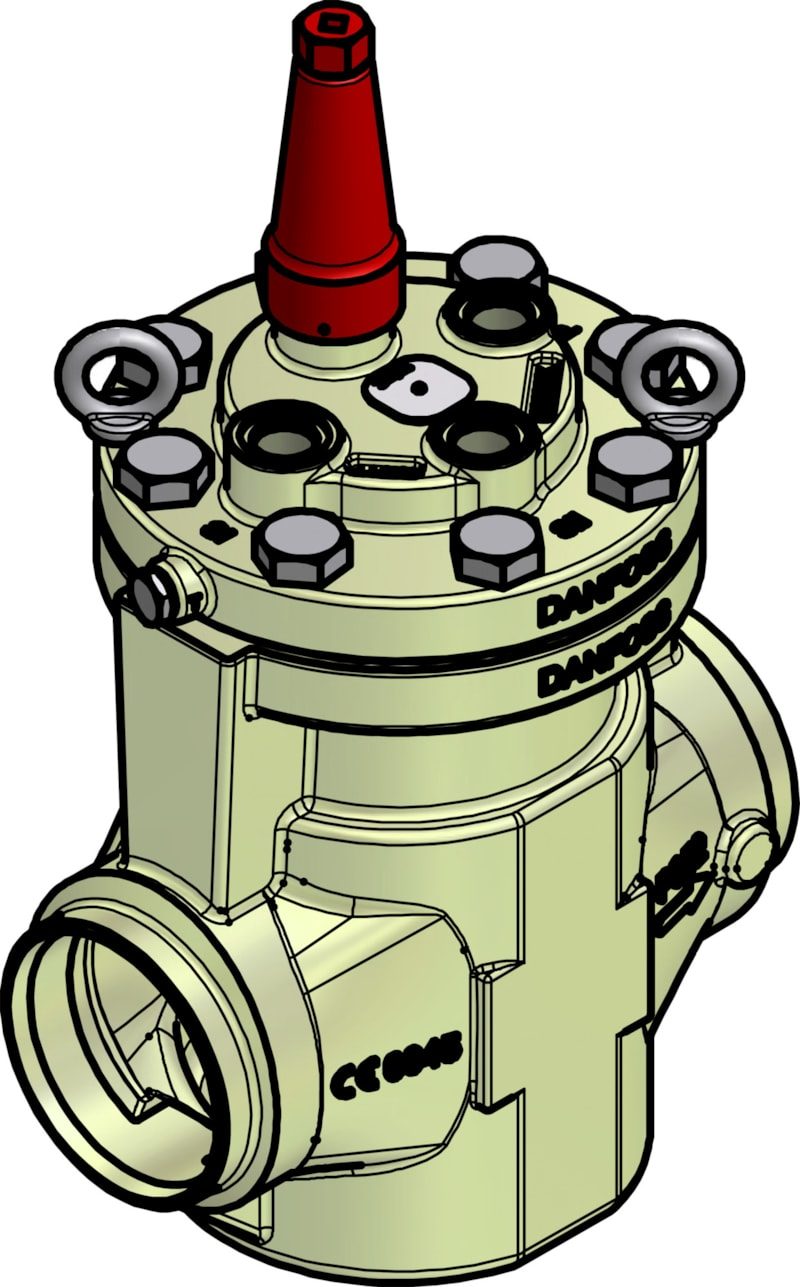

Danfoss ICS 150 pilot-operated servo valve, butt weld 150 mm (6 in) (code 027H7161)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICS 150 pilot-operated servo valve (code 027H7161), a main valve of the ICV Flexline modular industrial-refrigeration platform. Butt-weld 150 mm (6 in) connections; Kv 354 m3/h, maximum working pressure 52 bar (754 psig). The valve function (constant pressure, constant temperature, solenoid stop, etc.) is set by the pilot valve(s) fitted to the top cover. Suitable for R717 (ammonia), R744 (CO2), R22, R134a, R404A, R407C, R410A, R507A and the wider HFC/HFO range listed by Danfoss for this code. CE 0045 (PED), TÜV, UL and EAC. Pilot valves and function module ordered separately.
Specifications
- Part number
- 027H7161
- HS code
- 8481.80
- Pressure rating
- 52 bar
Compatibility
ICS 150 servo main valve. Confirm Kv (354 m3/h) and select the pilot valve(s) for the required function; top cover / function module and pilots are ordered separately.
Approvals
