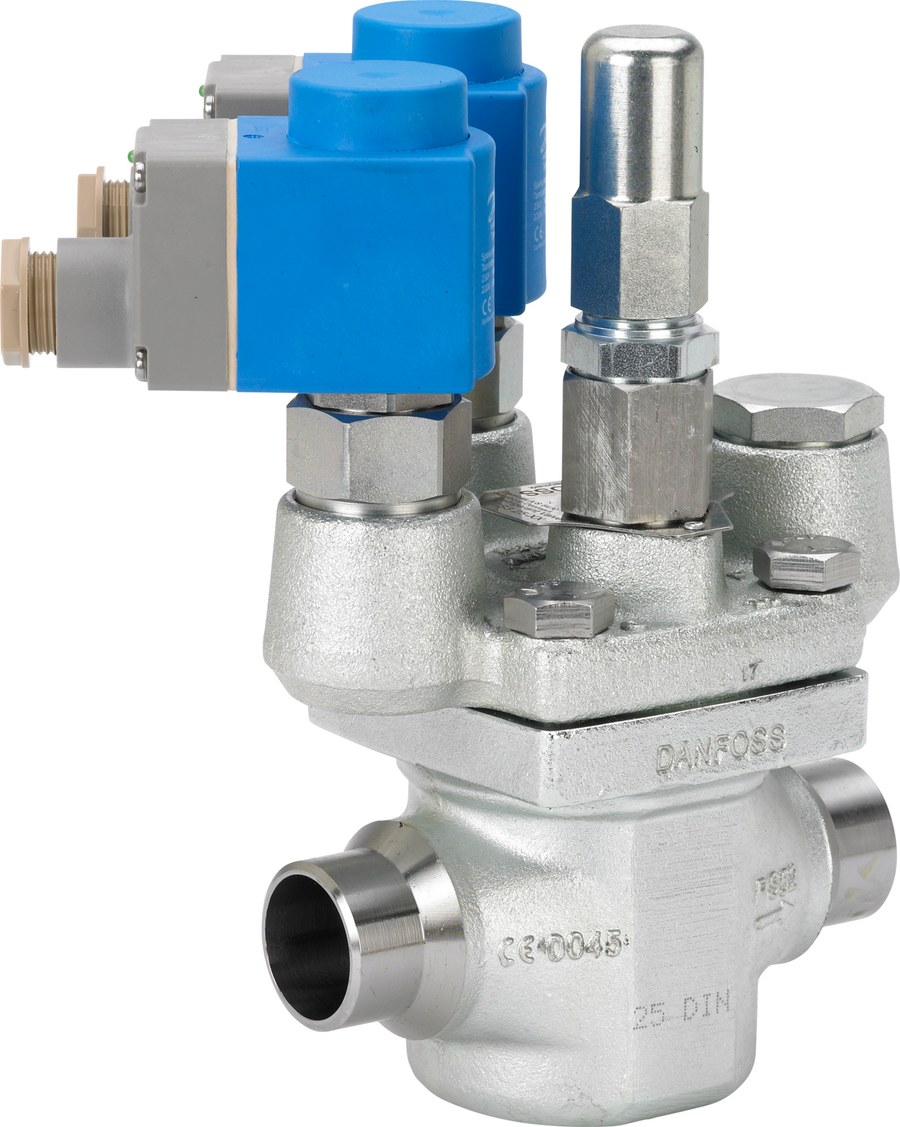

Danfoss ICSH 80 pilot-operated servo valve, butt weld 80 mm, steel, Kv 82 m³/h, 65 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICSH 80 pilot-operated servo main valve (code 027H7303) for industrial refrigeration, including high-pressure and CO₂ (R744) duty. Steel body with 80 mm butt-weld connections; flow coefficient Kv 82 m³/h. The servo main valve carries a pilot function module on its top cover to set the control function (constant pressure, solenoid on/off, differential-pressure or other pilot, ordered separately). Maximum working pressure 65 bar (943 psig); media temperature -60 to +120 °C (-76 to 248 °F). Net weight 15.416 kg. Suitable for R717 (ammonia), R744 (CO₂), HFC and hydrocarbon refrigerants. Specifications per Danfoss store code 027H7303.
Technical Specifications
- Type
- ICSH 80 pilot-operated servo valve
- Code number
- 027H7303
- Size
- 80 mm
- Inlet/outlet connection
- Butt weld, steel
- Inlet/outlet connection size
- 80 mm
- Kv value
- 82 m³/h
- Body material
- Steel
- Connection material
- Steel
- Valve operation
- Pilot operated (function module on top cover, ordered separately)
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 °C (-76 to 248 °F)
- Net weight
- 15.416 kg
- Refrigerants
- R717 (ammonia), R744 (CO₂), R134a, R404A, R410A, R22, R290, R32, R1234yf, R1234ze(E) and other listed refrigerants
- Approvals
- EAC, TÜV, UL
- Compliance
- EU RoHS, China RoHS
- EAN
- 5702428514439
- Product group
- Press. and temp. regul. valves
- Approval
- EAC
- China RoHS compliance
- Yes
- Comments
- FUNCTION MODULE INSTALLED
- Connection standard
- ASME B 36.10M SCHEDULE 40
- Cv value [gal/min]
- 95.12 gal/min
- Direction
- Straightway
- EU RoHS compliance
- Yes
- Fluid Group
- 1
- Inlet connection size [in]
- 3 in
- Inlet connection size [mm]
- 80 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 82 m³/h
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Outlet connection size [in]
- 3 in
- Outlet connection size [mm]
- 80 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Top cover
- 3 function modules
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- Valve version
- Standard version
Standards & Compliance
- Size / Series
- 80 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss ICSH servo main valve — the control function is set by the pilot/function module fitted to the top cover (ordered separately). Verify Kv (82 m³/h), MWP (65 bar) and refrigerant duty before ordering; spare/service kits are separate codes.
