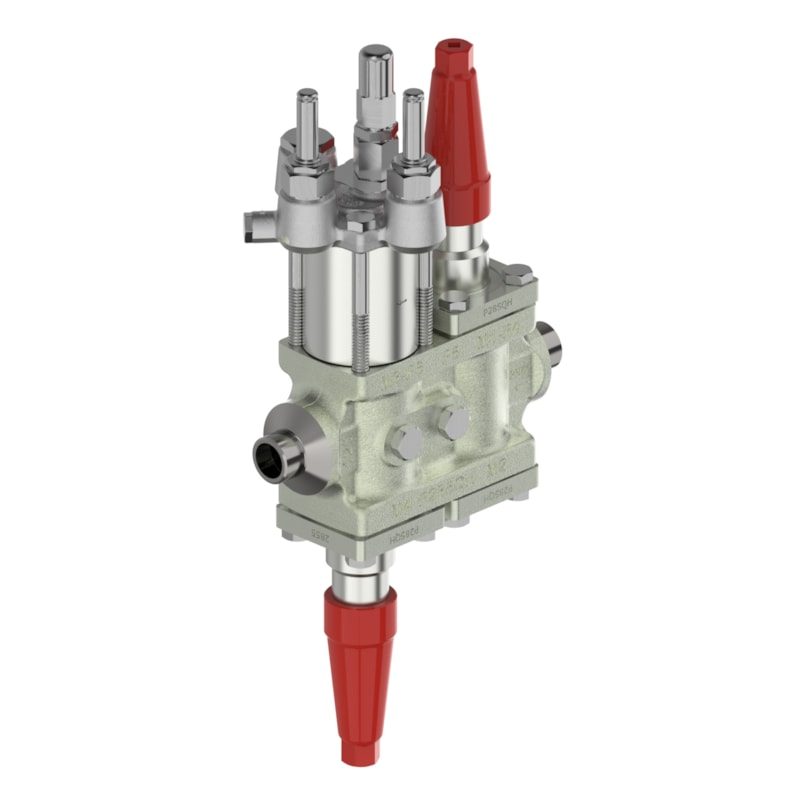

Danfoss ICF 25-4-90 Flexline valve station, 32 mm, EN 10220 (code 027L4696)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 25-4-90 Flexline valve station (code 027L4696). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 25), Blank top cover (ICFB 25), Solenoid valve (ICSG 25-25), Stop valve (ICFS 25). Connection size 32 mm, connection standard EN 10220 (butt weld). Side ports 3/8 in. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 °C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 25-4-90 Flexline valve station
- Code number
- 027L4696
- Connection size
- 32 mm
- Connection standard
- EN 10220
- Connection type
- Butt weld
- Module configuration
- Stop valve (ICFS 25), Blank top cover (ICFB 25), Solenoid valve (ICSG 25-25), Stop valve (ICFS 25)
- Body material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 14.651 kg, gross weight 20 kg
- Approvals
- CE, EAC, TUV, UL
- EAN
- 5715255199274
- Net weight
- 14.651 Kilogram
- Product group
- Multifunction valves
- Approval
- CE
- Connection material
- Steel
- Connection size [in]
- 1 1/4 in
- Connection size [mm]
- 32 mm
- Direction
- Straightway
- Equipment
- Cap
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Module 1
- Stop valve
- Module 1 type
- ICFS 25
- Module 2
- Blank top cover
- Module 2 type
- ICFB 25
- Module 3
- Solenoid valve
- Module 3 type
- ICSG 25-25
- Module 4
- Stop valve
- Module 4 type
- ICFS 25
- PED category
- II
- Refrigerants
- R1234yf
- Side port connection size [in]
- 3/8 in
- Side port connection type
- G
- Side port placement
- P2-P3-P5-P6
- Side port quantity [pc]
- 4 pc
- Surface coating
- Zn (TLP)
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Type code ICF
- ICF-25-4-25DSXBXH5SXXXXX4XXX
- UL approval file name
- REFRIGERANT VALVE 53R0
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 32 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 25-4-90 (Stop valve (ICFS 25), Blank top cover (ICFB 25), Solenoid valve (ICSG 25-25), Stop valve (ICFS 25)). The station bolts into a 32 mm line (EN 10220, butt weld); individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
