Danfoss ICF 65-3-43MA Flexline valve station, 80 mm, EN 10220
Pricing
Request a quote
We reply within 24 hours
Product Description

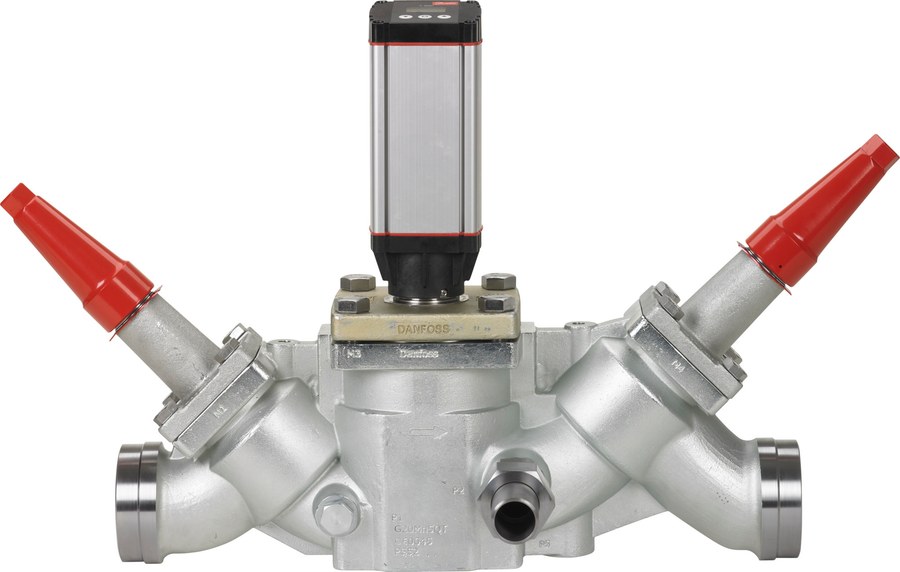

Danfoss ICF 65-3-43MA Flexline valve station (code 027L6515). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: SVA-S 65 stop valve, ICM 65-A control valve, SVA-S 65 stop valve. Connection size 80 mm, connection standard EN 10220. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 65-3-43MA Flexline valve station
- Code number
- 027L6515
- Connection size
- 80 mm
- Connection standard
- EN 10220
- Module configuration
- SVA-S 65 stop valve, ICM 65-A control valve, SVA-S 65 stop valve
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 32.9 kg
- Approvals
- C-UL-US Listed, CE, EAC, TUV, PED 2014/68/EU Cat. II
- EAN
- 5702428917353
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection material
- Steel
- Connection type
- Butt weld
- Max. working pressure
- 52.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- II
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Defrost port connection size
- 33 X 1.5
- Defrost port connection type
- M
- Defrost port placement
- P2-P4
- Defrost port quantity
- 2 pc
- Equipment
- Cap/2 x Lifting hooks
- Flow direction indicator
- Embossed 1-way arrow
- Module 1
- Stop valve
- Module 1 type
- SVA-S 65
- Module 3
- Control valve
- Module 3 type
- ICM 65-A
- Module 4
- Stop valve
- Module 4 type
- SVA-S 65
- Side port connection size
- 3/8 in
- Side port connection type
- G
- Side port placement
- P1-P3
- Side port quantity
- 2 pc
- Surface coating
- Zn (TLP)
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 80 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 65-3-43MA (SVA-S 65 stop valve, ICM 65-A control valve, SVA-S 65 stop valve). The station bolts into a 80 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 65-3-43MA Flexline valve station, 80 mm, ASME B 36.10M Schedule 80
027L6516
Danfoss
Danfoss ICF 50-4-45S50 Flexline valve station, 40 mm, ASME B 16.11
027L5026
Danfoss
Danfoss ICF 50-4-45S40 Flexline valve station, 40 mm, EN 10220
027L5033
Danfoss
Danfoss ICF 50-4-45S40 Flexline valve station, 40 mm, ASME B 16.11
027L5034
Danfoss
Danfoss ICF 50-4-46MA Flexline valve station, 40 mm, ASME B 16.11
027L5038
Danfoss
Danfoss ICF 50-4-46MB Flexline valve station, 40 mm, ASME B 16.11
027L5042
Danfoss
Danfoss ICF 50-4-46MB Flexline valve station, 50 mm, EN 10220
027L5043
Danfoss

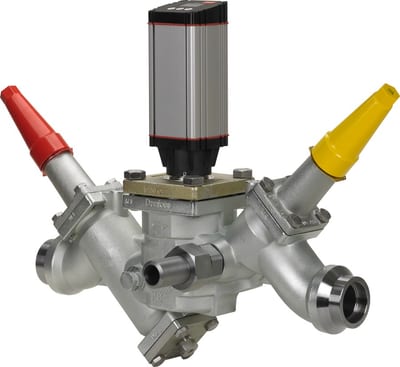

Danfoss ICF 50-4-46MB Flexline valve station, 50 mm, ASME B 16.11
