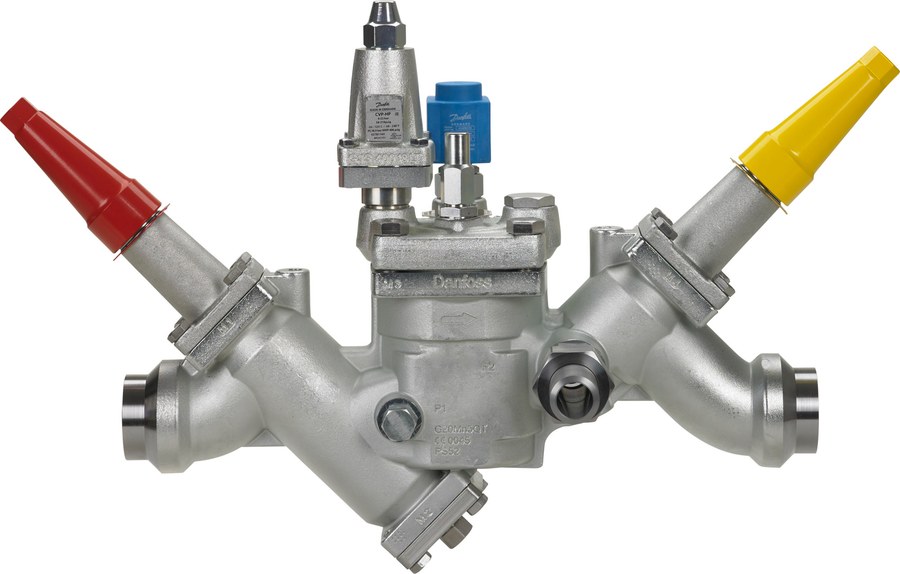

Danfoss ICF 50-4-45S40 Flexline valve station, 40 mm, ASME B 16.11
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 50-4-45S40 Flexline valve station (code 027L5034). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (SVA-S 50), Filter cover without FIA filter (ICFB 50), Control valve (ICS 50-40), Regulation valve (REG-SB 50). Connection size 40 mm, connection standard ASME B 16.11. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 50-4-45S40 Flexline valve station
- Code number
- 027L5034
- Connection size
- 40 mm
- Connection standard
- ASME B 16.11
- Module configuration
- Stop valve (SVA-S 50), Filter cover without FIA filter (ICFB 50), Control valve (ICS 50-40), Regulation valve (REG-SB 50)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 26.01 kg
- Approvals
- C-UL-US Listed, CE, EAC, TUV, PED 2014/68/EU Cat. II
- EAN
- 5702428917643
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection type
- Socket weld
- Max. working pressure
- 52.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- II
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Defrost port placement
- P2-P4
- Defrost port quantity
- 2 pc
- Equipment
- Cap
- Module 1
- Stop valve
- Module 1 type
- SVA-S 50
- Module 2
- Filter Cover (no FIA Filter)
- Module 2 type
- ICFB 50
- Module 3
- Control valve
- Module 3 type
- ICS 50-40
- Module 4
- Regulation valve
- Module 4 type
- REG-SB 50
- Side port placement
- P1-P3
- Side port quantity
- 2 pc
- Surface coating
- ZnCr04
- Type code ICF
- ICF-50-4-40SSXBXG2RBXXXX2NXX
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Standard
- ASME B 16.11
- Size / Series
- 40 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 50-4-45S40 (Stop valve (SVA-S 50), Filter cover without FIA filter (ICFB 50), Control valve (ICS 50-40), Regulation valve (REG-SB 50)). The station bolts into a 40 mm line to ASME B 16.11; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 50-4-46MA Flexline valve station, 40 mm, ASME B 16.11
027L5038
Danfoss
Danfoss ICF 50-4-46MB Flexline valve station, 40 mm, ASME B 16.11
027L5042
Danfoss
Danfoss ICF 50-4-46MB Flexline valve station, 50 mm, EN 10220
027L5043
Danfoss
Danfoss ICF 50-4-46MB Flexline valve station, 50 mm, ASME B 16.11
027L5044
Danfoss
Danfoss ICF 50-4-48H32 Flexline valve station, 40 mm, ASME B 16.11
027L5074
Danfoss
Danfoss ICF 50-4-48H50 Flexline valve station, 40 mm, EN 10220
027L5091
Danfoss
Danfoss ICF 50-4-44 Flexline valve station, 50 mm, EN 10220
027L5046
Danfoss

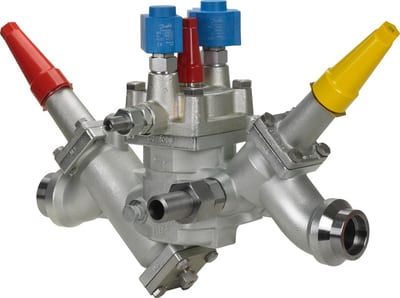

Danfoss ICF 50-4-44 Flexline valve station, 40 mm, ASME B 16.11
