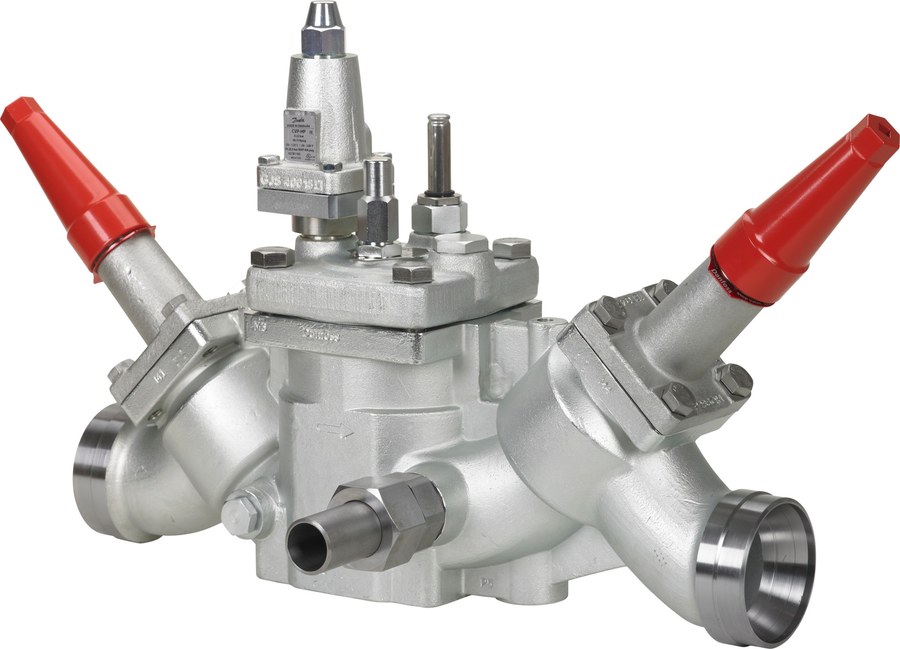

Danfoss ICF 65-3-42S80 Flexline valve station, 65 mm, ASME B 36.10M Schedule 80
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 65-3-42S80 Flexline valve station (code 027L6510). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: SVA-S 65 stop valve, ICS 80 control valve, SVA-S 65 stop valve. Connection size 65 mm, connection standard ASME B 36.10M Schedule 80. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 65-3-42S80 Flexline valve station
- Code number
- 027L6510
- Connection size
- 65 mm
- Connection standard
- ASME B 36.10M Schedule 80
- Module configuration
- SVA-S 65 stop valve, ICS 80 control valve, SVA-S 65 stop valve
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 33.24 kg
- Approvals
- C-UL-US Listed, CE, EAC, TUV, PED 2014/68/EU Cat. II
- EAN
- 5702428917407
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection type
- Butt weld
- Max. working pressure
- 52.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- II
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Defrost port placement
- P2-P4
- Defrost port quantity
- 2 pc
- Equipment
- Cap
- Module 1
- Stop valve
- Module 1 type
- SVA-S 65
- Module 3
- Control valve
- Module 3 type
- ICS 80
- Module 4
- Stop valve
- Module 4 type
- SVA-S 65
- Side port placement
- P1-P3
- Side port quantity
- 2 pc
- Surface coating
- ZnCr04
- Type code ICF
- ICF-65-3-65ASXXBG4SXXXXX2KXX
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Standard
- ASME B 36.10M Schedule 80
- Size / Series
- 65 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 65-3-42S80 (SVA-S 65 stop valve, ICS 80 control valve, SVA-S 65 stop valve). The station bolts into a 65 mm line to ASME B 36.10M Schedule 80; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 65-3-42S80 Flexline valve station, 80 mm, ASME B 36.10M Schedule 80
027L6512
Danfoss
Danfoss ICF 65-3-43MA Flexline valve station, 80 mm, EN 10220
027L6515
Danfoss
Danfoss ICF 65-3-43MA Flexline valve station, 80 mm, ASME B 36.10M Schedule 80
027L6516
Danfoss
Danfoss ICF 50-4-45S50 Flexline valve station, 40 mm, ASME B 16.11
027L5026
Danfoss
Danfoss ICF 50-4-45S40 Flexline valve station, 40 mm, EN 10220
027L5033
Danfoss
Danfoss ICF 50-4-45S40 Flexline valve station, 40 mm, ASME B 16.11
027L5034
Danfoss
Danfoss ICF 50-4-46MA Flexline valve station, 40 mm, ASME B 16.11
027L5038
Danfoss

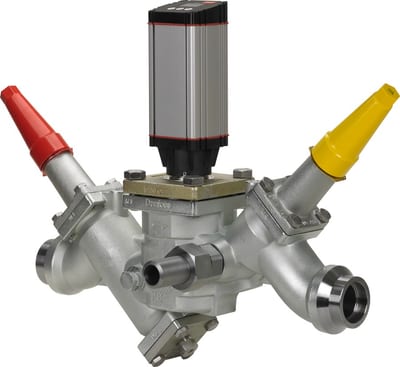

Danfoss ICF 50-4-46MB Flexline valve station, 40 mm, ASME B 16.11
