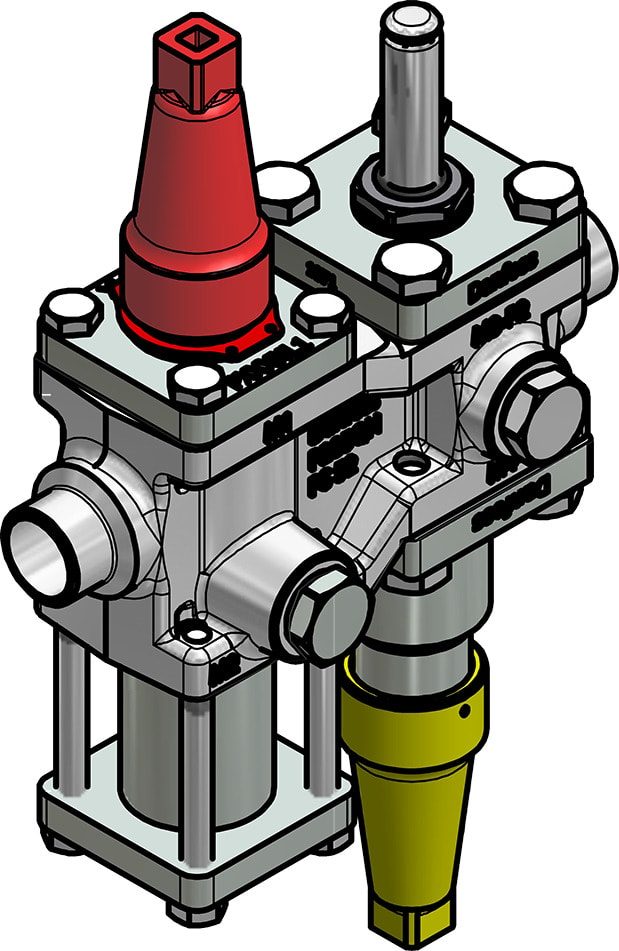

Danfoss ICF 15-4-10RB Flexline valve station, 15 mm, ASME B 36.10M
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 15-4-10RB Flexline valve station (code 027L4603). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 15), Filter (ICFF 15), Solenoid valve (ICFE 20), Manual regulating valve (ICFR 20B). Connection size 15 mm, connection standard ASME B 36.10M SCHEDULE 80 (butt weld). Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 °C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 15-4-10RB Flexline valve station
- Code number
- 027L4603
- Connection size
- 15 mm
- Connection standard
- ASME B 36.10M SCHEDULE 80
- Connection type
- Butt weld
- Module configuration
- Stop valve (ICFS 15), Filter (ICFF 15), Solenoid valve (ICFE 20), Manual regulating valve (ICFR 20B)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 6.486 kg, gross weight 6.786 kg
- Approvals
- EAC, UL
- EAN
- 5702428519717
- Net weight
- 6.486 Kilogram
- Product group
- Multifunction valves
- Approval
- EAC
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection material
- Steel
- Connection size [in]
- 1/2 in
- Connection size [mm]
- 15 mm
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 450 psig
- Module 1
- Stop valve
- Module 1 type
- ICFS 15
- Module 2
- Filter
- Module 2 type
- ICFF 15
- Module 3
- Solenoid valve
- Module 3 type
- ICFE 20
- Module 4
- Manual regulating valve
- Module 4 type
- ICFR 20B
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Side port placement
- P1-P2
- Side port quantity [pc]
- 2 pc
- Surface coating
- Zn (TLP)
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Type code ICF
- ICF-15-4-15ASYFYEXRBXXXX2AXX
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
Standards & Compliance
- Standard
- ASME B 36.10M SCHEDULE 80
- Size / Series
- 15 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 15-4-10RB (Stop valve (ICFS 15), Filter (ICFF 15), Solenoid valve (ICFE 20), Manual regulating valve (ICFR 20B)). The station bolts into a 15 mm line (ASME B 36.10M SCHEDULE 80, butt weld); individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
Product Documentation
More from Danfoss
Danfoss

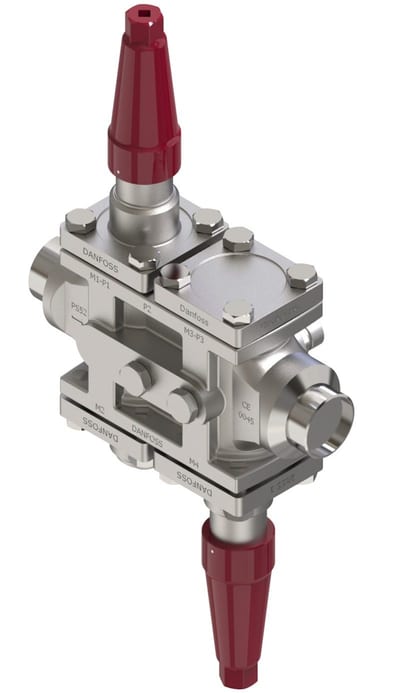

Danfoss ICF 25-4-90 Flexline valve station, 25 mm, EN 10220
027L4605
Danfoss

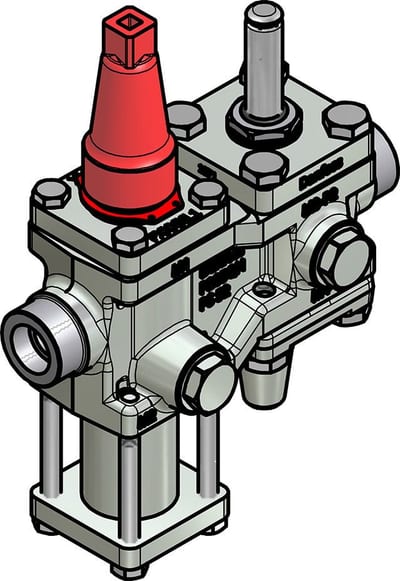

Danfoss ICF 15-4-8 Flexline valve station, 20 mm, ANSI B 16.11
027L4611
Danfoss

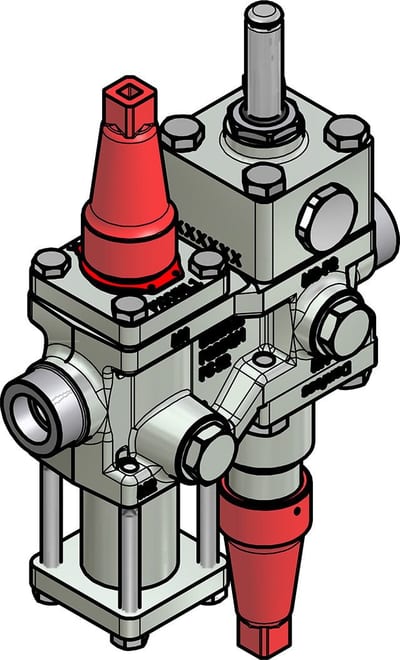

Danfoss ICF 15-4-9H Flexline valve station, 20 mm, ANSI B 16.11
027L4612
Danfoss

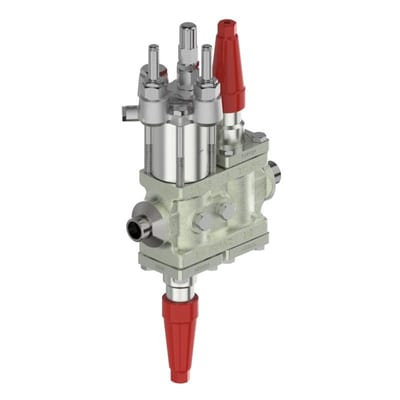

Danfoss ICF 25-4-90 Flexline valve station, 32 mm, EN 10220 (code 027L4696)
Danfoss
Danfoss ICF 65-3-42S80 Flexline valve station, 65 mm, EN 10220
027L6509
Danfoss
Danfoss ICF 65-3-42S80 Flexline valve station, 65 mm, ASME B 36.10M Schedule 80
027L6510
Danfoss

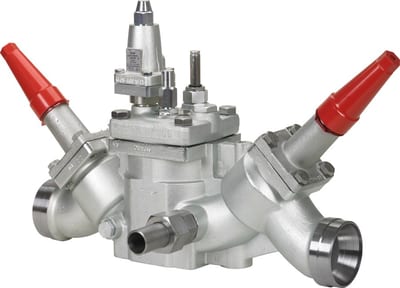

Danfoss ICF 65-3-42S80 Flexline valve station, 80 mm, ASME B 36.10M Schedule 80
027L6512
Danfoss

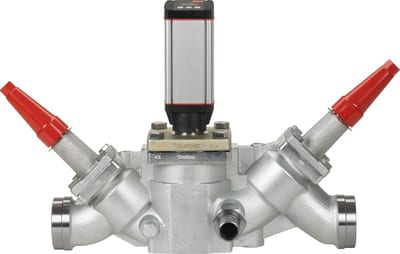

Danfoss ICF 65-3-43MA Flexline valve station, 80 mm, EN 10220
