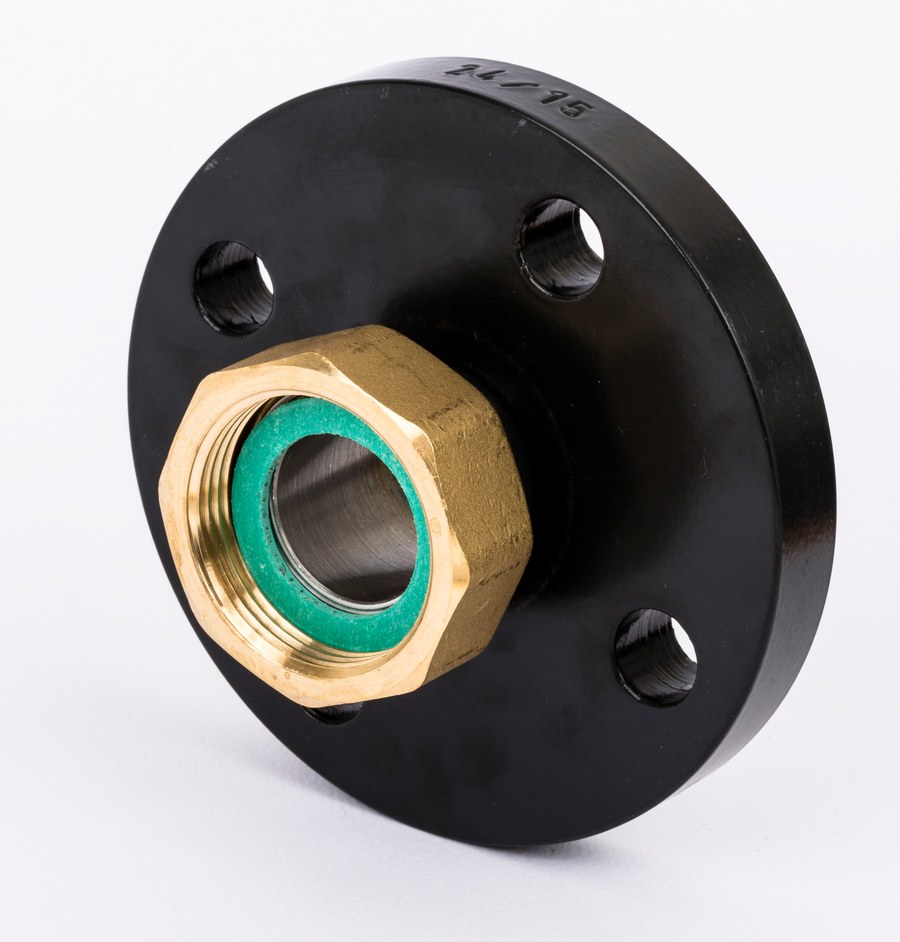

Danfoss Flange tailpiece set (2 pcs), PN 25, DN 15, union G 3/4, for AV-range self-acting controllers & VM/VG globe valves
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss flange tailpiece set (2 pcs) (003H6915) — genuine Danfoss accessory for the AV-range self-acting pressure, differential-pressure and flow controllers (AVP/AVPB/AVPQ/AVQ/AVQM/AVQT and related) and VM/VG globe valves. Flanged connection tailpieces (union-nut to valve, flange face to pipe). Nominal size DN 15; pressure class PN 25 (25 bar); valve-side union nut G 3/4. OEM designation "Tailpiece flange PN25 DN15 (G3/4)". Material Steel. Supplied as a pair (packing quantity 2 pcs). Net weight 1.643 kg; gross weight 1.643 kg. Contains lead per the REACH candidate list. OEM P/N 003H6915. EAN 5702421545003. Technical data quoted verbatim from store.danfoss.com (code 003H6915).
Technical Specifications
- Code number
- 003H6915
- Type
- Flange tailpieces
- Product group
- Tailpieces
- Function
- Flanged connection tailpieces (union-nut to valve, flange face to pipe)
- For valve size
- DN 15
- Connection size (valve-side union)
- G 3/4
- Connection types
- Flange
- Description (OEM)
- Tailpiece flange PN25 DN15 (G3/4)
- Diameter
- 15 mm
- Pressure class
- PN 25
- Pressure nominal
- 25 bar
- Material
- Steel
- Packing format
- Single pack
- Packing quantity (pcs per pack)
- 2
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- Net weight
- 1.643 kg
- Gross weight
- 1.643 kg
- EAN
- 5702421545003
- Connection size
- G 3/4
- Description
- Tailpiece flange PN25 DN15 (G3/4)
- Diameter [mm]
- 15 mm
- Packing quantity
- 2
- Pressure nominal [bar]
- 25 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
Standards & Compliance
- Material
- Steel
- Pressure Rating
- PN 25 (25 bar)
- HS Code
- 8481.90
Compatibility & Fitment
Genuine Danfoss accessory (003H6915) for the AV-range self-acting controllers and VM/VG globe valves. Confirm the nominal size / connection matches the valve and pipework before ordering. Pressure class PN 25.
Product Documentation
More from Danfoss
Danfoss
Danfoss Flange tailpiece set (2 pcs), PN 25, DN 20, union G 1, for AV-range self-acting controllers & VM/VG globe valves
003H6916
Danfoss
Danfoss Flange tailpiece set (2 pcs), PN 25, DN 25, union G 1 1/4, for AV-range self-acting controllers & VM/VG globe valves
003H6917
Danfoss

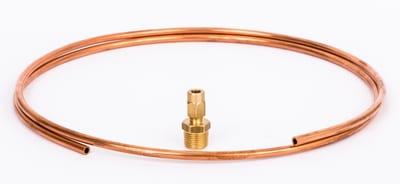

Danfoss Impulse tube, 6 mm copper, for AV(P)QM(-T) pressure/flow controllers
