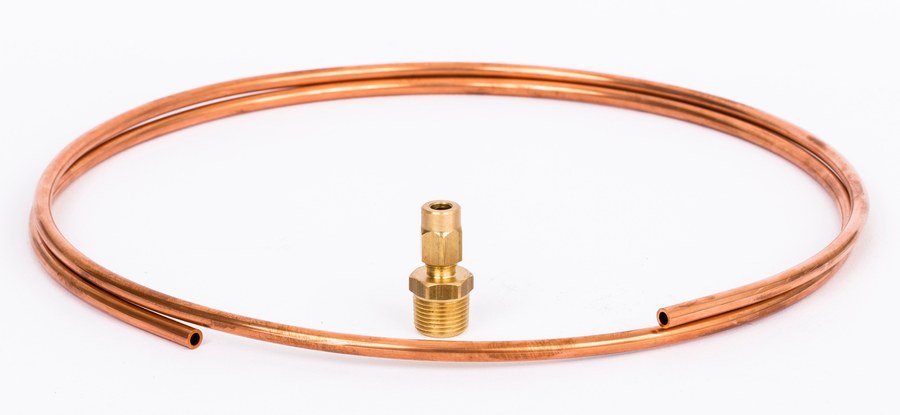

Danfoss Impulse tube, 6 mm copper, 1500 mm, for AV(P)QM(-T) pressure/flow controllers
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss impulse tube (003H6929) — genuine Danfoss accessory for the AV-range self-acting pressure, differential-pressure and flow controllers (AVP/AVPB/AVPQ/AVQ/AVQM/AVQT and related) and VM/VG globe valves. Copper impulse/control tube connecting the controller pressure actuator to the sensing point. Diameter 6 mm; length 1500 mm; pressure 25 bar. OEM designation "Imp.tube for press.red.for AV range,1pcs". Net weight 0.146 kg; gross weight 0.16 kg. Contains lead per the REACH candidate list. OEM P/N 003H6929. Technical data quoted verbatim from store.danfoss.com (code 003H6929). Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Code number
- 003H6929
- Type
- Impulse tubes
- Product group
- Accessories - SAC
- Function
- Copper impulse/control tube connecting the controller pressure actuator to the sensing point
- Connection size (valve-side union)
- R 1/2
- Description (OEM)
- Imp.tube for press.red.for AV range,1pcs
- Diameter
- 6 mm
- Pressure nominal
- 25 bar
- Length
- 1500 mm
- Material
- COPPER
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.146 kg
- Gross weight
- 0.16 kg
- EAN
- 5702421549667
- Connection size
- R 1/2
- Description
- Imp.tube for press.red.for AV range,1pcs
- Diameter [mm]
- 6 mm
- For product type
- AV(P)QM (T)
- Length [mm]
- 1500 mm
- Permissible media
- District heating/cooling circulation water
- Pressure nominal [bar]
- 25 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Suitable for valve of diameter [mm] [Max]
- 50 mm
- Suitable for valve of diameter [mm] [Min]
- 15 mm
- Suitable for valve of pressure [bar] [Max]
- 25 bar
- Suitable for valve of pressure [bar] [Min]
- 25 bar
Standards & Compliance
- Material
- COPPER
- Pressure Rating
- PN 25 (25 bar)
- HS Code
- 8481.90
Compatibility & Fitment
Genuine Danfoss accessory (003H6929) for the AV-range self-acting controllers and VM/VG globe valves. Confirm the nominal size / connection matches the valve and pipework before ordering. Pressure class PN 25.
