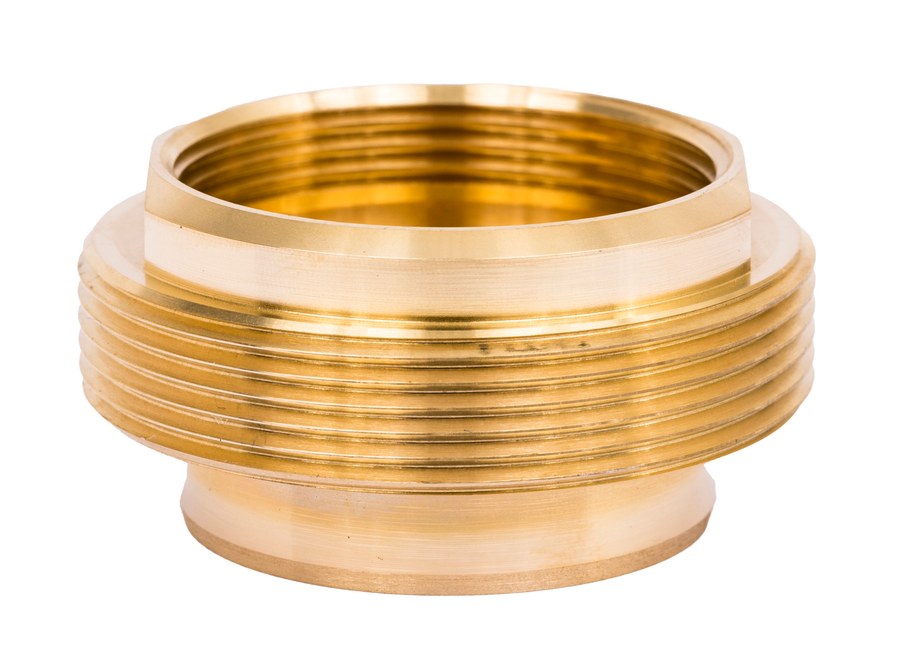

Danfoss Thread adapter M34 / M45, for AV-range self-acting controllers
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss thread adapter (003H6927) — genuine Danfoss accessory for the AV-range self-acting pressure, differential-pressure and flow controllers (AVP/AVPB/AVPQ/AVQ/AVQM/AVQT and related) and VM/VG globe valves. Threaded adapter between actuator/valve-neck thread sizes. OEM designation "Adapter M34 / M45". Material Brass CuZn40Pb2F43. Used to adapt between actuator/valve-neck thread sizes when combining AV-range controllers, actuators and thermostatic elements. Net weight 0.119 kg; gross weight 0.119 kg. Contains lead per the REACH candidate list. OEM P/N 003H6927. EAN 5702421544471. Technical data quoted verbatim from store.danfoss.com (code 003H6927).
Technical Specifications
- Code number
- 003H6927
- Type
- Adapters
- Product group
- Accessories - SAC
- Function
- Threaded adapter between actuator/valve-neck thread sizes
- Description (OEM)
- Adapter M34 / M45
- Pressure nominal
- 16 bar
- Material
- Brass CuZn40Pb2F43
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.119 kg
- Gross weight
- 0.119 kg
- EAN
- 5702421544471
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Suitable for valve of pressure
- 16 bar to 16 bar
- Description
- Adapter M34 / M45
- Pressure nominal [bar]
- 16 bar
- Suitable for valve of pressure [bar] [Max]
- 16 bar
- Suitable for valve of pressure [bar] [Min]
- 16 bar
Standards & Compliance
- Material
- Brass CuZn40Pb2F43
- Pressure Rating
- PN 25 (25 bar)
- HS Code
- 8481.90
Compatibility & Fitment
Genuine Danfoss accessory (003H6927) for the AV-range self-acting controllers and VM/VG globe valves. Confirm the nominal size / connection matches the valve and pipework before ordering. Pressure class PN 25.
