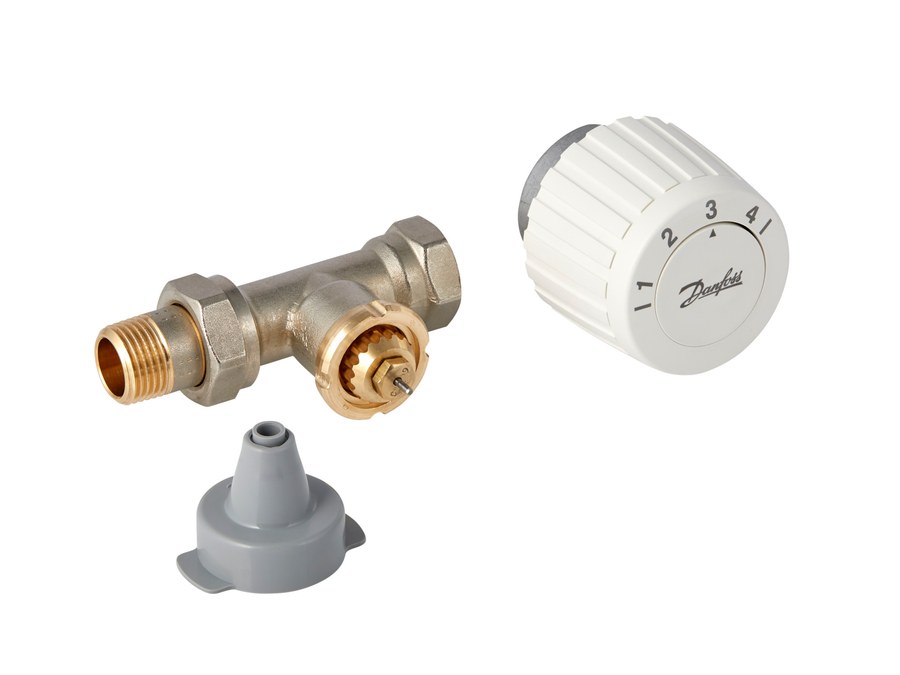

Danfoss FJVR Return-Temperature Limiter Set DN 15 Straight — Valve + Sensor
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FJVR return-temperature limiter set (RTL set), OEM order code 003L1080. Complete self-acting return-temperature limiter comprising an FJVR DN 15 straight-pattern valve body (inlet R 1/2, outlet Rp 1/2) and its matched FJVR return-temperature sensor, supplied together. Throttles a floor-heating or radiator return circuit to hold the set return temperature. Kvs 0.9 m³/h, max. differential pressure 1 bar, max. working pressure 10 bar, test pressure 16 bar, max. flow temperature 120 °C. Net weight 0.468 Kilogram. EAN 5702420084527. Data quoted verbatim from store.danfoss.com (code 003L1080).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003L1080
- Code number
- 003L1080
- Type
- FJVR sets
- Product group
- Return temperature limiters
- Contents of set
- Sensor, valve
- Valve size
- DN 15
- Design
- Straight
- Connection size (inlet)
- R 1/2
- Connection size (outlet)
- Rp 1/2
- Kvs value
- 0.9 m³/h
- Max. differential pressure range
- 1 bar
- Max. working pressure
- 10 bar
- Test pressure
- 16 bar
- Max. flow temperature
- 120 °C
- Net weight
- 0.468 Kilogram
- Gross weight
- 0.505 Kilogram
- EAN
- 5702420084527
- HS code
- 8481.80 (taps, cocks, valves for pipes)
- CE mark
- No
- China RoHS compliance
- Out of scope
- Connection size in
- R 1/2
- Connection size out
- Rp 1/2
- Description
- RTL set DN 15 straight, contains FJVR valve and FJVR sensor
- Differential pressure range [bar] [Max]
- 1 bar
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flow temperature [°C] [Max]
- 120 °C
- Kvs values [m³/h]
- 0.9 m³/h
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Test pressure [bar]
- 16 bar
- UL mark
- No
- Working pressure [bar] [Max]
- 10 bar
Standards & Compliance
- Size / Series
- DN 15
- Thread Standard
- ISO 7/1 (R / Rp)
- Pressure Rating
- Max. working pressure 10 bar; test pressure 16 bar; max. differential pressure 1 bar
- Temperature Range
- up to 120 °C
- Classification / Approval
- CE
- HS Code
- 8481.80
Compatibility & Fitment
Complete return-temperature limiter set (FJVR valve + FJVR sensor) for a DN 15 straight return circuit. No separate sensor purchase needed. Confirm valve size (DN 15) and design (Straight) against the pipework before ordering.
