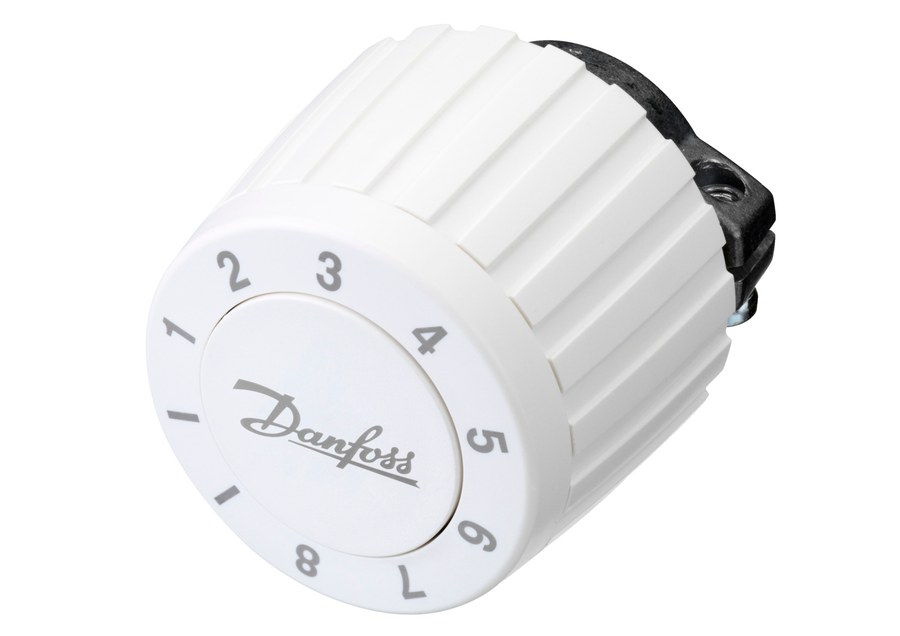

Danfoss FJVR Return-Temperature Limiter Sensor 10–80 °C (003L1077)

Danfoss FJVR return-temperature limiter sensor, OEM order code 003L1077. Self-acting thermostatic head with a built-in sensor that mounts on an FJVR return-temperature limiter valve body (FJVR connection) and throttles the valve to hold the set return temperature. Adjustable setting range 10 °C to 80 °C (no shut-off position), white ral 9016 cap. No auxiliary power required. Net weight 0.139 Kilogram. EAN 5702420073712. Data quoted verbatim from store.danfoss.com (code 003L1077).

Brand

Danfoss

Part number

003L1077

Code number

003L1077

Type

FJVR Sensor

Product group

Return temperature limiters

Function

Self-acting return-temperature limiter sensor / thermostatic head for FJVR valves

Connection type to valve

FJVR

Sensor type

Built-in sensor

Sensor setting-temperature range

10 °C to 80 °C

Shut-off function

No

Colour

White RAL 9016

Net weight

0.139 Kilogram

Gross weight

0.139 Kilogram

EAN

5702420073712

HS code

9032.10 (thermostats)

CE mark

No

China RoHS compliance

Out of scope

Description

Return temperature limiter sensor, type FJVR, should be combined with FJVR valve

Design

Return temperature limiter

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Sensor setting temperature [°C] [Max]

80 °C

Sensor setting temperature [°C] [Min]

10 °C

UL mark

No

Temperature Range

10 °C to 80 °C (setting range)

Classification / Approval

CE

HS Code

9032.10
