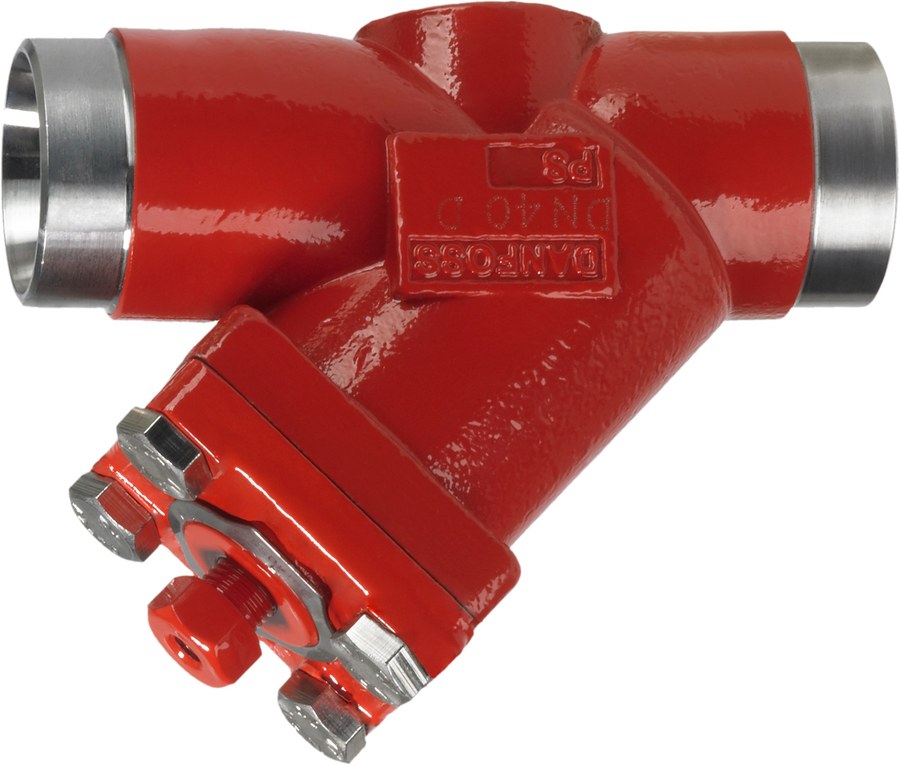

Danfoss FIA 32 straightway strainer housing, 32 mm (1 1/4 in) butt weld ASME B 36.10M Schedule 80, 52 bar, steel

Danfoss FIA 32 strainer (filter) housing for the SVL Flexline industrial-refrigeration range, store code 148B5552, straightway body. The FIA holds a replaceable strainer insert that protects downstream components from dirt and weld slag during commissioning and operation; the insert is exchanged through a bolted cover. This code is nominal size 32 mm (1 1/4 in) with butt weld connections to ASME B 36.10M Schedule 80. Steel housing for R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). With the µ100 plain insert the flow coefficient Kv is about 17.6 m3/h. The FIA INS strainer insert (38/72/100/150/250/500 micron, plain or pleated) is ordered separately. Specifications per Danfoss store code 148B5552.

Type

Strainer housing, FIA 32 (SVL Flexline)

Code number

148B5552

Series

FIA (SVL Flexline)

Nominal size

32 mm (1 1/4 in)

Flow pattern

Straightway

Connection

butt weld (ASME B 36.10M Schedule 80)

Housing material

Steel

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 150 C (-76 to 302 F)

Flow coefficient Kv (with µ100 plain insert)

~17.6 m3/h

Filter element

separate FIA INS strainer insert (38/72/100/150/250/500 micron, plain or pleated) — not included

Equipment

bolted cover

Conformity assessment

PED 2014/68/EU, Category II (DN 32)

Approvals

CE

Compliance

EU RoHS, China RoHS

EAN

5702428479424

Net weight

2.57 Kilogram

Product group

Strainers

Approval

CE

CE mark

Yes

China RoHS compliance

Yes

Colour Paint

Reddish brown

Connection Code

(2002:S80:32)

Connection material

Steel

Connection standard

ASME B 36.10M SCHEDULE 80

Cv value [gal/min] 100 plain

80.13 gal/min

Cv value [gal/min] 100 pleated

105.23 gal/min

Cv value [gal/min] 150 plain

77.49 gal/min

Cv value [gal/min] 38 plain

85.86 gal/min

Cv value [gal/min] 72 plain

83.21 gal/min

Cv value [gal/min] 72 pleated

108.75 gal/min

Direction

Straightway

EU RoHS compliance

Yes

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Inlet connection size [in]

1 1/4 in

Inlet connection size [mm]

32 mm

Inlet connection type

Butt weld

Kv value [m3/h] µ100 plain

17.6 m³/h

Kv value [m3/h] µ150 plain

18.2 m³/h

Kv value [m3/h] µ150 pleated

23.9 m³/h

Kv value [m3/h] µ250 plain

18.9 m³/h

Kv value [m3/h] µ250 pleated

24.7 m³/h

Kv value [m3/h] µ500 plain

19.5 m³/h

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Outlet connection size [in]

1 1/4 in

Outlet connection size [mm]

32 mm

Outlet connection type

Butt weld

PED category

II

REACH Candidate List substances

No

Refrigerants

R113

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-76 °F

Valve version

Standard version

Standard

ASME B 36.10M Schedule 80

Size / Series

32 mm

Material

Steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8421.39
