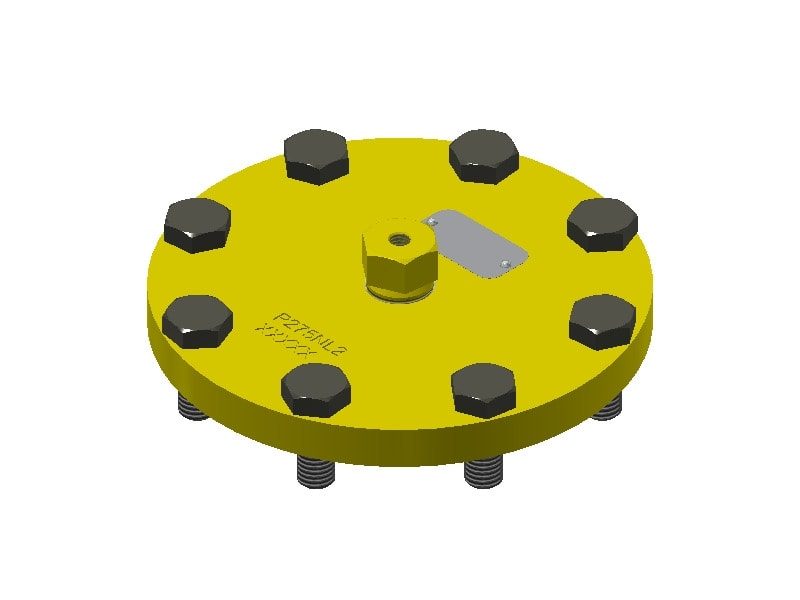

Danfoss FIA 100 function module (Top Complete), fits SVL Flexline FIA 100 strainer, 65 bar (code 148B5788)
Danfoss · HVAC & Refrigeration · Filters & Driers
Danfoss FIA 100 function module (also called Top Complete) for the SVL Flexline modular industrial-refrigeration platform, store code 148B5788. The function module is the complete field-serviceable strainer top / cover assembly — supplied as the top part with one gasket and the mounting bolts — that fits the matching FIA 100 strainer housing. It is the field-serviceable cover assembly (cover, one gasket and bolts) that closes the matching FIA strainer housing and retains the replaceable strainer insert; it lets the housing be opened and re-sealed for insert cleaning without cutting the housing out of the line. It is the repair/replacement assembly, not a complete valve and not a loose gasket, so the function can be renewed without cutting the housing out of the line. For R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 65 bar g (943 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 2.753 kg, gross weight 3.294 kg. Specifications per Danfoss store code 148B5788.
Specifications
- Part number
- 148B5788
- HS code
- 8421.99
- Pressure rating
- 65 bar
- Temperature range
- -60 to 150 C
Compatibility
Danfoss SVL Flexline FIA 100 function module (Top Complete). Mounts on the matching FIA 100 strainer housing of the same nominal-size class. Function modules are size-specific — confirm the housing size class (100) before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating, SCA-X/CHV-X check and FIA strainer components of the same size.
Standards
Approvals
