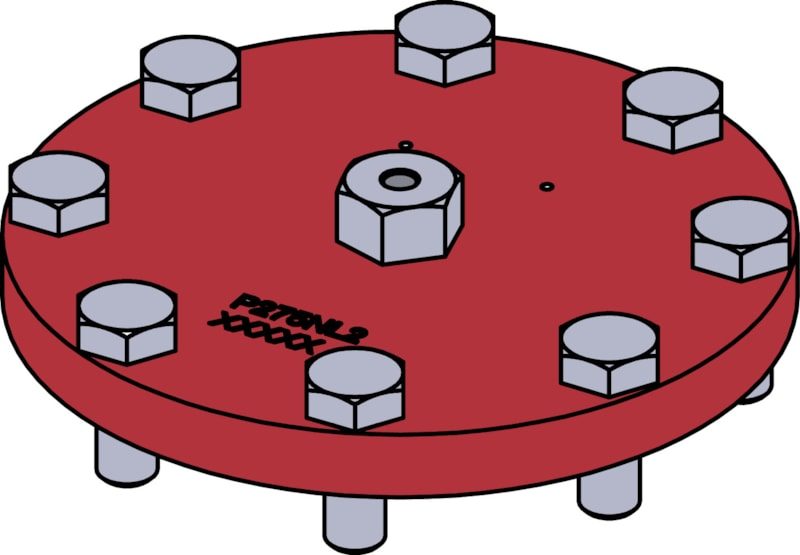

Danfoss FIA 125 function module (Top Complete), fits SVL Flexline FIA 125 strainer, 65 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA 125 function module (also called Top Complete) for the SVL Flexline modular industrial-refrigeration platform, store code 148B5789. The function module is the complete field-serviceable strainer top / cover assembly — supplied as the top part with one gasket and the mounting bolts — that fits the matching FIA 125 strainer housing. It is the field-serviceable cover assembly (cover, one gasket and bolts) that closes the matching FIA strainer housing and retains the replaceable strainer insert; it lets the housing be opened and re-sealed for insert cleaning without cutting the housing out of the line. It is the repair/replacement assembly, not a complete valve and not a loose gasket, so the function can be renewed without cutting the housing out of the line. For R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 65 bar g (943 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 5.442 kg, gross weight 6.483 kg. Specifications per Danfoss store code 148B5789.
Technical Specifications
- Type
- FIA 125 function module (Top Complete)
- Code number
- 148B5789
- Fits
- SVL Flexline FIA 125 strainer
- Function
- strainer top / cover assembly
- Parts included
- top part, 1 gasket, bolts
- Maximum working pressure
- 65 bar g (943 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Weight
- net weight 5.442 kg, gross weight 6.483 kg
- Approvals
- CE
- EAN
- 5702428500463
- Brand
- SVL Flexline
- Product group
- Strainers
- Type designation
- Top Complete
- Max. working pressure
- 65.0 bar
- Temperature range
- -60 °C to 150 °C
- Refrigerants
- R113; R114; R1150; R1233zd(E); R1234yf; R1234ze(E); R125; R1270; R1336mzz(Z); R134a; R152a; R170; R22; R227ea; R23; R236fa; R245fa; R290; R32; R401A; R402A; R402B; R404A; R407A; R407B; R407C; R407F; R407H; R408A; R409A; R410A; R413A; R417A; R421A; R422A; R422B; R422D; R427A; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R503; R507A; R508B…
- REACH candidate-list substances
- No
- EU RoHS compliance
- Yes
- Net weight
- 5.442 Kilogram
- Approval
- CE
- China RoHS compliance
- Yes
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- FIA 125
Standards & Compliance
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.99
Compatibility & Fitment
Danfoss SVL Flexline FIA 125 function module (Top Complete). Mounts on the matching FIA 125 strainer housing of the same nominal-size class. Function modules are size-specific — confirm the housing size class (125) before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating, SCA-X/CHV-X check and FIA strainer components of the same size.
