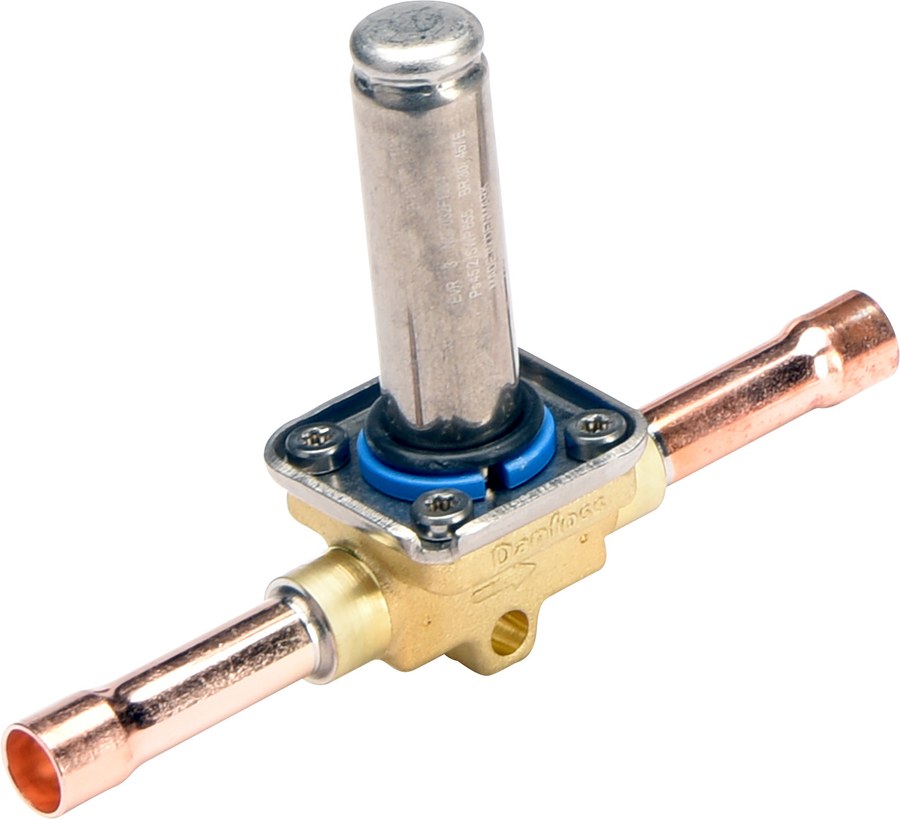

Danfoss EVR 3 solenoid valve, 3/8 in ODF solder, brass body, 45.2 bar, NC (code 032F1157)
Danfoss · HVAC & Refrigeration · Solenoid Valves
Danfoss EVR 3 solenoid valve for industrial and commercial refrigeration, store code 032F1157. NC (normally closed) valve, servo-operated, with 3/8 in ODF solder connections. Flow coefficient Kv 0.27 m³/h (0.31 gal/min Cv); orifice 3.3 mm. Maximum working pressure 45.2 bar (655 psig); media temperature range -40 to 105 °C. Body material: Brass body, NBR/FKM seals. Suitable for HFC/HCFC and hydrocarbon refrigerants (R22, R134a, R404A, R407C, R410A, R448A/R449A, R507A, R513A, R290, R600a, R1234yf/ze, R32 and others). Coil ordered separately. PED 2014/68/EU Art. 4 par. 3 (below category threshold). C UL US Listed. Weight: net 0.176 kg, gross 0.241 kg. Specifications per Danfoss store code 032F1157.
Specifications
- Part number
- 032F1157
- HS code
- 8481.80
- Material
- Brass body, NBR/FKM seals
- Pressure rating
- 45.2 bar
- Temperature range
- -40 to 105 °C
- Standard
- ODF (solder)
- Standard size
- 3/8 in
Compatibility
Danfoss EVR 3 refrigeration solenoid valve. Coil is ordered separately — match coil voltage/frequency and connector to the installation. Refrigerant and pressure compatibility per the Danfoss data sheet; verify against your system specification before ordering.
Approvals
