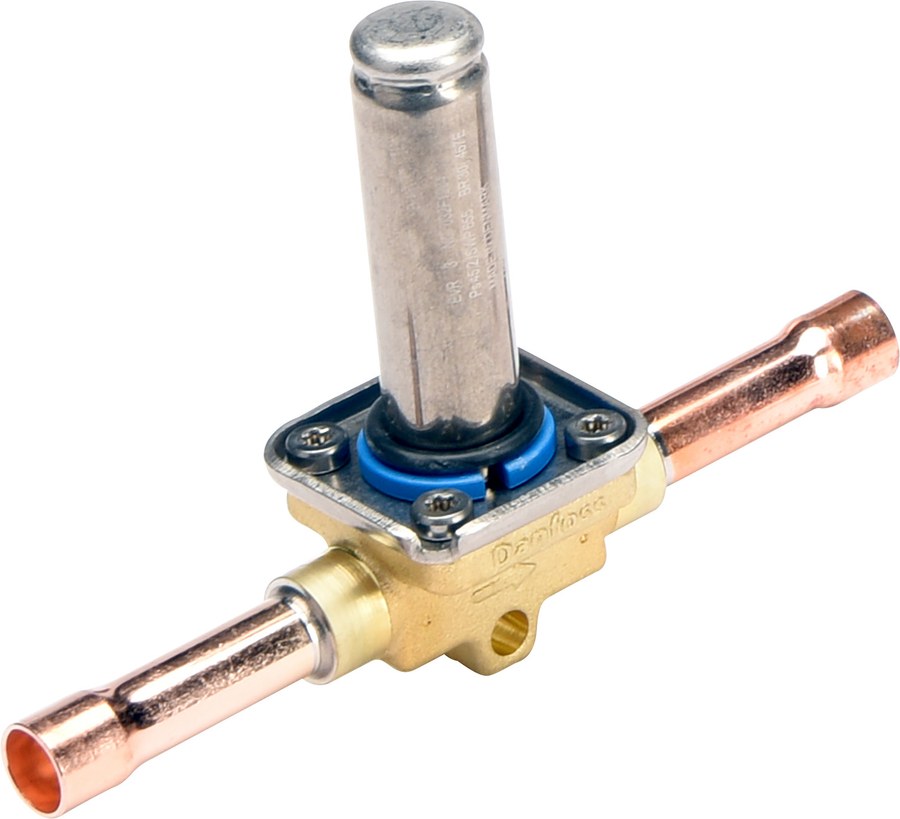

Danfoss EVR 3 solenoid valve, 1/4 in ODF solder, brass body, 45.2 bar, NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVR 3 solenoid valve for industrial and commercial refrigeration, store code 032F1206. NC (normally closed) valve, servo-operated, with 1/4 in ODF solder connections. Flow coefficient Kv 0.27 m³/h (0.31 gal/min Cv); orifice 3.3 mm. Maximum working pressure 45.2 bar (655 psig); media temperature range -40 to 105 °C. Body material: Brass body, NBR/FKM seals. Suitable for HFC/HCFC and hydrocarbon refrigerants (R22, R134a, R404A, R407C, R410A, R448A/R449A, R507A, R513A, R290, R600a, R1234yf/ze, R32 and others). Coil ordered separately. PED 2014/68/EU Art. 4 par. 3 (below category threshold). UL approved. Weight: net 0.164 kg, gross 0.212 kg. Specifications per Danfoss store code 032F1206.
Technical Specifications
- Type
- EVR 3 solenoid valve
- Code number
- 032F1206
- Connection
- 1/4 in ODF solder, ODF (solder)
- Function
- NC (normally closed)
- Valve operation
- Servo-operated
- Orifice size
- 3.3 mm
- Flow coefficient
- Kv 0.27 m³/h (0.31 gal/min Cv)
- Maximum working pressure
- 45.2 bar (655 psig)
- MWP (PED compliant)
- 49 bar
- Media temperature range
- -40 to 105 °C
- Body material
- Brass body, NBR/FKM seals
- Applicable refrigerants
- HFC/HCFC and hydrocarbon refrigerants (R22, R134a, R404A, R407C, R410A, R448A/R449A, R507A, R513A, R290, R600a, R1234yf/ze, R32 and others)
- Weight
- net 0.164 kg, gross 0.212 kg
- Coil
- ordered separately
- Approvals
- UL, EAC
- EAN
- 5702422021995
- Net weight
- 0.164 Kilogram
- Product group
- Solenoid valves
- Actuator system [mm]
- 13.5 mm
- Ambient temperature
- -40 - 80 °C
- Ambient temperature range [°F] [max]
- 175 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- EAC
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection Code
- (3002:X:6)
- Cv value [gal/min]
- 0.31 gal/min
- Direction
- Straightway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Fluid Group
- 1
- Identical product
- 032F1270
- Inlet connection type
- Solder, ODF
- Inlet size [in]
- 1/4 in
- Kv value [m³/h]
- 0.27 m³/h
- Lubricants compatibility
- AB
- Manual operation option
- No
- Max. Working Pressure [bar]
- 45.2 bar
- Max. Working Pressure [psig]
- 655 psig
- MaxOPD[bar] 10W AC
- 38 bar
- MaxOPD[psi] 10W AC
- 550 psi
- Medium temp. range note
- Defrost max 130°C/265°F
- Medium temperature range [°C] [max]
- 105 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 221 °F
- Medium temperature range [°F] [min]
- -40 °F
- MinODP [bar]
- 0 bar
- MOPD[bar/psi]
- Coil Dependent
- MWP [bar] PED compliant
- 49 bar
- Orifice size [mm]
- 3.3 mm
- Outlet connection type
- Solder, ODF
- Outlet size [in]
- 1/4 in
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R1234yf
- Type designation
- Solenoid valve, Solder
- UL approved refrigerants
- R290
Standards & Compliance
- Standard
- ODF (solder)
- Size / Series
- 1/4 in
- Material
- Brass body, NBR/FKM seals
- Pressure Rating
- 45.2 bar
- Temperature Range
- -40 to 105 °C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss EVR 3 refrigeration solenoid valve. Coil is ordered separately — match coil voltage/frequency and connector to the installation. Refrigerant and pressure compatibility per the Danfoss data sheet; verify against your system specification before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss EVR 3 solenoid valve, 6 mm ODF solder, brass body, 45.2 bar, NC
032F1207
Danfoss
Danfoss EVRS 3 solenoid valve, 3/8 in butt weld EN 10220, stainless steel, 50 bar, NC
032F3080
Danfoss
Danfoss EVRS 3 solenoid valve, G 1/4 thread ISO 228-1 (G), stainless steel, 50 bar, NC
032F3081
Danfoss
Danfoss EVRS 10 solenoid valve, 1/2 in butt weld EN 10220, stainless steel, 50 bar, NC
032F3082
Danfoss
Danfoss EVRST 10 solenoid valve, 1/2 in butt weld EN 10220, stainless steel, 50 bar, NC
032F3083
Danfoss

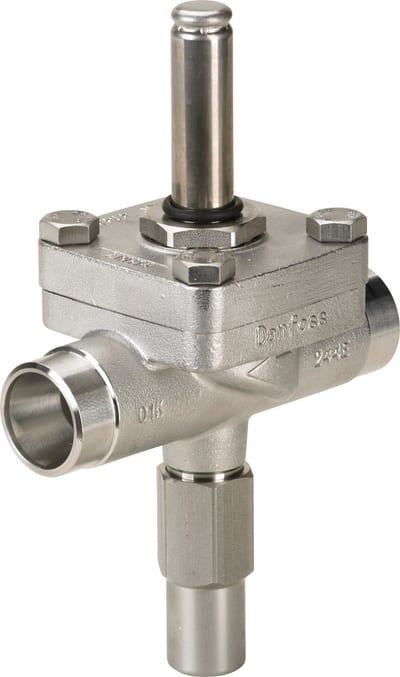

Danfoss EVRS 15 solenoid valve, 3/4 in butt weld EN 10220, stainless steel, 50 bar, NC
