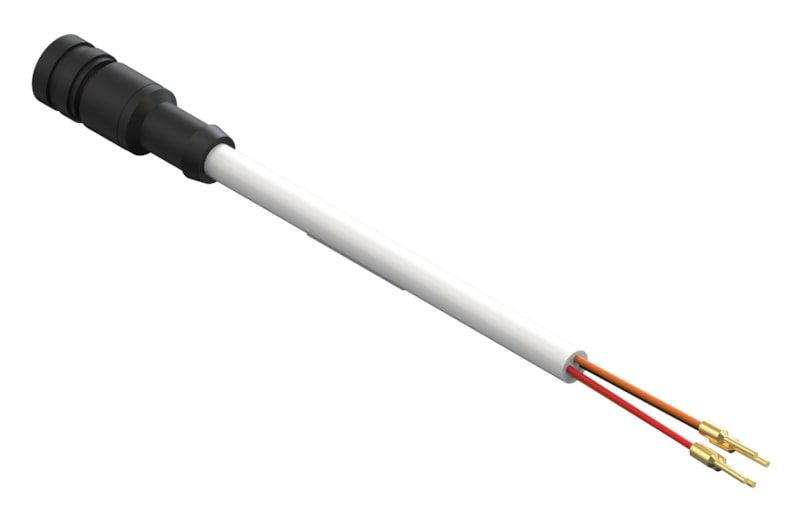

Danfoss electric valve connection cable, M12 female straight, 12.2 m
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss connection cable (code 034G7078) for electrically operated refrigeration valves and actuators. 12.2 m twisted-pair PVC cable terminated with an M12 female straight (straightway) connector. Operating temperature -40 to +80 C, enclosure rating IP67. Accessory only; the valve and actuator are ordered separately.
Technical Specifications
- Type
- Electric valve accessory — connection cable
- Code number
- 034G7078
- Cable length
- 12.2 m (40 ft)
- Connector
- M12, female, straight (straightway)
- Cable construction
- twisted pair, PVC insulation
- Operating temperature
- -40 to +80 C
- Enclosure rating
- IP67
- Packing format
- multipack (8 pieces)
- Net weight
- 0.78 kg
- Gross weight
- 0.894 kg
- Approvals
- CE, EAC, UKCA
- EAN
- 5715162466032
- Product group
- Electric valve accessories
- Approval
- CE
- Cable feature
- Twisted pair
- Cable insulation material
- PVC
- Cable length [ft]
- 40 ft
- Cable length [m]
- 12.2 m
- CE mark
- Yes
- China RoHS compliance
- Yes
- Electrical conn. Male/Female
- Female
- Electrical connection
- M12
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes
- Operating temperature [°C] [max]
- 80 °C
- Operating temperature [°C] [min]
- -40 °C
- Operating temperature [°F] [max]
- 176 °F
- Operating temperature [°F] [min]
- -40 °F
- REACH Candidate List substances
- No
- Type designation
- Cable
- Used for product
- ETS 100
- Used for product comments
- Straightway connector
Standards & Compliance
- Temperature Range
- -40 to +80 C
- IP Rating
- IP67
- HS Code
- 8544.42
Compatibility & Fitment
M12 female connection cable for Danfoss electrically operated valves and actuators (ETS / KVS electric expansion valve families). Confirm connector keying, length and pin-out against your valve actuator before ordering.
