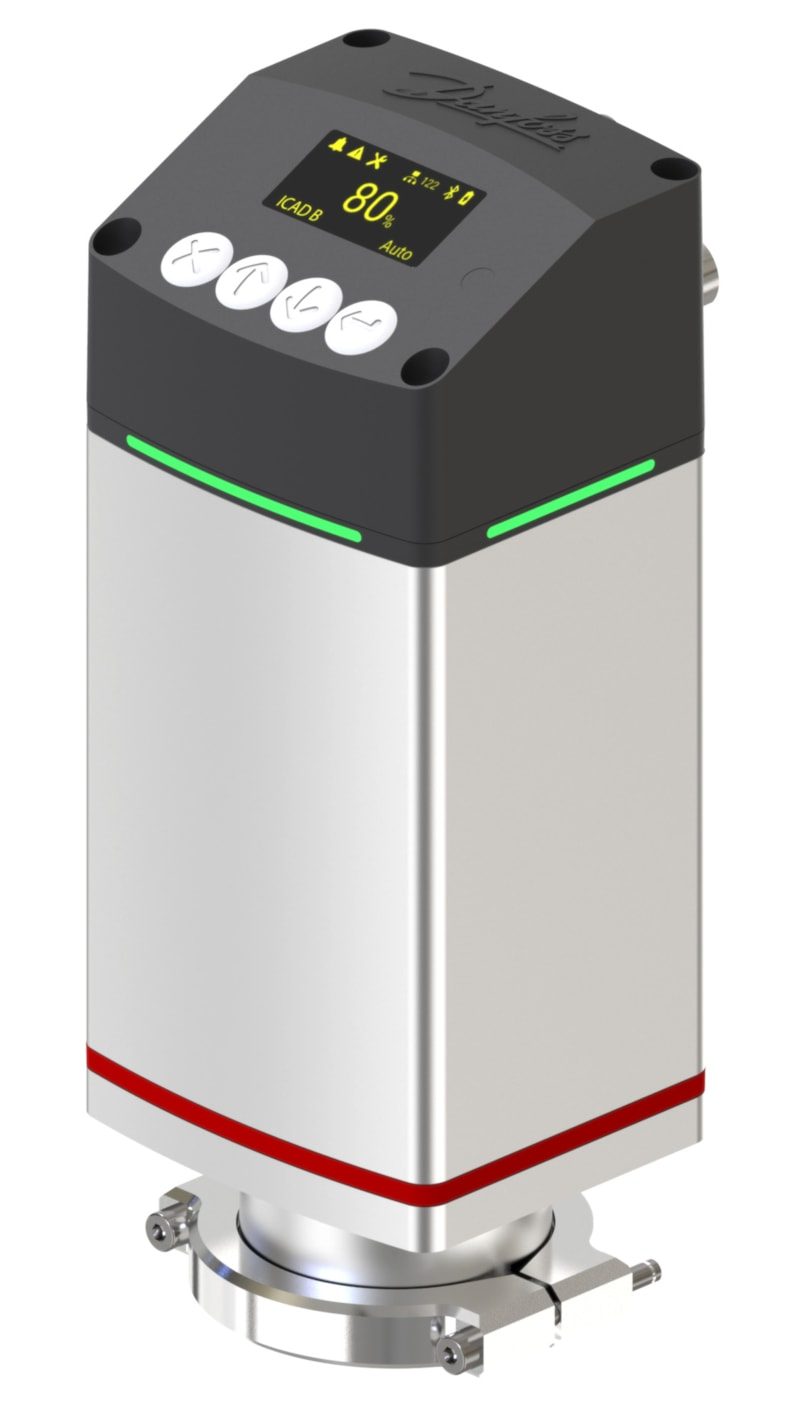

Danfoss ICAD 1200B electric actuator (Bluetooth, display, RS485) for ICM motor-operated valves
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICAD 1200B electric actuator (code number 027H0490) for the larger ICM motor-operated valves (ICM 40 to ICM 150), with Bluetooth, onboard OLED display and RS485 communication. 24 V DC, IP67. Drives the ICM function module via a magnet coupling with continuous position feedback for pressure and temperature regulation in industrial refrigeration. Supplied without cables.
Technical Specifications
- Brand
- Danfoss
- Type
- ICAD 1200B electric actuator (ICAD), without cables
- Code number
- 027H0490
- Supply voltage
- 24 V DC
- Communication interface
- Bluetooth; onboard display (OLED); RS485
- Enclosure rating
- IP67 (~NEMA 6)
- Electrical connection
- M12 connectors
- Used for
- ICM 40, ICM 50, ICM 65, ICM 100, ICM 125, ICM 150, CVE
- Ambient temperature range
- -30 to 50 °C (-22 to 122 °F)
- Housing material
- aluminium; top part PBT thermoplastic
- EAN
- 5715162687215
- Net weight
- 2.295 kg; gross weight: 2.675 kg
- EU RoHS / China RoHS
- compliant (with exemptions)
- Approvals
- CE, UL, RED (EU Radio Equipment Directive)
- Product group
- Press. and temp. regul. valves
- Ambient temperature range [°C] [max]
- 50 °C
- Ambient temperature range [°C] [min]
- -30 °C
- Ambient temperature range [°F] [max]
- 122 °F
- Ambient temperature range [°F] [min]
- -22 °F
- Analog input current opt. [mA] [max]
- 20 mA
- Analog input current opt. [mA] [min]
- 4 mA
- Analog input Volt opt. [V] d.c [max]
- 10 V
- Analog input Volt opt. [V] d.c [min]
- 2 V
- Analog output options [mA] [max]
- 20 mA
- Analog output options [mA] [min]
- 4 mA
- Approval
- CE
- Approval document
- FCC ID: Y82-DA14531MOD
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Communication type
- Bluetooth
- Dig. Output-Ext supply [V] d.c [max]
- 24 V
- Dig. Output-Ext supply [V] d.c [min]
- 5 V
- Digital Output-Load [Ohm]
- 60 Ohm
- Digital Output-Max Load [mA]
- 50 mA
- Digital outputs (DO) [pc]
- 3 pc
- Display type
- OLED
- Electrical connector
- M12
- Enclosure rating IP
- IP67
- Enclosure rating Nema (~)
- 6
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Load Analog input Current[Ohm]
- 250 Ohm
- Load Analog input Voltage[Ohm]
- 10000 Ohm
- Load Analog output max [Ohm]
- 500 Ohm
- Power supply
- Class 2
- Product version
- 01
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Supply voltage [V] DC
- 24 V
- Supply voltage load [A]
- 2 A
- Supply voltage tolerance [%] [max]
- 10 %
- Supply voltage tolerance [%] [min]
- -15 %
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- UL mark
- Yes
- Used for product
- ICM 100
Standards & Compliance
- Temperature Range
- -30 to 50 °C
- IP Rating
- IP67
- Classification / Approval
- CE, UL, RED
- HS Code
- 9032.89
Compatibility & Fitment
Fits ICM 40, ICM 50, ICM 65, ICM 100, ICM 125, ICM 150 and CVE. RS485 communication variant with Bluetooth and onboard display. Connect via M12 (order cable set separately). Confirm ICM size and the required communication interface before ordering.
