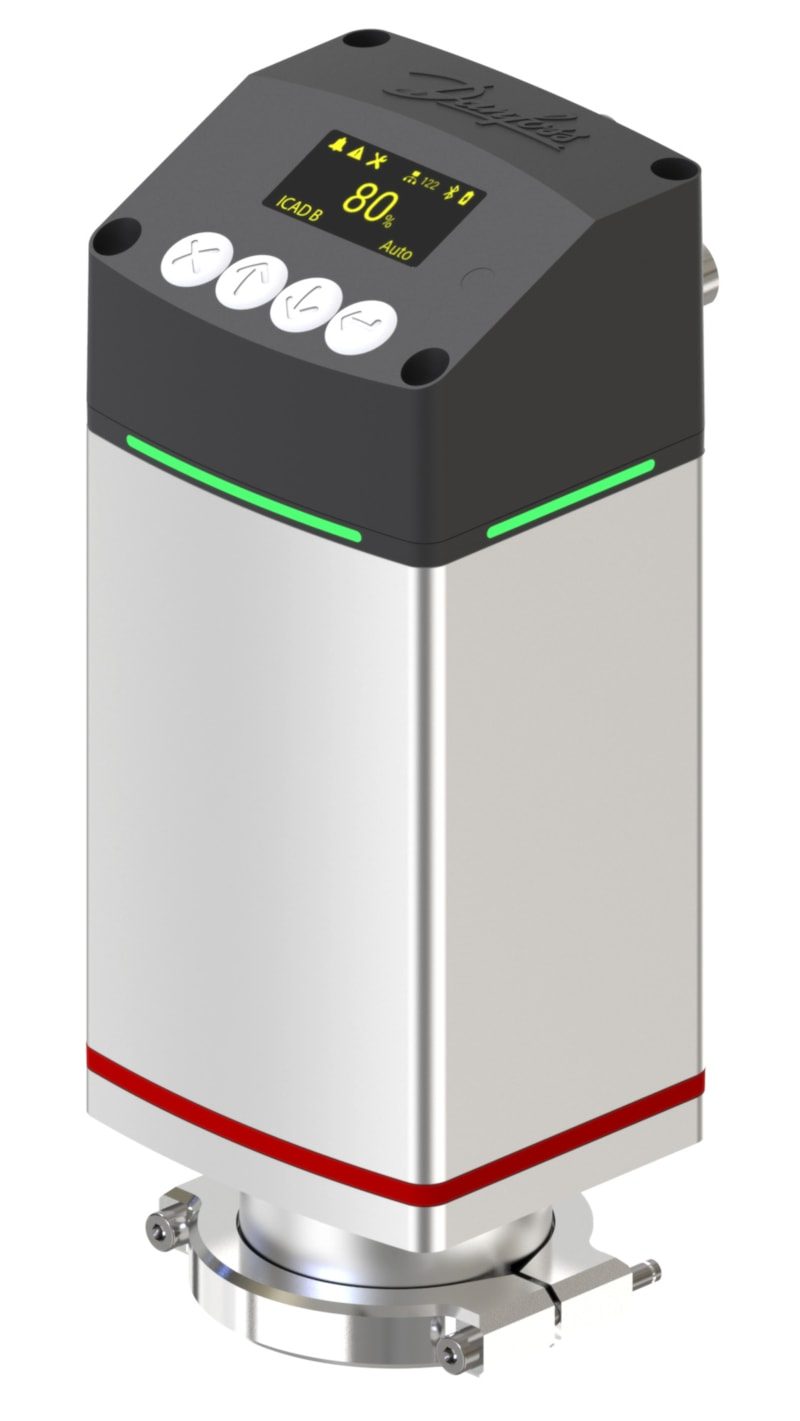

Danfoss ICAD 1200B electric actuator (display, RS485) for ICM motor-operated valves

Danfoss ICAD 1200B electric actuator (code number 027H0492) for the larger ICM motor-operated valves (ICM 40 to ICM 150), with onboard OLED display and RS485 communication. 24 V DC, IP67. Drives the ICM function module via a magnet coupling with continuous position feedback for pressure and temperature regulation in industrial refrigeration. Supplied without cables.

Brand

Danfoss

Type

ICAD 1200B electric actuator (ICAD), without cables

Code number

027H0492

Supply voltage

24 V DC

Communication interface

onboard display (OLED); RS485

Enclosure rating

IP67 (~NEMA 6)

Electrical connection

M12 connectors

Used for

ICM 40, ICM 50, ICM 65, ICM 100, ICM 125, ICM 150, CVE

Ambient temperature range

-30 to 50 °C (-22 to 122 °F)

Housing material

aluminium; top part PBT thermoplastic

EAN

5715162513675

Net weight

2.295 kg; gross weight: 2.675 kg

EU RoHS / China RoHS

compliant (with exemptions)

Approvals

CE, UL, RED (EU Radio Equipment Directive)

Product group

Press. and temp. regul. valves

Ambient temperature range [°C] [max]

50 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

122 °F

Ambient temperature range [°F] [min]

-22 °F

Analog input current opt. [mA] [max]

20 mA

Analog input current opt. [mA] [min]

4 mA

Analog input Volt opt. [V] d.c [max]

10 V

Analog input Volt opt. [V] d.c [min]

2 V

Analog output options [mA] [max]

20 mA

Analog output options [mA] [min]

4 mA

Approval

CE

CE mark

Yes

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.1

Comments

NON-BLUETOOTH VERSION

Communication type

Display

Dig. Output-Ext supply [V] d.c [max]

24 V

Dig. Output-Ext supply [V] d.c [min]

5 V

Digital Output-Load [Ohm]

60 Ohm

Digital Output-Max Load [mA]

50 mA

Digital outputs (DO) [pc]

3 pc

Display type

OLED

Electrical connector

M12

Enclosure rating IP

IP67

Enclosure rating Nema (~)

6

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a)

Function

Digital output

Load Analog input Current[Ohm]

250 Ohm

Load Analog input Voltage[Ohm]

10000 Ohm

Load Analog output max [Ohm]

500 Ohm

Output configuration

Open drain

Power supply

Class 2

Product version

01

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Supply voltage [V] DC

24 V

Supply voltage load [A]

2 A

Supply voltage tolerance [%] [max]

10 %

Supply voltage tolerance [%] [min]

-15 %

Temperature range [°C] [max]

120 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

248 °F

Temperature range [°F] [min]

-76 °F

UL mark

Yes

Used for product

ICM 100

Temperature Range

-30 to 50 °C

IP Rating

IP67

Classification / Approval

CE, UL, RED

HS Code

9032.89
