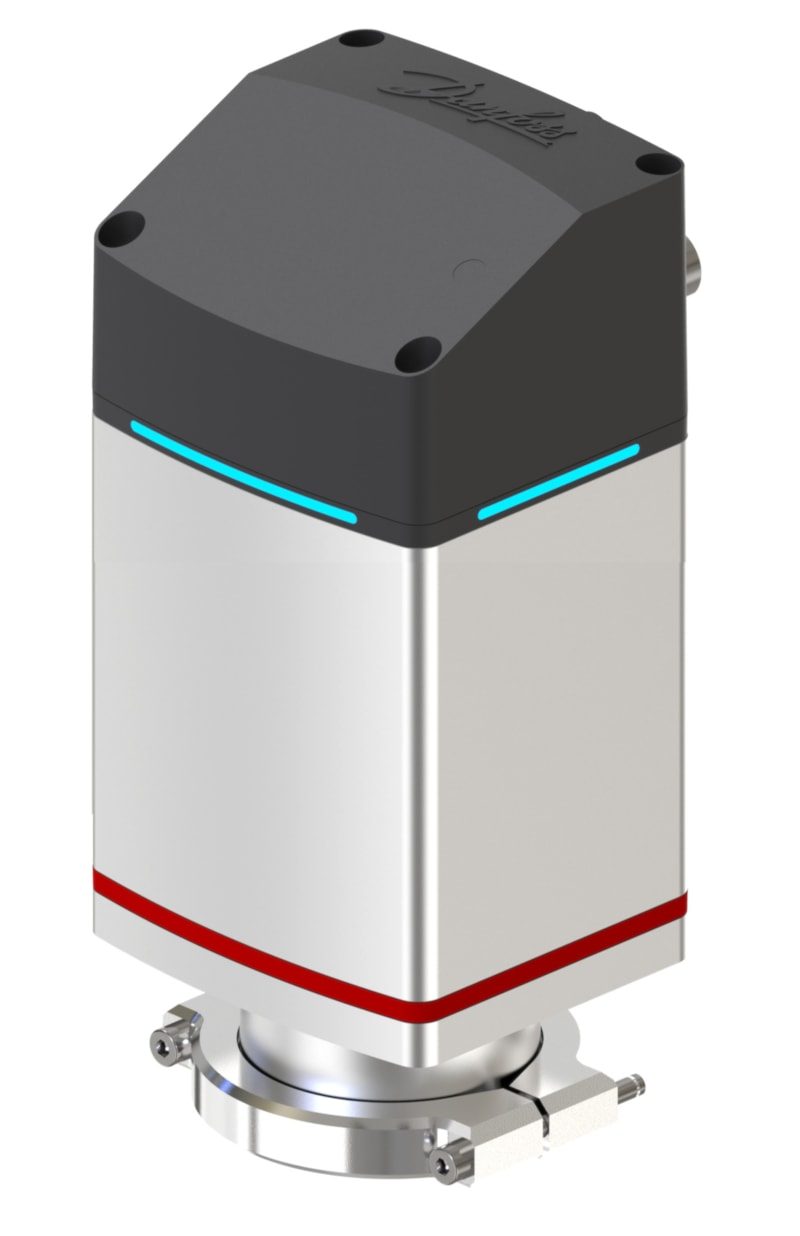

Danfoss ICAD 600BTS electric actuator (Bluetooth, Ethernet) for ICMTS motor-operated valves
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICAD 600BTS electric actuator (code number 027H0499) for ICMTS transcritical motor-operated valves, with Bluetooth and Ethernet communication, without an onboard display. 24 V DC, IP67. Drives the ICMTS function module via a magnet coupling with continuous position feedback for pressure and temperature regulation in transcritical CO2 refrigeration. Supplied without cables.
Technical Specifications
- Brand
- Danfoss
- Type
- ICAD 600BTS electric actuator (ICAD), without cables
- Code number
- 027H0499
- Supply voltage
- 24 V DC
- Communication interface
- Bluetooth; Ethernet (without display)
- Enclosure rating
- IP67 (~NEMA 6)
- Electrical connection
- M12 connectors
- Used for
- ICMTS 20A, ICMTS 20A33, ICMTS 20B, ICMTS 20B66, ICMTS 20C, ICMTS 50A, ICMTS 80A, ICMTS 80B
- Ambient temperature range
- -30 to 50 °C (-22 to 122 °F)
- Housing material
- aluminium; top part PBT thermoplastic
- EAN
- 5715162513804
- Net weight
- 1.725 kg; gross weight: 2.105 kg
- EU RoHS / China RoHS
- compliant (with exemptions)
- Approvals
- CE, UL, RED (EU Radio Equipment Directive)
- Product group
- Press. and temp. regul. valves
- Ambient temperature range [°C] [max]
- 50 °C
- Ambient temperature range [°C] [min]
- -30 °C
- Ambient temperature range [°F] [max]
- 122 °F
- Ambient temperature range [°F] [min]
- -22 °F
- Analog input current opt. [mA] [max]
- 20 mA
- Analog input current opt. [mA] [min]
- 4 mA
- Analog input Volt opt. [V] d.c [max]
- 10 V
- Analog input Volt opt. [V] d.c [min]
- 2 V
- Analog output options [mA] [max]
- 20 mA
- Analog output options [mA] [min]
- 4 mA
- Approval
- CE
- Approval document
- FCC ID: Y82-DA14531MOD
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Communication type
- Bluetooth
- Dig. Output-Ext supply [V] d.c [max]
- 24 V
- Dig. Output-Ext supply [V] d.c [min]
- 5 V
- Digital Output-Load [Ohm]
- 60 Ohm
- Digital Output-Max Load [mA]
- 50 mA
- Digital outputs (DO) [pc]
- 3 pc
- Electrical connector
- M12
- Enclosure rating IP
- IP67
- Enclosure rating Nema (~)
- 6
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Function
- Digital output
- Load Analog input Voltage[Ohm]
- 10000 Ohm
- Load Analog output max [Ohm]
- 500 Ohm
- Output configuration
- Open drain
- Power supply
- Class 2
- Product version
- 01
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Supply voltage [V] DC
- 24 V
- Supply voltage load [A]
- 1.2 A
- Supply voltage tolerance [%] [max]
- 10 %
- Supply voltage tolerance [%] [min]
- -15 %
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- UL mark
- Yes
- Used for product
- ICMTS20A
Standards & Compliance
- Temperature Range
- -30 to 50 °C
- IP Rating
- IP67
- Classification / Approval
- CE, UL, RED
- HS Code
- 9032.89
Compatibility & Fitment
Fits ICMTS 20A, ICMTS 20A33, ICMTS 20B, ICMTS 20B66, ICMTS 20C, ICMTS 50A, ICMTS 80A and ICMTS 80B. Bluetooth + Ethernet communication variant without an onboard display (the 027H0496 is the Bluetooth + display + Ethernet variant, the 027H0498 the Bluetooth + RS485 variant without display). Connect via M12 (order cable set separately). Confirm ICMTS size and the required communication interface before ordering.
