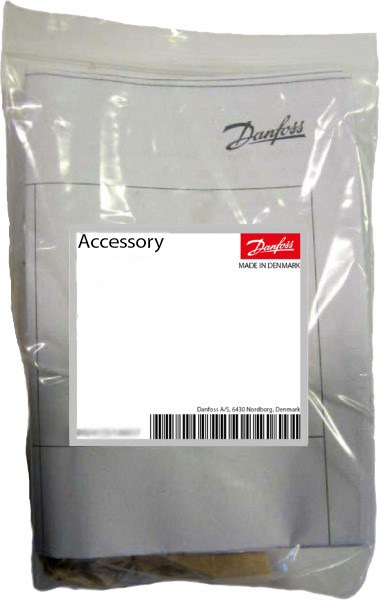

Danfoss ICAD 900 heat cartridge kit (spare part) for low-temperature ICM motor-operated valves

Danfoss heat cartridge kit (code number 027H1219) for the ICAD 900 electric actuator on ICM motor-operated valves. The kit warms the actuator so it operates reliably at low media or ambient temperature. Danfoss recommends fitting it when the media temperature through the ICM valve is below -30 °C, or when the valve is installed outdoors and the media is below -10 °C. The kit comprises a heat cartridge, a cartridge holder and heat-conduction compound; the holder is fitted to the ICAD 900 before the actuator is mounted on the valve. Supplied as a multi pack of 4.

Brand

Danfoss

Type

ICAD 900 heat cartridge kit (spare part)

Code number

027H1219

Used for

ICAD 900 electric actuator on ICM motor-operated valves

Kit contents

heat cartridge, cartridge holder, heat-conduction compound

Recommended fitting

media below -30 °C, or outdoor install with media below -10 °C

Packing format

multi pack, 4 pieces

EAN

5702428297820

Net weight

0.222 kg; gross weight: 0.314 kg

Volume

1.095 L

EU RoHS / China RoHS

compliant (no exemption)

REACH Candidate List substances

none

Product group

ICAD accessories

China RoHS compliance

Yes

EU RoHS compliance

Yes

Type designation

Heat Cartridge Kit

Used for product

ICAD 900

HS Code

9032.90
