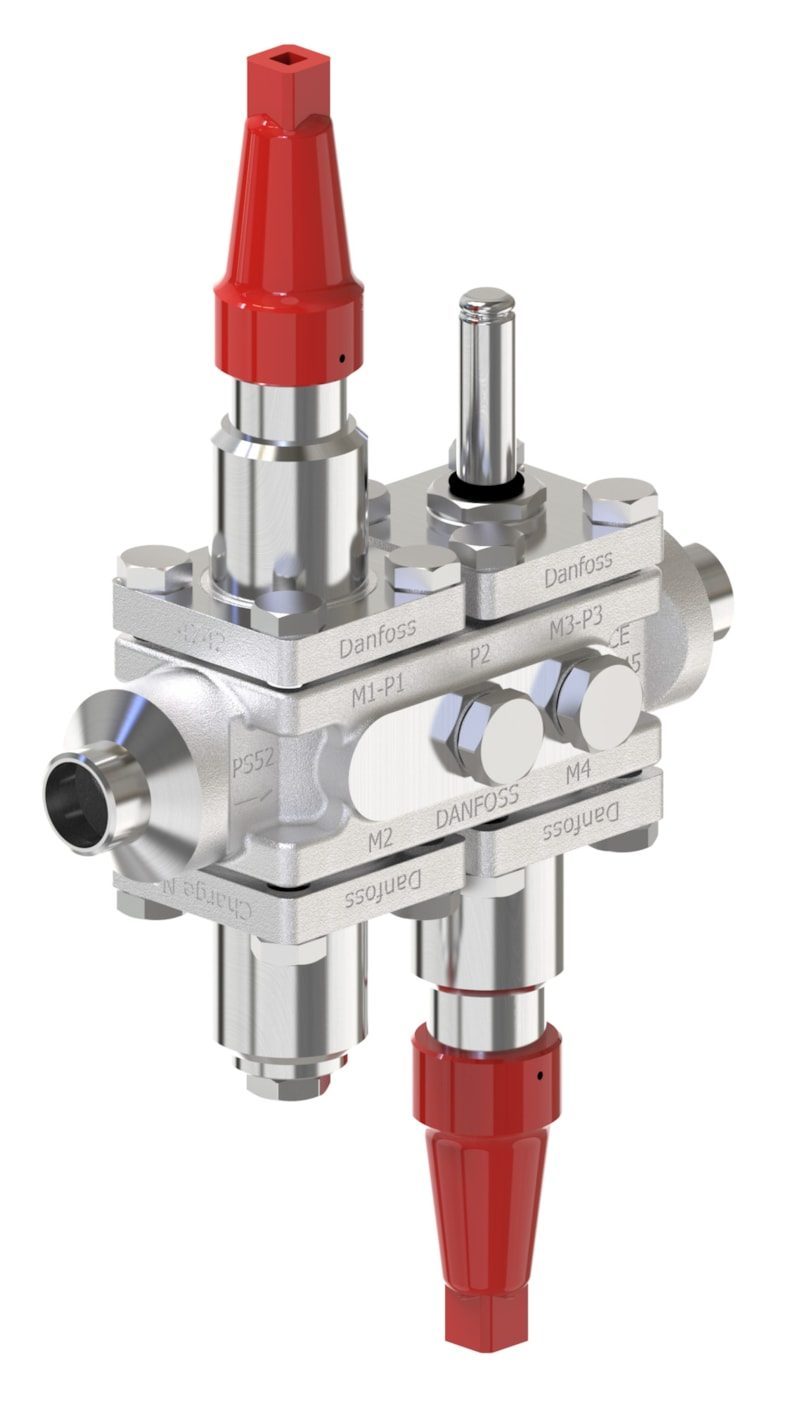

Danfoss ICF SS 20-4-9H Flexline valve station, 20 mm, EN 10220 (code 027L3455)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF SS 20-4-9H Flexline valve station (code 027L3455). The ICF valve station combines several refrigeration control functions in one stainless steel housing — for this configuration: Stop valve (ICFS SS 20), Filter (ICFF SS 20E), Solenoid valve (ICFE SS 20H), Stop valve (ICFS SS 20). Connection size 20 mm, connection standard EN 10220. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Specifications
- Part number
- 027L3455
- HS code
- 8481.80
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to +120 C
- Standard
- EN 10220
- Standard size
- 20 mm
Compatibility
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF SS 20-4-9H (Stop valve (ICFS SS 20), Filter (ICFF SS 20E), Solenoid valve (ICFE SS 20H), Stop valve (ICFS SS 20)). The station bolts into a 20 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Approvals
- UL
- CE
- PED 2014/68/EU Cat. II
