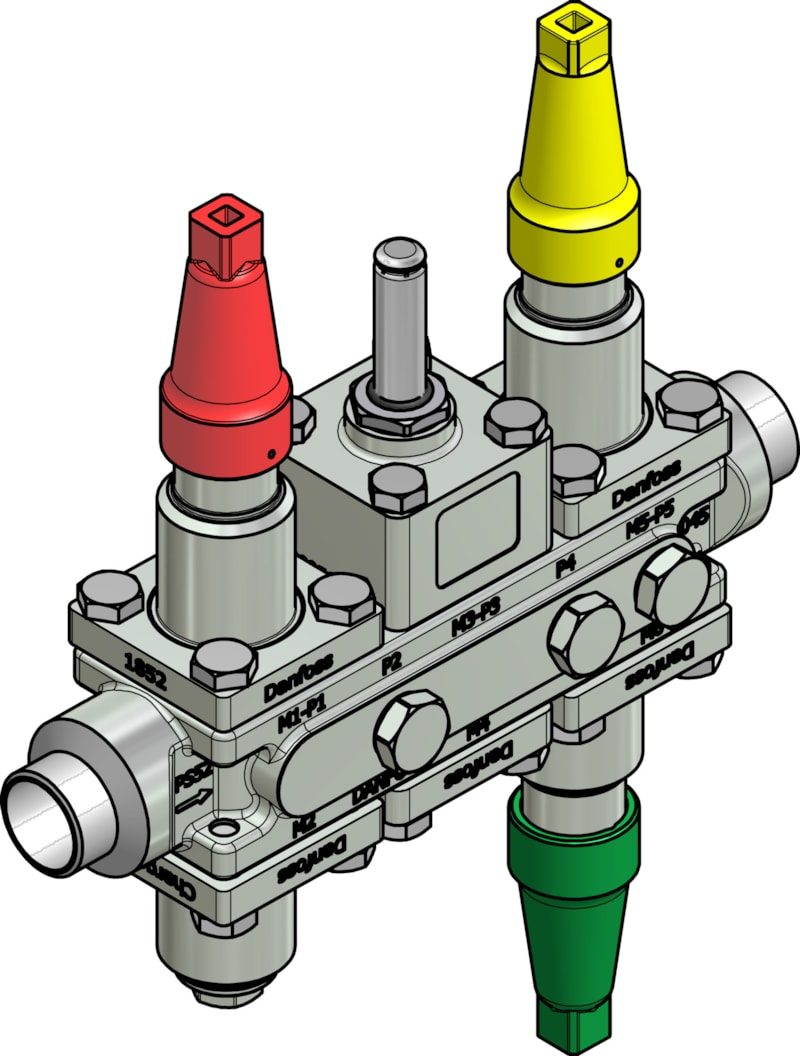

Danfoss ICF 20-6-2HRB Flexline valve station, 25 mm, EN 10220
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 20-6-2HRB Flexline valve station (code 027L3410). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 20), Filter (ICFF 20), Solenoid valve (ICFE 20H), Blank top cover (ICFB 20), Manual regulating valve (ICFR 20B), Stop/check valve (ICFN 20). Connection size 25 mm, connection standard EN 10220. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 20-6-2HRB Flexline valve station
- Code number
- 027L3410
- Connection size
- 25 mm
- Connection standard
- EN 10220
- Module configuration
- Stop valve (ICFS 20), Filter (ICFF 20), Solenoid valve (ICFE 20H), Blank top cover (ICFB 20), Manual regulating valve (ICFR 20B), Stop/check valve (ICFN 20)
- Body material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 9.885 kg, gross weight 10.801 kg
- Approvals
- CE, EAC, UL, TÜV
- EAN
- 5702428885591
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection material
- Steel
- Connection type
- Butt weld
- Max. working pressure
- 65.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- II
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Equipment
- Cap
- Flow direction indicator
- Embossed 1-way arrow
- Module 1
- Stop valve
- Module 1 type
- ICFS 20
- Module 2
- Filter
- Module 2 type
- ICFF 20
- Module 3
- Solenoid valve
- Module 3 type
- ICFE 20H
- Module 4
- Blank top cover
- Module 4 type
- ICFB 20
- Module 5
- Manual regulating valve
- Module 5 type
- ICFR 20B
- Module 6
- Stop/check valve
- Module 6 type
- ICFN 20
- Side port connection size
- 3/8 in
- Side port connection type
- G
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 25 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 20-6-2HRB (Stop valve (ICFS 20), Filter (ICFF 20), Solenoid valve (ICFE 20H), Blank top cover (ICFB 20), Manual regulating valve (ICFR 20B), Stop/check valve (ICFN 20)). The station bolts into a 25 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 20-6-3HRB Flexline valve station, 20 mm, EN 10220
027L3166
Danfoss

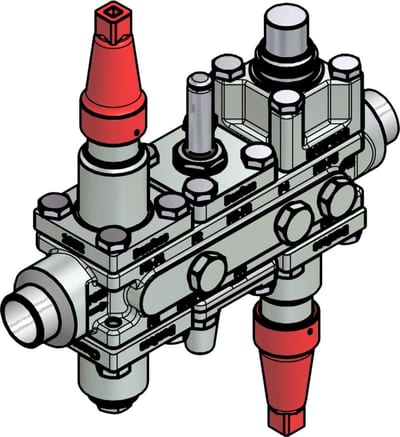

Danfoss ICF 20-6-5MA Flexline valve station, 25 mm, EN 10220 (code 027L3148)
Danfoss

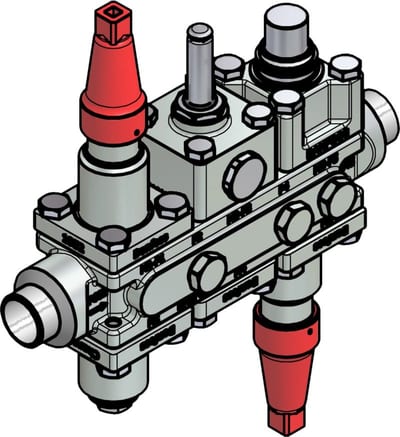

Danfoss ICF 20-6-5HMB Flexline valve station, 25 mm, EN 10220
027L3325
Danfoss

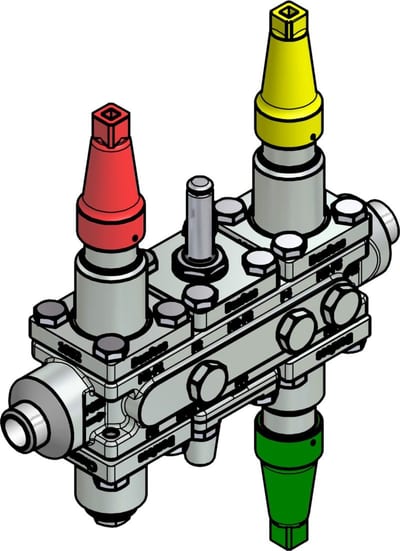

Danfoss ICF 20-6-2RA Flexline valve station, 20 mm, ASME B 36.10M SCHEDULE 80
027L3013
Danfoss

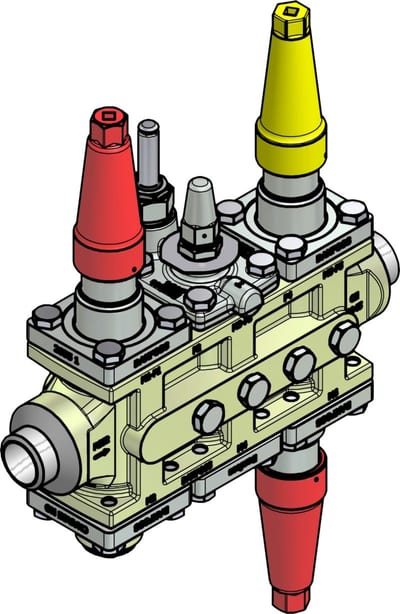

Danfoss ICF 25-6-1RB Flexline valve station, 32 mm, ASME B 36.10M SCHEDULE 80
027L4012
Danfoss

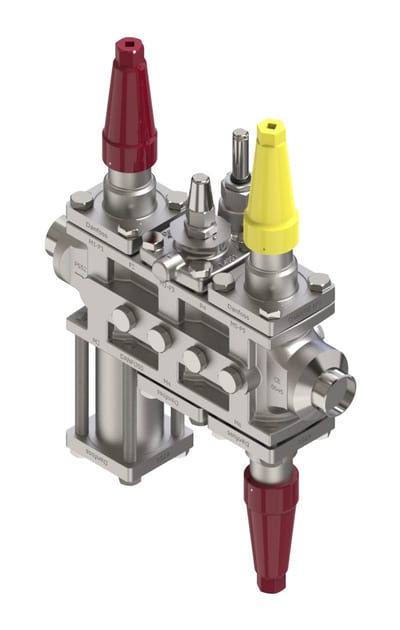

Danfoss ICF SS 25-6-1RA Flexline valve station, 25 mm, EN 10220
027L4198
Danfoss

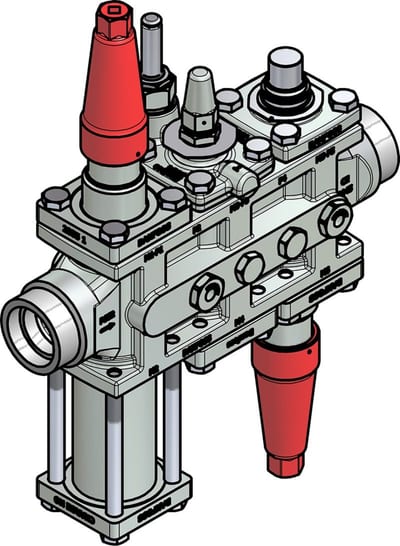

Danfoss ICF 25-6-5MB Flexline valve station, 40 mm, ASME B 16.11
027L4053
Danfoss

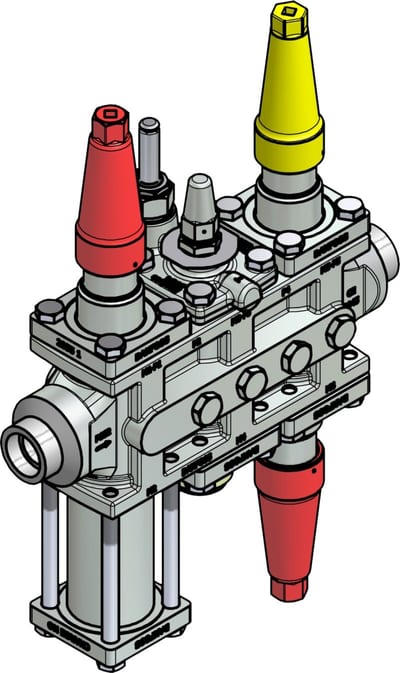

Danfoss ICF 25-6-3RA Flexline valve station, 25 mm, ASME B 16.11
