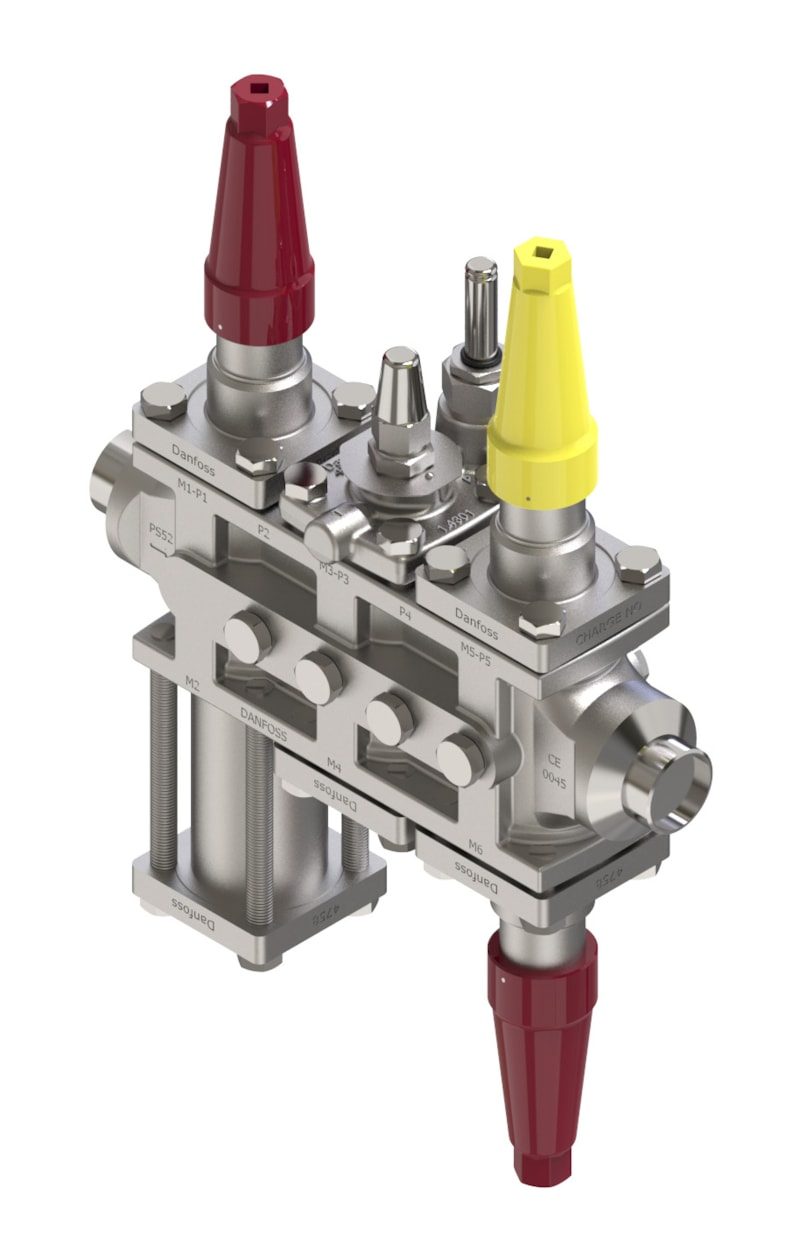

Danfoss ICF SS 25-6-1RA Flexline valve station, 25 mm, EN 10220
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF SS 25-6-1RA Flexline valve station (code 027L4198). The ICF valve station combines several refrigeration control functions in one stainless steel housing — for this configuration: Stop valve (ICFS SS 25), Filter (ICFF SS 25E), Solenoid valve (ICFE SS 25), Blank top cover (ICFB SS 25), Manual regulating valve (ICFR SS 25A), Stop valve (ICFS SS 25). Connection size 25 mm, connection standard EN 10220. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF SS 25-6-1RA Flexline valve station
- Code number
- 027L4198
- Connection size
- 25 mm
- Connection standard
- EN 10220
- Module configuration
- Stop valve (ICFS SS 25), Filter (ICFF SS 25E), Solenoid valve (ICFE SS 25), Blank top cover (ICFB SS 25), Manual regulating valve (ICFR SS 25A), Stop valve (ICFS SS 25)
- Body material
- Stainless steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- gross weight 25.018 kg
- Approvals
- CE, EAC, UL
- EAN
- 5702428994989
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection material
- Stainless steel
- Connection type
- Butt weld
- Max. working pressure
- 52.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- II
- UL approval file name
- REFRIGERANT VALVE 53R0
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Equipment
- Cap
- Flow direction indicator
- Embossed 1-way arrow
- Module 1
- Stop valve
- Module 1 type
- ICFS SS 25
- Module 2
- Filter
- Module 2 type
- ICFF SS 25E
- Module 3
- Solenoid valve
- Module 3 type
- ICFE SS 25
- Module 4
- Blank top cover
- Module 4 type
- ICFB SS 25
- Module 5
- Manual regulating valve
- Module 5 type
- ICFR SS 25A
- Module 6
- Stop valve
- Module 6 type
- ICFS SS 25
- Side port connection size
- 3/8 in
- Side port connection type
- G
- Side port placement
- P2-P4-P5-P7-P9-P10
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 25 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF SS 25-6-1RA (Stop valve (ICFS SS 25), Filter (ICFF SS 25E), Solenoid valve (ICFE SS 25), Blank top cover (ICFB SS 25), Manual regulating valve (ICFR SS 25A), Stop valve (ICFS SS 25)). The station bolts into a 25 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 25-6-5MB Flexline valve station, 40 mm, ASME B 16.11
027L4053
Danfoss
Danfoss ICF 25-6-3RA Flexline valve station, 25 mm, ASME B 16.11
027L4021
Danfoss
Danfoss ICF 25-6-5MA Flexline valve station, 40 mm, ASME B 16.11
027L4132
Danfoss
Danfoss ICF 25-6-90 Flexline valve station, 25 mm, ASME B 16.11 (code 027L4156)
Danfoss
Danfoss ICF 50-4-43MB Flexline valve station, 50 mm, EN 10220
027L5019
Danfoss

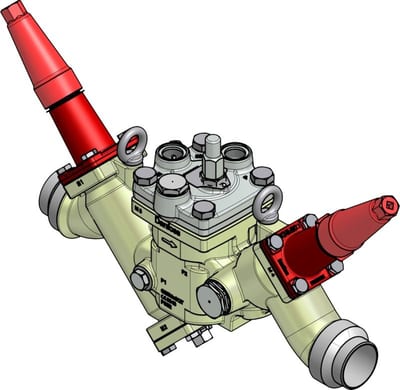

Danfoss ICF 50-4-42S32 Flexline valve station, 50 mm, EN 10220
027L5007
Danfoss
Danfoss ICF 50-4-42S50 Flexline valve station, 50 mm, EN 10220
027L5003
Danfoss

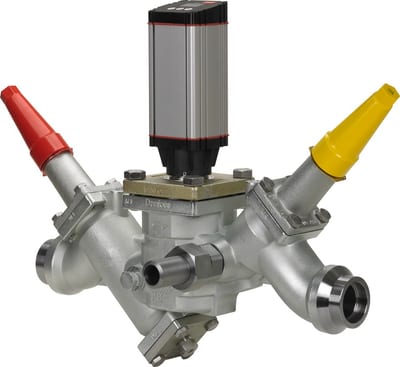

Danfoss ICF 50-4-46MA Flexline valve station, 50 mm, EN 10220
