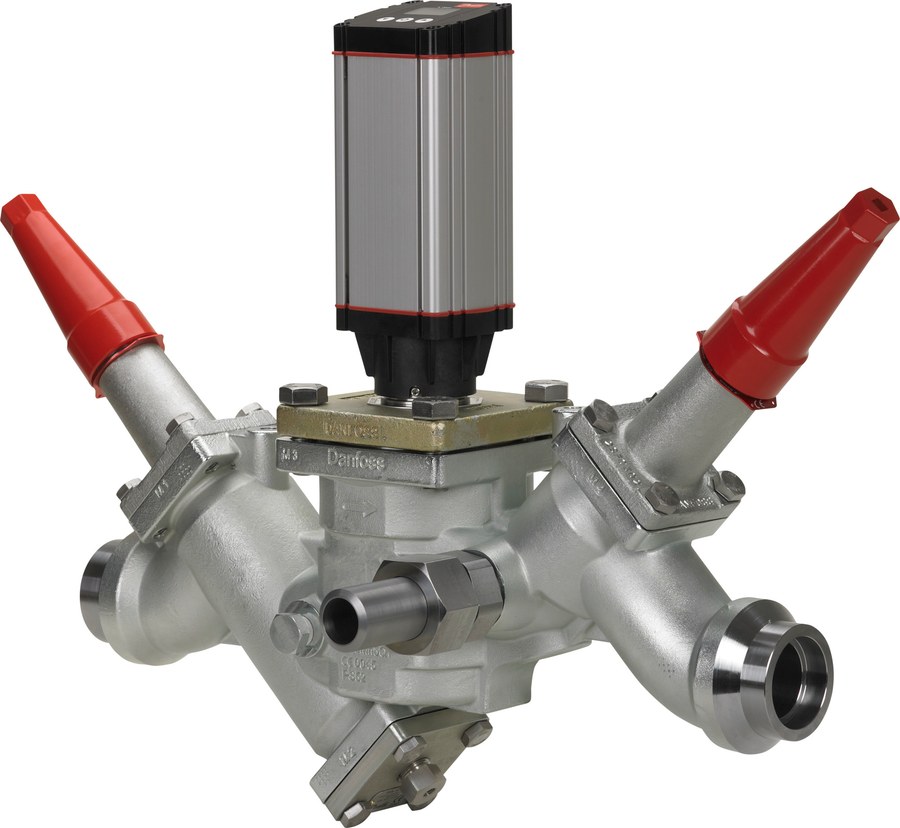

Danfoss ICF 50-4-43MB Flexline valve station, 50 mm, EN 10220 (code 027L5019)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF 50-4-43MB Flexline valve station (code 027L5019). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (SVA-S 50), Filter cover without FIA filter (ICFB 50), Control valve (ICM 50-B), Stop valve (SVA-S 50). Connection size 50 mm, connection standard EN 10220. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Specifications
- Part number
- 027L5019
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to +120 C
- Standard
- EN 10220
- Standard size
- 50 mm
Compatibility
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 50-4-43MB (Stop valve (SVA-S 50), Filter cover without FIA filter (ICFB 50), Control valve (ICM 50-B), Stop valve (SVA-S 50)). The station bolts into a 50 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Approvals
