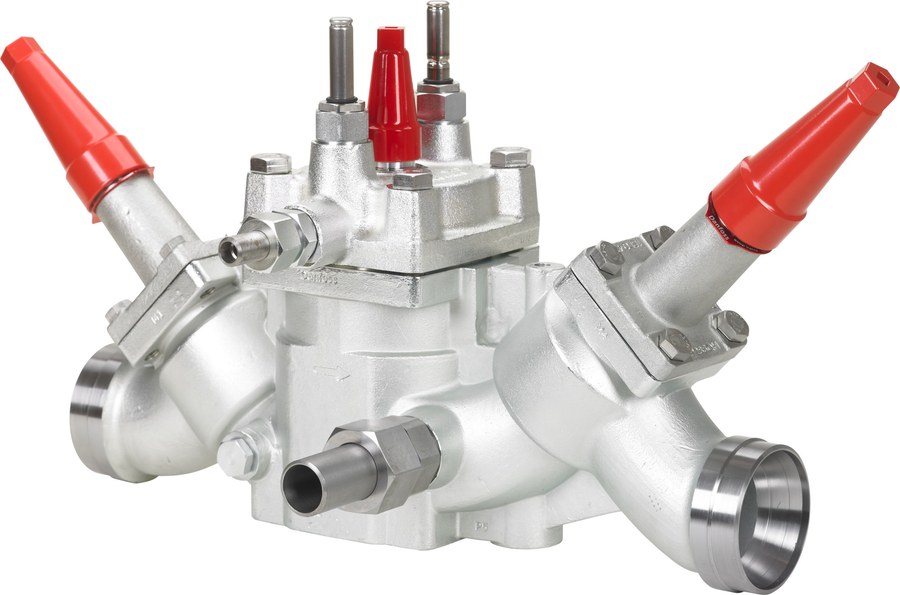

Danfoss ICF 65-3-41 Flexline valve station, 65 mm, EN 10220 (code 027L6521)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF 65-3-41 Flexline valve station (code 027L6521). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: SVA-S 65 stop valve, ICLX 65 control valve, SVA-S 65 stop valve. Connection size 65 mm, connection standard EN 10220. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Specifications
- Part number
- 027L6521
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to +120 C
- Standard
- EN 10220
- Standard size
- 65 mm
Compatibility
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 65-3-41 (SVA-S 65 stop valve, ICLX 65 control valve, SVA-S 65 stop valve). The station bolts into a 65 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Approvals
- C-UL-US Listed
- CE
- EAC
- TUV
- PED 2014/68/EU Cat. II
