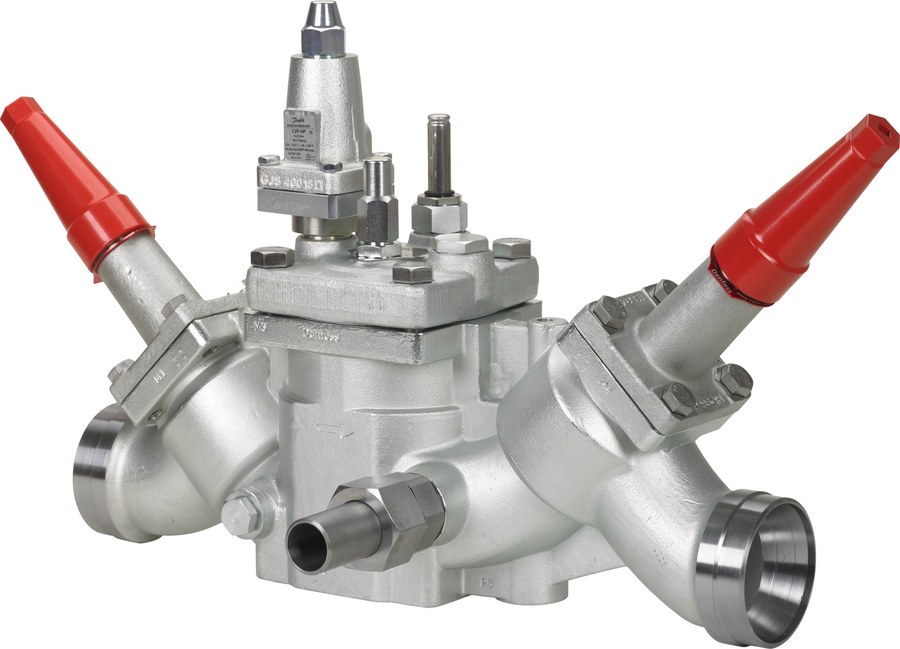

Danfoss ICF 65-3-42S65 Flexline valve station, 65 mm, ASME B 36.10M Schedule 80
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 65-3-42S65 Flexline valve station (code 027L6502). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: SVA-S 65 stop valve, ICS 65 control valve, SVA-S 65 stop valve. Connection size 65 mm, connection standard ASME B 36.10M Schedule 80. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 65-3-42S65 Flexline valve station
- Code number
- 027L6502
- Connection size
- 65 mm
- Connection standard
- ASME B 36.10M Schedule 80
- Module configuration
- SVA-S 65 stop valve, ICS 65 control valve, SVA-S 65 stop valve
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 33.24 kg, gross weight 46.25 kg
- Approvals
- C-UL-US Listed, CE, EAC, TUV, PED 2014/68/EU Cat. II
- EAN
- 5702428917483
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection type
- Butt weld
- Max. working pressure
- 52.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- II
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Defrost port placement
- P2-P4
- Defrost port quantity
- 2 pc
- Equipment
- Cap
- Module 1
- Stop valve
- Module 1 type
- SVA-S 65
- Module 3
- Control valve
- Module 3 type
- ICS 65
- Module 4
- Stop valve
- Module 4 type
- SVA-S 65
- Side port placement
- P1-P3
- Side port quantity
- 2 pc
- Surface coating
- ZnCr04
- Type code ICF
- ICF-65-3-65ASXXBG1SXXXXX2KXX
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Standard
- ASME B 36.10M Schedule 80
- Size / Series
- 65 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 65-3-42S65 (SVA-S 65 stop valve, ICS 65 control valve, SVA-S 65 stop valve). The station bolts into a 65 mm line to ASME B 36.10M Schedule 80; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
