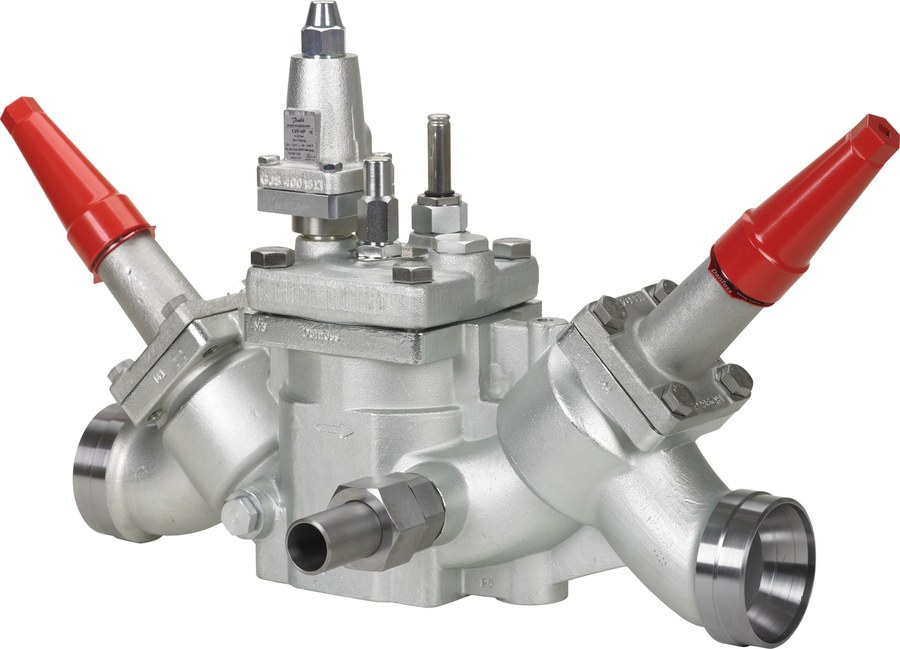

Danfoss ICF 65-3-42S65 Flexline valve station, 80 mm, ASME B 36.10M Schedule 80 (code 027L6504)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF 65-3-42S65 Flexline valve station (code 027L6504). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: SVA-S 65 stop valve, ICS 65 control valve, SVA-S 65 stop valve. Connection size 80 mm, connection type Butt weld, connection standard ASME B 36.10M Schedule 80. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Specifications
- Part number
- 027L6504
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to +120 C
Compatibility
ICF 65-3 Flexline valve station with 80 mm butt weld connections to ASME B 36.10M Schedule 80. Confirm the module string (SVA-S 65 stop valve, ICS 65 control valve, SVA-S 65 stop valve) and the connection standard before ordering; the 65 mm-connection variant is a separate code.
Approvals
- C-UL-US Listed
- CE
- EAC
- TUV
- PED 2014/68/EU Cat. II
