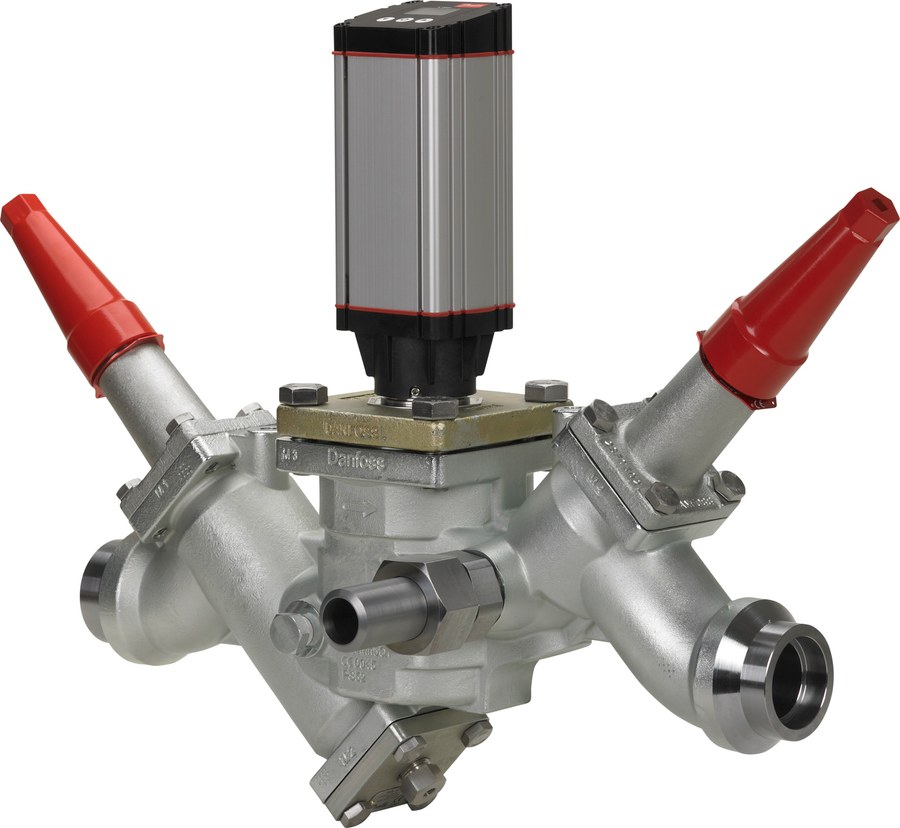

Danfoss ICF 50-4-43MB Flexline valve station, 50 mm, ASME B 16.11 (code 027L5020)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF 50-4-43MB Flexline valve station (code 027L5020). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: SVA-S 50 stop valve, ICFB 50 filter cover (no FIA filter), ICM 50-B control valve, SVA-S 50 stop valve. Connection size 50 mm, connection type Socket weld, connection standard ASME B 16.11. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Specifications
- Part number
- 027L5020
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to +120 C
Compatibility
ICF 50-4 Flexline valve station with 50 mm socket weld connections to ASME B 16.11. Confirm the module string (SVA-S 50 stop valve, ICFB 50 filter cover (no FIA filter), ICM 50-B control valve, SVA-S 50 stop valve) and the connection standard before ordering; the EN 10220 butt-weld variant is a separate code.
Approvals
