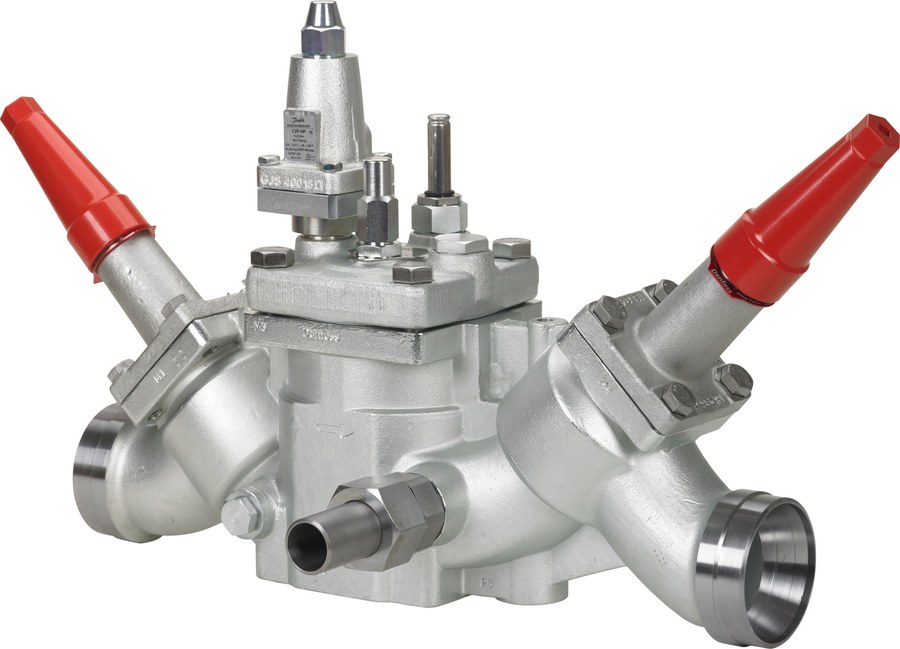

Danfoss ICF 65-3-42S65 Flexline valve station, 80 mm, EN 10220
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 65-3-42S65 Flexline valve station (code 027L6503). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: SVA-S 65 stop valve, ICS 65 control valve, SVA-S 65 stop valve. Connection size 80 mm, connection type Butt weld, connection standard EN 10220. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 65-3-42S65 Flexline valve station
- Code number
- 027L6503
- Connection size
- 80 mm
- Connection type
- Butt weld
- Connection standard
- EN 10220
- Module configuration
- SVA-S 65 stop valve, ICS 65 control valve, SVA-S 65 stop valve
- Body material
- Steel
- Surface coating
- Zn (TLP)
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 33.44 kg (store does not print a consistent gross weight for this code)
- Approvals
- C-UL-US Listed, CE, EAC, TUV, PED 2014/68/EU Cat. II
- EAN
- 5702428917476
- Net weight
- 33.44 Kilogram
- Product group
- Multifunction valves
- Approval
- C UL US LISTED
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection material
- Steel
- Connection size [in]
- 3 in
- Connection size [mm]
- 80 mm
- Defrost port connection size
- 33 X 1.5
- Defrost port connection type
- M
- Defrost port placement
- P2-P4
- Defrost port quantity [pc]
- 2 pc
- Direction
- Straightway
- Equipment
- Cap/2 x Lifting hooks
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Module 1
- Stop valve
- Module 1 type
- SVA-S 65
- Module 3
- Control valve
- Module 3 type
- ICS 65
- Module 4
- Stop valve
- Module 4 type
- SVA-S 65
- PED category
- II
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Side port connection size [in]
- 3/8 in
- Side port connection type
- G
- Side port placement
- P1-P3
- Side port quantity [pc]
- 2 pc
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Type code ICF
- ICF-65-3-80DSXXBG1SXXXXX2KXX
- UL mark
- Yes
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF 65-3 Flexline valve station with 80 mm butt weld connections to EN 10220. Confirm the module string (SVA-S 65 stop valve, ICS 65 control valve, SVA-S 65 stop valve) and the connection standard before ordering; the 65 mm-connection variant is a separate code.
