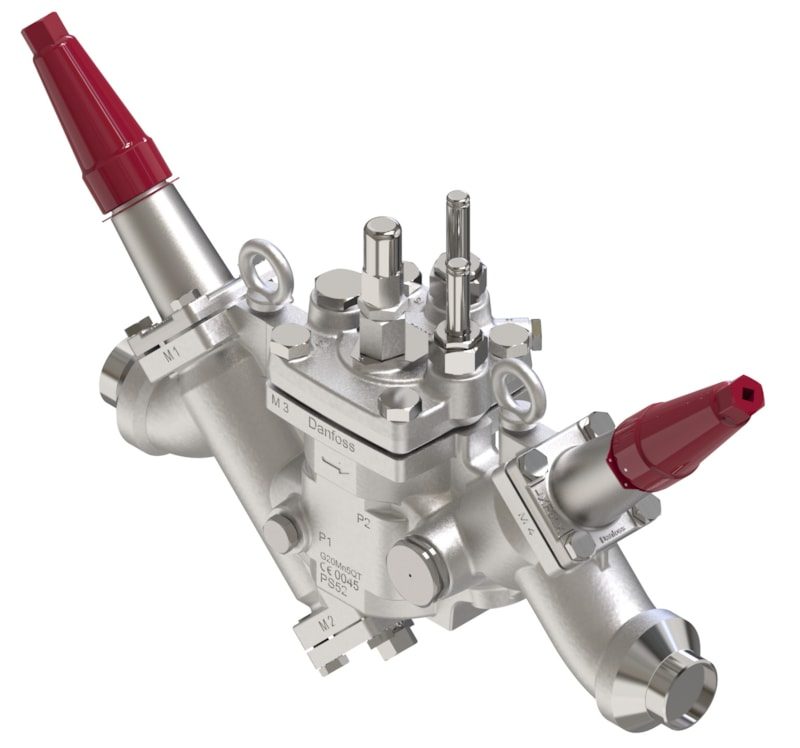

Danfoss ICF 50-4-47H50 Flexline valve station, 50 mm, EN 10220 (code 027L5086)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 50-4-47H50 Flexline valve station (code 027L5086). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (SVA-S 50), FIA 50 filter (FIA 50-150P), Servo valve (ICSH 50), Stop valve (SVA-S 50). Connection size 50 mm, connection standard EN 10220. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 50-4-47H50 Flexline valve station
- Code number
- 027L5086
- Connection size
- 50 mm
- Connection standard
- EN 10220
- Module configuration
- Stop valve (SVA-S 50), FIA 50 filter (FIA 50-150P), Servo valve (ICSH 50), Stop valve (SVA-S 50)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 29 kg, gross weight 38.5 kg
- Approvals
- C-UL-US Listed, CE, EAC, TÜV
- EAN
- 5715162144565
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection material
- Steel
- Connection type
- Butt weld
- Max. working pressure
- 52.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- II
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Defrost port connection size
- 33 X 1.5
- Defrost port connection type
- M
- Defrost port placement
- P2-P4
- Defrost port quantity
- 2 pc
- Equipment
- Cap/2 x Lifting hooks
- Flow direction indicator
- Embossed 1-way arrow
- Module 1
- Stop valve
- Module 1 type
- SVA-S 50
- Module 2
- FIA 50 filter
- Module 2 type
- FIA 50-150P
- Module 3
- Servo valve
- Module 3 type
- ICSH 50
- Module 4
- Stop valve
- Module 4 type
- SVA-S 50
- Side port connection size
- 3/8 in
- Side port connection type
- G
- Side port placement
- P1-P3
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 50 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 50-4-47H50 (Stop valve (SVA-S 50), FIA 50 filter (FIA 50-150P), Servo valve (ICSH 50), Stop valve (SVA-S 50)). The station bolts into a 50 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 25-4-14MA Flexline valve station, 40 mm, EN 10220
027L4182
Danfoss
Danfoss ICF 65-3-41 Flexline valve station, 65 mm, EN 10220
027L6521
Danfoss
Danfoss ICF 65-3-41 Flexline valve station, 65 mm, ASME B 36.10M Schedule 80
027L6522
Danfoss
Danfoss ICF 65-3-42S65 Flexline valve station, 65 mm, EN 10220
027L6501
Danfoss
Danfoss ICF 65-3-42S65 Flexline valve station, 65 mm, ASME B 36.10M Schedule 80
027L6502
Danfoss
Danfoss ICF SS 25-4-14MB Flexline valve station, 32 mm, EN 10220
027L4764
Danfoss
Danfoss ICF SS 20-4-12 Flexline valve station, 20 mm, EN 10220
027L3459
Danfoss

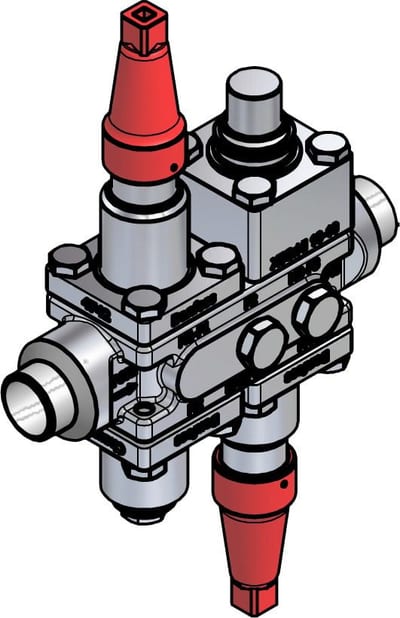

Danfoss ICF SS 20-4-14MB Flexline valve station, 25 mm, EN 10220
