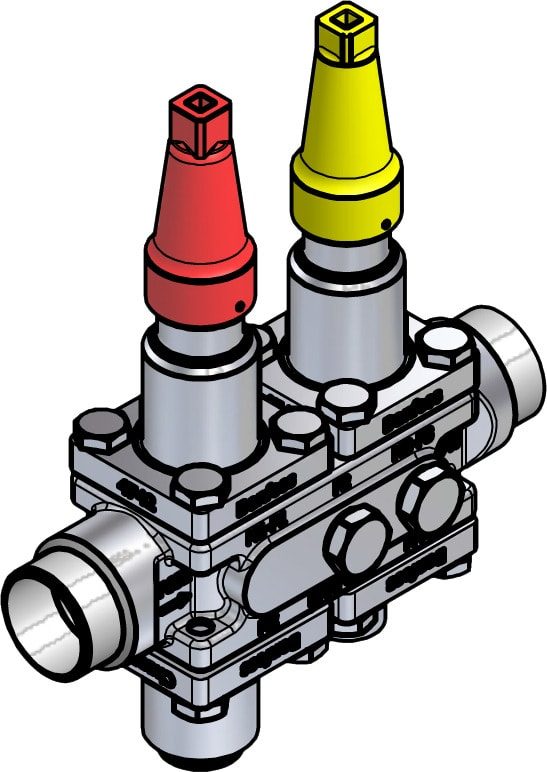

Danfoss ICF SS 20-4-90 Flexline valve station, 32 mm, EN 10220
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF SS 20-4-90 Flexline valve station (code 027L4744). The ICF valve station combines several refrigeration control functions in one stainless steel housing — for this configuration: Stop valve (ICFS SS 20), Check valve (ICFC SS 20), Manual regulating valve (ICFR SS 20-A), Welding module (ICFW SS 20-D). Connection size 32 mm, connection standard EN 10220. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF SS 20-4-90 Flexline valve station
- Code number
- 027L4744
- Connection size
- 32 mm
- Connection standard
- EN 10220
- Module configuration
- Stop valve (ICFS SS 20), Check valve (ICFC SS 20), Manual regulating valve (ICFR SS 20-A), Welding module (ICFW SS 20-D)
- Body material
- Stainless steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 7.618 kg, gross weight 8.778 kg
- Approvals
- UL, CE, EAC, PED 2014/68/EU Cat. II
- EAN
- 5702428931519
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection material
- Stainless steel
- Connection type
- Butt weld
- Max. working pressure
- 52.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R134a; R22; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R409A; R410A; R421A; R502; R507A; R717; R744
- Fluid Group
- 1
- PED category
- II
- UL approval file name
- REFRIGERANT VALVE 53R0
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Equipment
- Cap
- Flow direction indicator
- Embossed 1-way arrow
- Module 1
- Stop valve
- Module 1 type
- ICFS SS 20
- Module 2
- Check valve
- Module 2 type
- ICFC SS 20
- Module 3
- Manual regulating valve
- Module 3 type
- ICFR SS 20-A
- Module 4
- Welding module
- Module 4 type
- ICFW SS 20-D
- Side port connection size
- 3/8 in
- Side port connection type
- G
- Side port placement
- P2-P3-P5-P6
- Side port quantity
- 4 pc
- Surface coating
- uncoated
- Type code ICF
- ICF-20-4-32KSXCXRAW1XXXX4YXX
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 32 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF SS 20-4-90 (Stop valve (ICFS SS 20), Check valve (ICFC SS 20), Manual regulating valve (ICFR SS 20-A), Welding module (ICFW SS 20-D)). The station bolts into a 32 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
