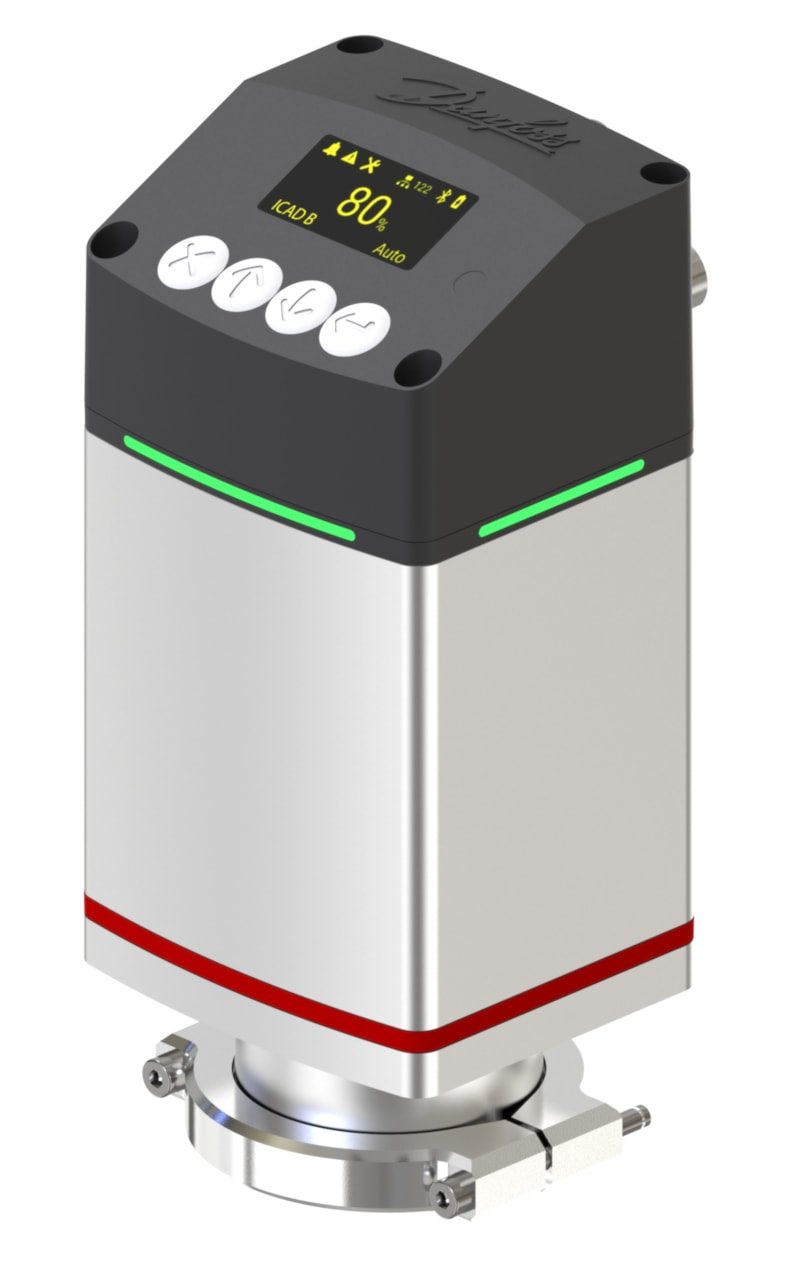

Danfoss ICAD 600BTS electric actuator (display, RS485) for ICMTS motor-operated valves
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICAD 600BTS electric actuator (code number 027H0497) for ICMTS transcritical motor-operated valves, with an onboard OLED display and RS485 communication, without Bluetooth. 24 V DC, IP67. Drives the ICMTS function module via a magnet coupling with continuous position feedback for pressure and temperature regulation in transcritical CO2 refrigeration. Supplied without cables.
Technical Specifications
- Brand
- Danfoss
- Type
- ICAD 600BTS electric actuator (ICAD), without cables
- Code number
- 027H0497
- Supply voltage
- 24 V DC
- Communication interface
- onboard display (OLED); RS485
- Enclosure rating
- IP67 (~NEMA 6)
- Electrical connection
- M12 connectors
- Used for
- ICMTS 20A, ICMTS 20A33, ICMTS 20B, ICMTS 20B66, ICMTS 20C, ICMTS 50A, ICMTS 80A, ICMTS 80B
- Ambient temperature range
- -30 to 50 °C (-22 to 122 °F)
- Housing material
- aluminium; top part PBT thermoplastic
- EAN
- 5715162513781
- Net weight
- 1.73 kg; gross weight: 2.11 kg
- EU RoHS / China RoHS
- compliant (with exemptions)
- Approvals
- CE, UL, RED (EU Radio Equipment Directive)
- Product group
- Press. and temp. regul. valves
- Ambient temperature range [°C] [max]
- 50 °C
- Ambient temperature range [°C] [min]
- -30 °C
- Ambient temperature range [°F] [max]
- 122 °F
- Ambient temperature range [°F] [min]
- -22 °F
- Analog input current opt. [mA] [max]
- 20 mA
- Analog input current opt. [mA] [min]
- 4 mA
- Analog input Volt opt. [V] d.c [max]
- 10 V
- Analog input Volt opt. [V] d.c [min]
- 2 V
- Analog output options [mA] [max]
- 20 mA
- Analog output options [mA] [min]
- 4 mA
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Comments
- NON-BLUETOOTH VERSION
- Communication type
- Display
- Dig. Output-Ext supply [V] d.c [max]
- 24 V
- Dig. Output-Ext supply [V] d.c [min]
- 5 V
- Digital Output-Load [Ohm]
- 60 Ohm
- Digital Output-Max Load [mA]
- 50 mA
- Digital outputs (DO) [pc]
- 3 pc
- Display type
- OLED
- Electrical connector
- M12
- Enclosure rating IP
- IP67
- Enclosure rating Nema (~)
- 6
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Function
- Digital output
- Load Analog input Current[Ohm]
- 250 Ohm
- Load Analog input Voltage[Ohm]
- 10000 Ohm
- Load Analog output max [Ohm]
- 500 Ohm
- Output configuration
- Open drain
- Power supply
- Class 2
- Product version
- 01
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Supply voltage [V] DC
- 24 V
- Supply voltage load [A]
- 1.2 A
- Supply voltage tolerance [%] [max]
- 10 %
- Supply voltage tolerance [%] [min]
- -15 %
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- UL mark
- Yes
- Used for product
- ICMTS20A
Standards & Compliance
- Temperature Range
- -30 to 50 °C
- IP Rating
- IP67
- Classification / Approval
- CE, UL, RED
- HS Code
- 9032.89
Compatibility & Fitment
Fits ICMTS 20A, ICMTS 20A33, ICMTS 20B, ICMTS 20B66, ICMTS 20C, ICMTS 50A, ICMTS 80A and ICMTS 80B. RS485 communication variant with an onboard display and without Bluetooth (the 027H0495 is the Bluetooth variant, the 027H0496 the Ethernet variant). Connect via M12 (order cable set separately). Confirm ICMTS size and the required communication interface before ordering.
