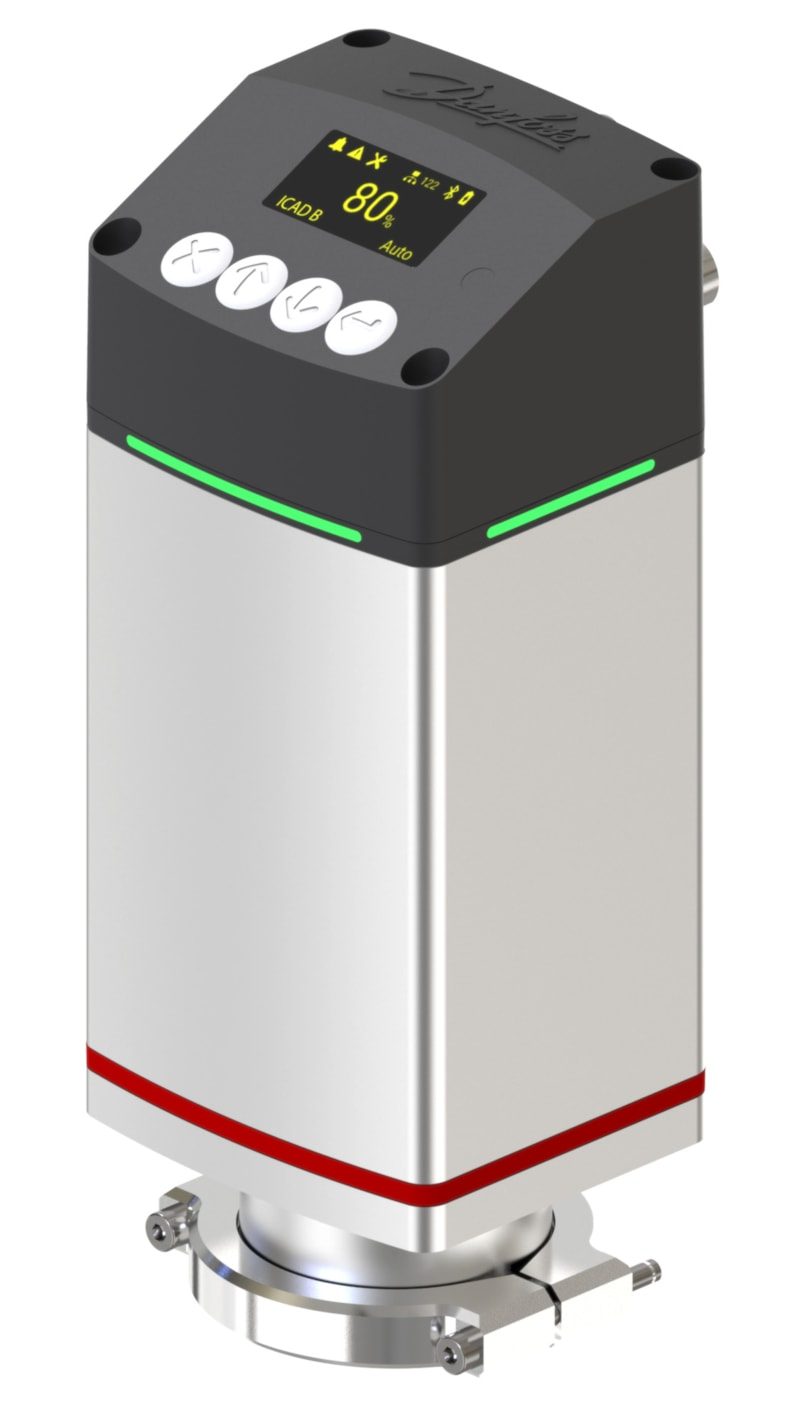

Danfoss 027H0491 ICAD 1200B electric actuator (Bluetooth, display, Ethernet) for ICM motor-operated valves
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICAD 1200B electric actuator (code number 027H0491) for the larger ICM motor-operated valves (ICM 40 to ICM 150), with Bluetooth, onboard OLED display and Ethernet (Modbus TCP/IP) communication. 24 V DC, IP67. Drives the ICM function module via a magnet coupling with continuous position feedback for pressure and temperature regulation in industrial refrigeration. Supplied without cables.
Specifications
- Part number
- 027H0491
- HS code
- 9032.89
- Temperature range
- -30 to 50 °C
- IP rating
- IP67
Compatibility
Fits ICM 40, ICM 50, ICM 65, ICM 100, ICM 125, ICM 150 and CVE. Ethernet communication variant with Bluetooth and onboard display. Connect via M12 (order cable set separately). Confirm ICM size and the required communication interface before ordering.
Approvals
