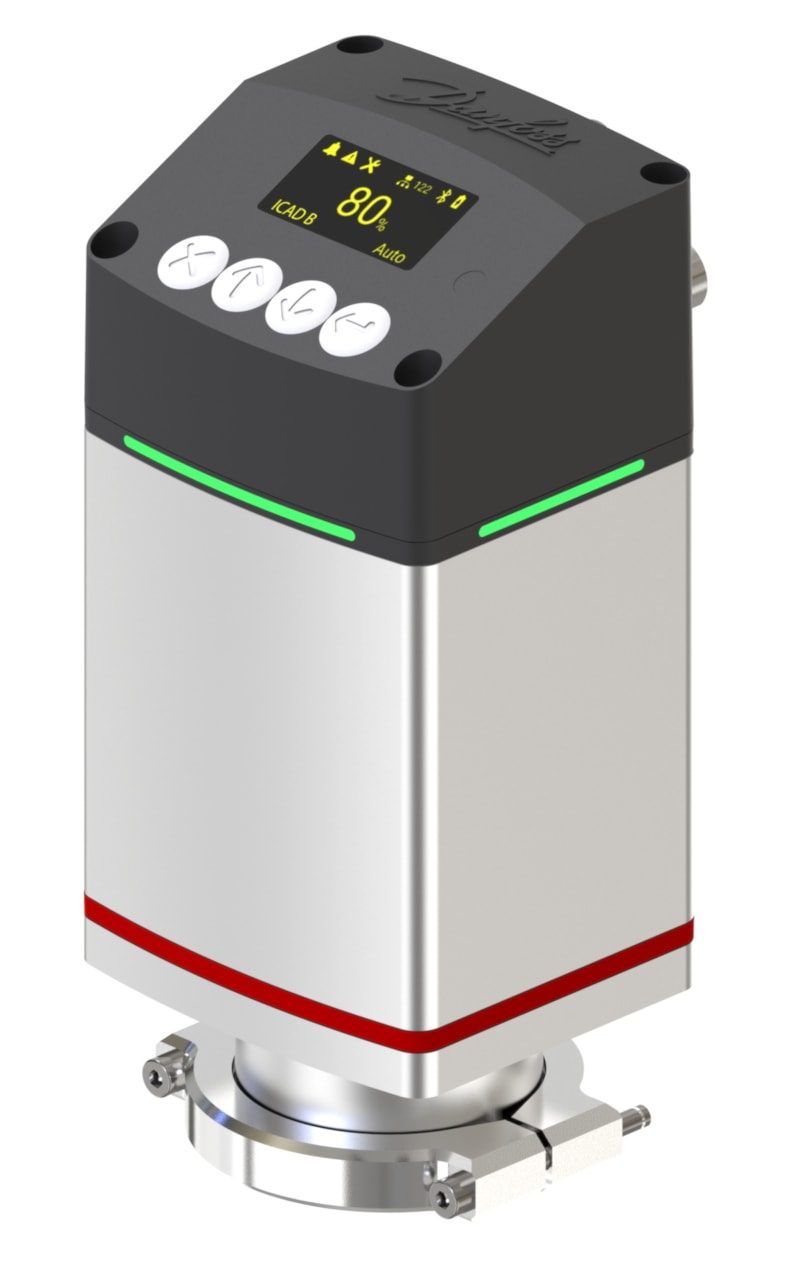

Danfoss ICAD 600B electric actuator (Bluetooth, display, RS485) for ICM motor-operated valves

Danfoss ICAD 600B electric actuator (code number 027H0485) for ICM motor-operated valves, with Bluetooth, onboard display and RS485 communication. 24 V DC, IP67. Drives the ICM function module via a magnet coupling with continuous position feedback for pressure and temperature regulation in industrial refrigeration. Supplied without cables.

Brand

Danfoss

Type

ICAD 600B electric actuator (ICAD), without cables

Code number

027H0485

Supply voltage

24 V DC

Communication interface

Bluetooth; onboard display; RS485

Enclosure rating

IP67 (~NEMA 6)

Electrical connection

M12 connectors

Used for

ICM 20, ICM 25, ICM 32

Ambient temperature range

-30 to 50 °C (-22 to 122 °F)

Housing material

aluminium; top part PBT thermoplastic

EAN

5715162687208

Net weight

1.65 kg; gross weight: 2.03 kg

EU RoHS / China RoHS

compliant (with exemptions)

Approvals

CE, UL, RED (EU Radio Equipment Directive)

Product group

Press. and temp. regul. valves

Ambient temperature range [°C] [max]

50 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

122 °F

Ambient temperature range [°F] [min]

-22 °F

Analog input current opt. [mA] [max]

20 mA

Analog input current opt. [mA] [min]

4 mA

Analog input Volt opt. [V] d.c [max]

10 V

Analog input Volt opt. [V] d.c [min]

2 V

Analog output options [mA] [max]

20 mA

Analog output options [mA] [min]

4 mA

Approval

CE

Approval document

FCC ID: Y82-DA14531MOD

CE mark

Yes

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.1

Communication type

Bluetooth

Dig. Output-Ext supply [V] d.c [max]

24 V

Dig. Output-Ext supply [V] d.c [min]

5 V

Digital Output-Load [Ohm]

60 Ohm

Digital Output-Max Load [mA]

50 mA

Digital outputs (DO) [pc]

3 pc

Display type

OLED

Electrical connector

M12

Enclosure rating IP

IP67

Enclosure rating Nema (~)

6

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a)

Function

Digital output

Load Analog input Current[Ohm]

250 Ohm

Load Analog input Voltage[Ohm]

10000 Ohm

Load Analog output max [Ohm]

500 Ohm

Output configuration

Open drain

Power supply

Class 2

Product version

01

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Supply voltage [V] DC

24 V

Supply voltage load [A]

1.2 A

Supply voltage tolerance [%] [max]

10 %

Supply voltage tolerance [%] [min]

-15 %

Temperature range [°C] [max]

120 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

248 °F

Temperature range [°F] [min]

-76 °F

UL mark

Yes

Used for product

ICM 20

Temperature Range

-30 to 50 °C

IP Rating

IP67

Classification / Approval

CE, UL, RED

HS Code

9032.89
