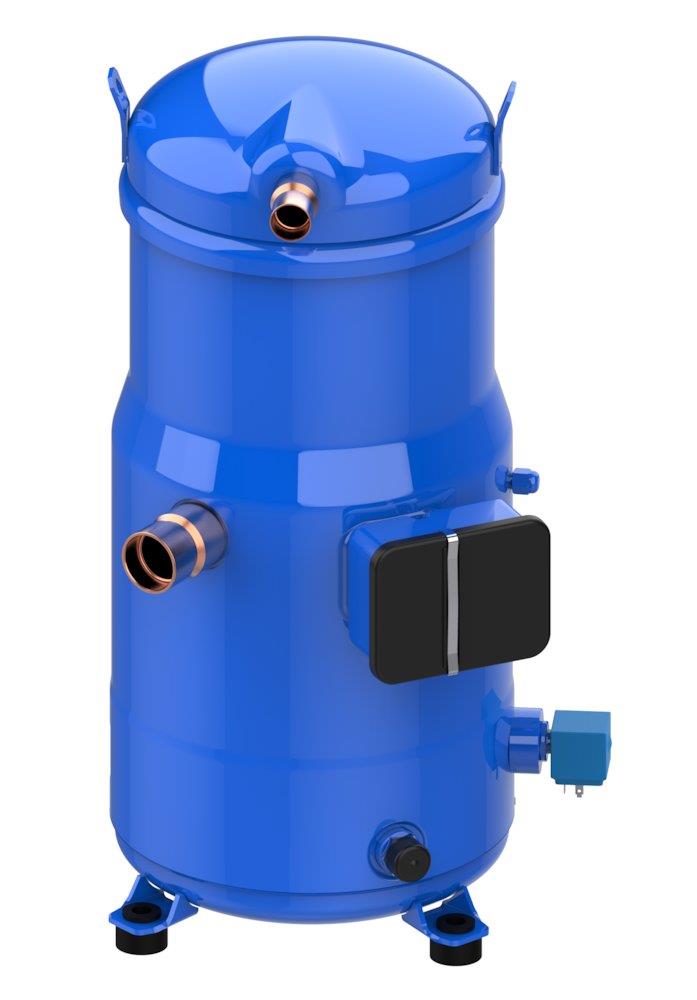

Danfoss VZH117 Cooling Compressor - 116.9M³/h, R410A, VZH 117 CGDNA

Danfoss VZH117 Cooling Compressor. Scroll chillers (Refrigeration technology / Refrigeration compressors). Principal data: stroke capacity 116.9 m³/h, coolant R410A, type designation VZH 117 CGDNA. Supplied under manufacturer part number 120G0198, HS code 8414.30, country of origin France.

Product type

Scroll chillers

Product group

Refrigeration compressors

Stroke capacity

116.9 m³/h

Coolant

R410A

Type designation

VZH 117 CGDNA

Height

542 mm

Length

243 mm

Width

243 mm

Carbon footprint (EPD)

375.6881 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

84143081

HS code

8414.30

Manufacturer part number

120G0198

EAN

5702424543815

Net weight

64.922 Kilogram

Type

VZH117

Approval

CE

Brand technique

Scroll compressor

Capacity Control

Inverter

CE mark

Yes

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.1

Colour

Blue

Compressor power supply [V]

380-480/3/50-60

Configuration code

Single

Connection type

Brazed

Description

VZH117CG

Diameter [mm]

243 mm

Discharge connection height [mm]

508 mm

Discharge connection pipe size [in]

7/8 in

Discharge connection size [in]

7/8 in

Drawing number

8560099

Economizer

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a)-I

Family

VZH

Fitting standard

ODF

Frequency [Hz]

25 - 100

Gauge port HP

None

Gauge port LP

Schrader

Glass mounting

Installed on OEQ

High Side TS Max

150 °C

High Side TS Min

-35 °C

High Side Volume

0.7 L

High value of nominal voltage at 50Hz [V]

480 V

High value of nominal voltage at 60Hz [V]

480 V

High value of voltage range at 50Hz [V]

528 V

High value of voltage range at 60Hz [V]

528 V

IDV

Yes

In scope of WEEE

No

IP protection class

IP54 (with cable gland)

Low Side TS Max

55 °C

Low Side TS Min

-35 °C

Low Side Volume

15.1 L

Low value of nominal voltage at 50Hz [V]

380 V

Low value of nominal voltage at 60Hz [V]

380 V

Low value of voltage range at 50Hz [V]

342 V

Low value of voltage range at 60Hz [V]

342 V

Manifold enabled

No

Max pressure (PS) - high side

48.7 bar

Max pressure (PS) - low side

33.3 bar

MMT

55 A

Model number

VZH117CGDNA

Motor protection

Motor protection by frequency converter

Mounting torque [Nm]

21 N-m

Network power supply [V/Ph/Hz]

380-415/3/50 460/3/60

Number of starts per hour [Max]

12

Oil charge [L]

4.1 L

Oil drain

None

Oil equalization

1-3/4" Rotolock

Oil level switch

None

Oil level switch port

Yes

Oil reference

160SZ

Oil type

POE

Packaging height [mm]

578 mm

Packaging length [mm]

355 mm

Packaging weight [Kg]

61 kg

Packaging width [mm]

455 mm

Packing quantity

1

Phase

3

Power connections

Screw 4.8 mm

REACH Candidate Strip substances

Lead (CAS no. 7439-92-1)

Refrigerant charge [kg] [Max]

8 kg

Refrigerants

R410A

RLA

44 A

Rotational speed at 50Hz [rpm]

3000 rpm

Rotational speed at 60Hz [rpm]

3600 rpm

Segment usage

Air conditioning

Shipped instructions

Installation instructions

Shipped mounting

Mounting kit with grommets, bolts, nuts, sleeves and washers

Shipped oil

Initial oil charge

Suction connection height [mm]

277 mm

Suction connection material

-

Suction connection pipe size [in]

1 3/8 in

Suction connection size [in]

1 3/8 in

Swept volume [cm3]

116.9 cm³

Technology

Scroll

Test dif [bar] [Max]

37 bar

Test HP [bar] [Max]

45 bar

Test LP [bar] [Max]

30.2 bar

Torque earth [Nm]

4 N-m

Torque power [Nm]

3 N-m

Total height [mm]

542 mm

UL mark

Yes

Viscosity [cP]

32 cP

HS Code

8414.30

• MPN 120G0198
