Product Description

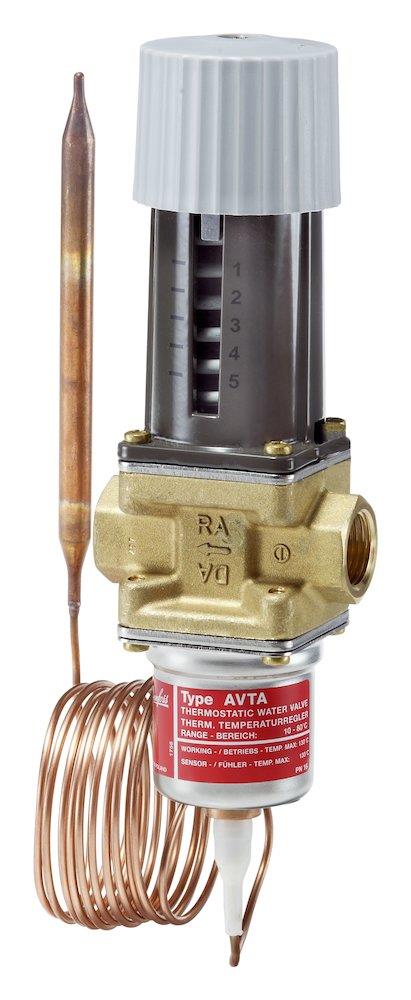

Danfoss AVTA 25 Thermostatic Valve. Regulating valves for water (Plumbing / Heat / Valves for heating and cooling systems). Principal data: setting temperature min 10 °C, setting temperature max 80 °C, kvs value 5.5 m³/h, dn dimension 25. Supplied under manufacturer part number 003N0109, EAN 5702423001415, HS code 8481.80, country of origin Slovenia.
Technical Specifications
- Product type
- Regulating valves for water
- Product group
- Heat
- Setting temperature min
- 10 °C
- Setting temperature max
- 80 °C
- Kvs value
- 5.5 m³/h
- DN dimension
- 25
- Media temperature max
- 130 °C
- Thread
- Rp 1"
- Working pressure max
- 16 bar
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 11.6926 kg CO2e per pcs
- Country of origin
- Slovenia
- Customs tariff code (EU CN)
- 84818051
- HS code
- 8481.80
- Manufacturer part number
- 003N0109
- VVS number
- 451005708
- EAN
- 5702423001415
- Net weight
- 1.437 Kilogram
- Type
- AVTA 25
- Approval
- EAC
- Body material
- Brass
- Cap. tube length fraction [in]
- 90 9/16 in
- Capillary tube gland Int/Ext
- Internal
- Capillary tube gland size [in]
- 1/2
- Capillary tube gland standard
- ISO 228-1
- Capillary tube gland type
- G
- Capillary tube length [mm]
- 2300 mm
- Charge type
- Adsorption
- China RoHS compliance
- Yes
- Connection Internal/External
- Internal
- Connection size [in]
- 1
- Connection standard
- ISO 228-1
- Connection type
- G
- Cv value [gal/min]
- 6.4 gal/min
- Differential pressure [bar] [max]
- 10 bar
- Differential pressure [bar] [min]
- 0 bar
- Differential pressure [psi] [max]
- 145 psi
- Differential pressure [psi] [min]
- 0 psi
- EU RoHS compliance
- Out of scope
- Flow direction indicator
- Embossed 1-way arrow
- Kv value [m³/h]
- 5.5 m³/h
- Max. pressure on sensor [bar]
- 25 bar
- Max. pressure on sensor [psig]
- 362.6 psig
- Max. sensor temperature [°C]
- 130 °C
- Max. sensor temperature [°F]
- 266 °F
- Max. test pressure [bar] Pe
- 25 bar
- Max. test pressure [psig]
- 362.6 psig
- Max. Working Pressure [bar]
- 16 bar
- Max. Working Pressure [psig]
- 232 psig
- Media
- Neutral media
- Medium temperature range [°C] [max]
- 130 °C
- Medium temperature range [°C] [min]
- -25 °C
- Medium temperature range [°F] [max]
- 266 °F
- Medium temperature range [°F] [min]
- -13 °F
- Opening configuration
- Opens on rising sensor temp.
- Orifice size [mm]
- 25 mm
- Orifice size fraction [in]
- 1 in
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Sensor size (Ø x L) [in]
- 3/8 x 5 29/32 in
- Sensor size (Ø x L) [mm]
- 9.5 x 150 mm
- Temperature range [°C] [max]
- 80 °C
- Temperature range [°C] [min]
- 10 °C
- Temperature range [°F] [max]
- 176 °F
- Temperature range [°F] [min]
- 50 °F
